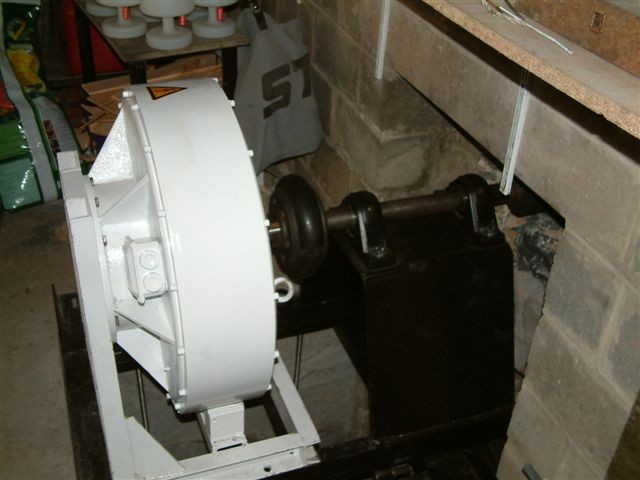

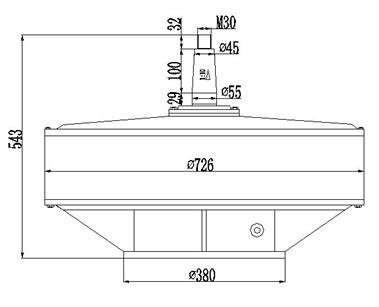

Description
• generator type: synchronous permanent magnet 3 phase AC
• magnetic steel material:38SH NdFeB • class of insulation:B
• housing material: cast iron/ aluminium • shaft material: 45# steel
• rated rotate speed:50 RPM
• rated voltage: 48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
• grade of protection: IP54 • weight:235kg(cast iron) /160kg(aluminium)
• start up torque: 14.7Nm(aluminium)
• rated torque at rated speed:889Nm
|
3KW50RPM 220V Vertical Generator Design Data |
|||||||||||
|
rpm |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
|
no-load voltage（Vac） |
35 |
70 |
104 |
140 |
174 |
209 |
244 |
279 |
314 |
349 |
384 |
|
load voltage (Vac) |
24 |
48 |
71 |
95 |
118 |
140 |
161 |
182 |
203 |
222 |
241 |
|
load current (A) |
0.8 |
1.7 |
2.5 |
3.4 |
4.2 |
5.1 |
5.8 |
6.5 |
7.2 |
7.9 |
8.6 |
|
output power(W) |
34 |
138 |
312 |
550 |
849 |
1203 |
1605 |
2050 |
2530 |
3040 |
3572 |
|
torque (Nm) |
139 |
238 |
335 |
428 |
548 |
600 |
683 |
757 |
826 |
889 |
947 |
Remark: The design load electric resistance of above data is 16.1 Ω.
