Description
Small hydro turbine generator r, We offer various kinds of small hydro turbine geenrator from 0.1KW-3000KW(vertical and horizontal), speed from 20rpm-6000rpm,
Please contact us for more detail informations.

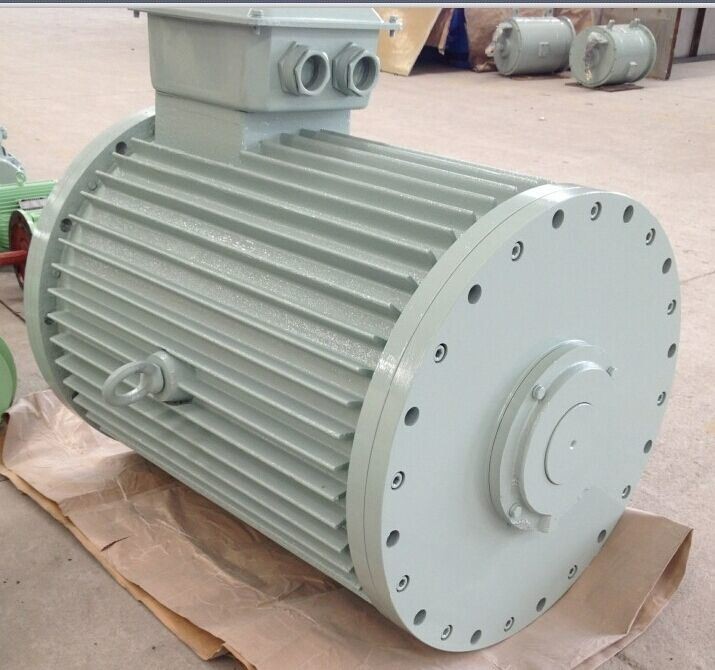

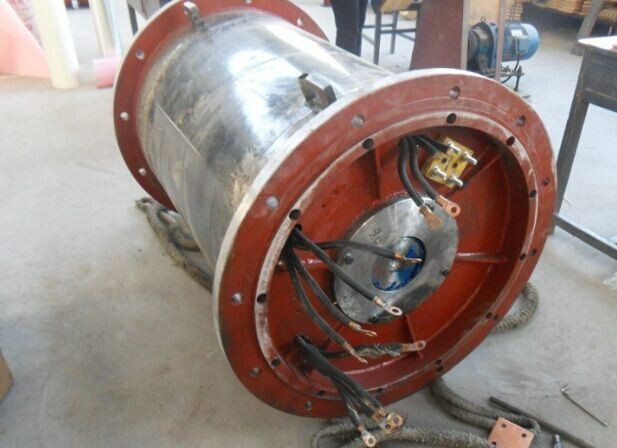

Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 12 kw | 400V | 250rpm | 24 | 50Hz | 460Nm | 16.9A | 93.8% | 260kg |
| 24 kw | 400V | 500rpm | 12 | 50Hz | 460Nm | 34A | 93.8% | 260kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 15 kw | 400V | 214rpm | 28 | 50Hz | 670Nm | 21A | 93.8% | 320kg |
| 30 kw | 400V | 428rpm | 14 | 50Hz | 670Nm | 42A | 93.8% | 320kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 20 kw | 400V | 187.5rpm | 32 | 50Hz | 1020Nm | 29A | 93.8% | 420kg |
| 40 kw | 400V | 375rpm | 16 | 50Hz | 1020Nm | 58A | 93.8% | 420kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 30 kw | 400V | 187.5rpm | 32 | 50Hz | 1530Nm | 43A | 93.8% | 720kg |
| 60 kw | 400V | 375rpm | 16 | 50Hz | 1530Nm | 86A | 93.8% | 720kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 35 kw | 400V | 125rpm | 48 | 50Hz | 2700Nm | 51A | 93.8% | 1260kg |
| 70 kw | 400V | 250rpm | 24 | 50Hz | 2700Nm | 102A | 93.8% | 1260kg |
| 105 kw | 400V | 375rpm | 16 | 50Hz | 2700Nm | 153A | 93.8% | 1260kg |
| 140 kw | 400V | 500rpm | 12 | 50Hz | 2700Nm | 204A | 93.8% | 1260kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 80 kw | 400V | 125rpm | 48 | 50Hz | 6120Nm | 116A | 93.8% | 1680kg |
| 160 kw | 400V | 250rpm | 24 | 50Hz | 6120Nm | 232A | 93.8% | 1680kg |
| 200 kw | 400V | 375rpm | 16 | 50Hz | 6120Nm | 288A | 93.8% | 1680kg |
| 320 kw | 400V | 500rpm | 12 | 50Hz | 6120Nm | 461A | 93.8% | 1680kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 100 kw | 400V | 125rpm | 48 | 50Hz | 7650Nm | 144A | 93.8% | 2800kg |
| 200 kw | 400V | 250rpm | 24 | 50Hz | 7650Nm | 288A | 93.8% | 2800kg |
| 300 kw | 400V | 375rpm | 16 | 50Hz | 7650Nm | 432A | 93.8% | 2800kg |
| 400 kw | 400V | 500rpm | 12 | 50Hz | 7650Nm | 576A | 93.8% | 2800kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 150 kw | 400V | 125rpm | 48 | 50Hz | 11500Nm | 216A | 93.8% | 3900kg |
| 300 kw | 400V | 250rpm | 24 | 50Hz | 11500Nm | 432A | 93.8% | 3900kg |
| 450 kw | 400V | 375rpm | 16 | 50Hz | 11500Nm | 648A | 93.8% | 3900kg |
| 600 kw | 400V | 500rpm | 12 | 50Hz | 11500Nm | 864A | 93.8% | 3900kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 200 kw | 400V | 125rpm | 42 | 50Hz | 15300Nm | 288A | 93.8% | 5200kg |
| 600 kw | 400V | 375rpm | 14 | 50Hz | 15300Nm | 864A | 93.8% | 5200kg |
