Description
| oduct name:Low speed high torque permanent magnet direct drive motor for Cement industry elevator (bucket elevator)hoist | |
| Item: | |
| Details: | |
|

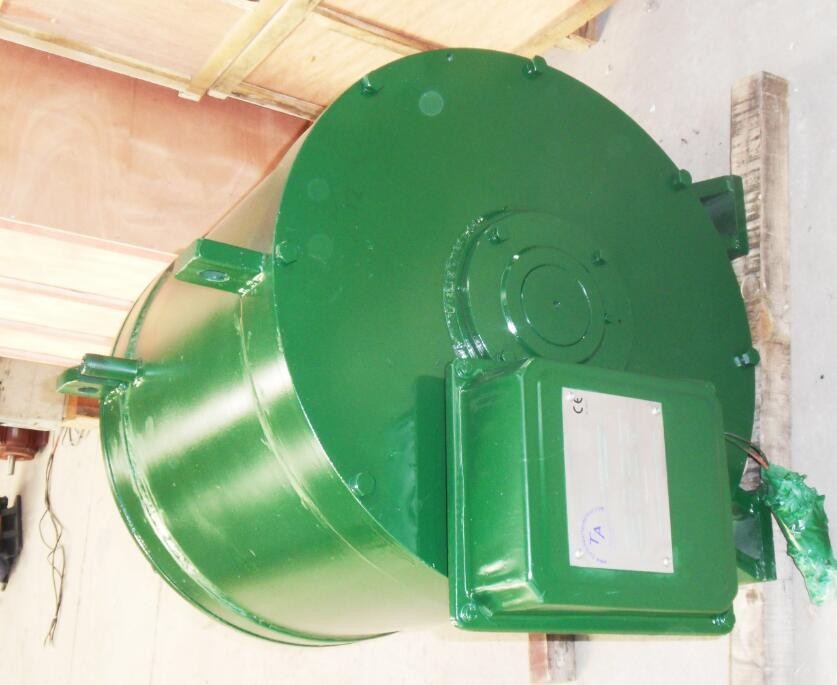

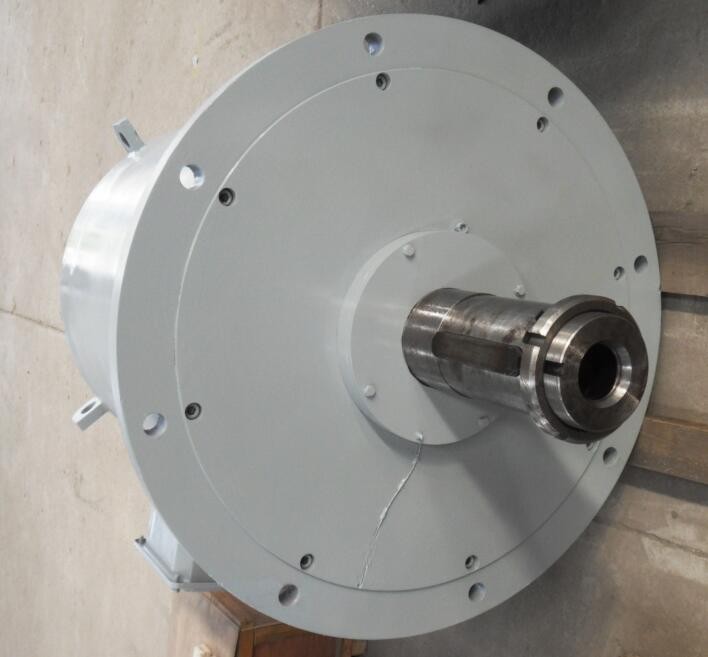

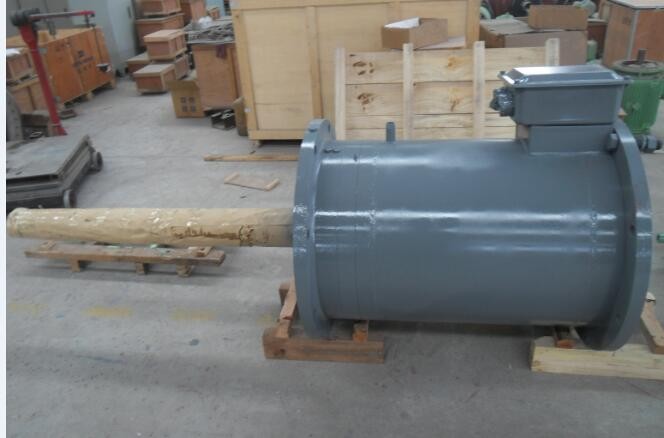

TYDT series permanent magnet direct drive motors are special permanent magnet direct drive motors developed based on the load characteristics of the elevator (bucket elevator) in the cement industry, combined with our latest research and development achievements. The frequency range of this model motor is 5 ~ 25Hz; the rated voltage is 380V; the insulation level is F; the cooling method used by the motor is natural air cooling; the motor protection level is IP54; Provisions. The base of TYDT series permanent magnet direct drive motor is welded by steel plates, and grease-lubricated rolling bearings are used. The iron core of the motor coil is impregnated with vacuum pressure to make the winding have good insulation performance and reliable moisture resistance. The permanent magnet of TYDT series permanent magnet direct drive motor uses 180 ºC temperature-resistant high-performance neodymium-iron-boron rare earth permanent magnet material to achieve low-speed and large-torque power transmission. The motor uses a variable frequency control system in the application of elevators (bucket elevators) Remove the reducer in the original motor system and drive the pinion directly. It has the advantages of compact structure, large starting torque, high efficiency, stable operation, low noise, safety and reliability, and easy installation, etc., to achieve maximum maintenance-free system. The TYDT series permanent magnet direct drive motor changes the original traditional system, removes the intermediate links, eliminates the reducer, simplifies the traditional chain of the system, and improves the overall traditional efficiency of the elevator system. Compared with the characteristics between the re-efficiency and power factor and load factor of TYDT series permanent magnet direct drive motor and asynchronous motor. |
