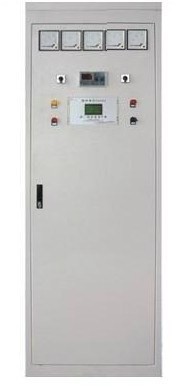

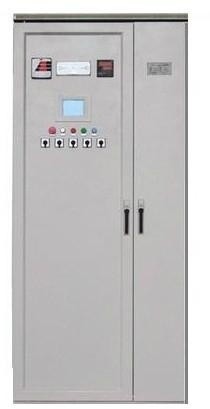

This series of products are suitabl for excitation and Interconnection control of low-voltage generator of 800KW or below. It has relatively high technology and quality. This product can run Stably. The main functions of this product produce excitation of low- voltage water turbin -generator set, synchronization and Interconnection control, protection and calculation so as to meet Interconnection requirements of low voltage generator set well.
PARTICULAR INFO I, MAIN PERFORMANCE AND CHARACTERISTICS Controllable silicon or Rotation excitation component and interconnection control component Are integrated into one cabinet with a much compact structure; Automatic / manual on-off functions; Microcomputer automatic Synchronization device is used for interconnection (can choice Dimlight manual synchronization); Over-current, under-voltage and Over - voltage protection, users can use microcomputer protection Device if it is needed; Excitation part conforms to the Requirements of G 10585-89: Fundamental requirements of excitation Systems for medium and small synchronous machines; Simple to Install and operate, convenience to maintain and run reliably. II, DEMONSTRATION OF MODELS Product type Rectification Method Protection Method Breaker far/near FKL-301 single-phase bridge Routine relay DW15 On-site FKL-303 single-phase bridge Microcomputer Protection DW17(ME) remote control FKL-305 rotation single-phase Bridge routine relay DW15 On-site FKL-307 Rotation single-phase Bridge Microcomputer protection DW17(ME) remote control Instructions: If dry type excitation transformer is included, the Ones with a capability below 20kVA should be put in panel. III, ORDER INFORMATION, Generator model and parameter(include excitation Parameters), Other specific requirements
