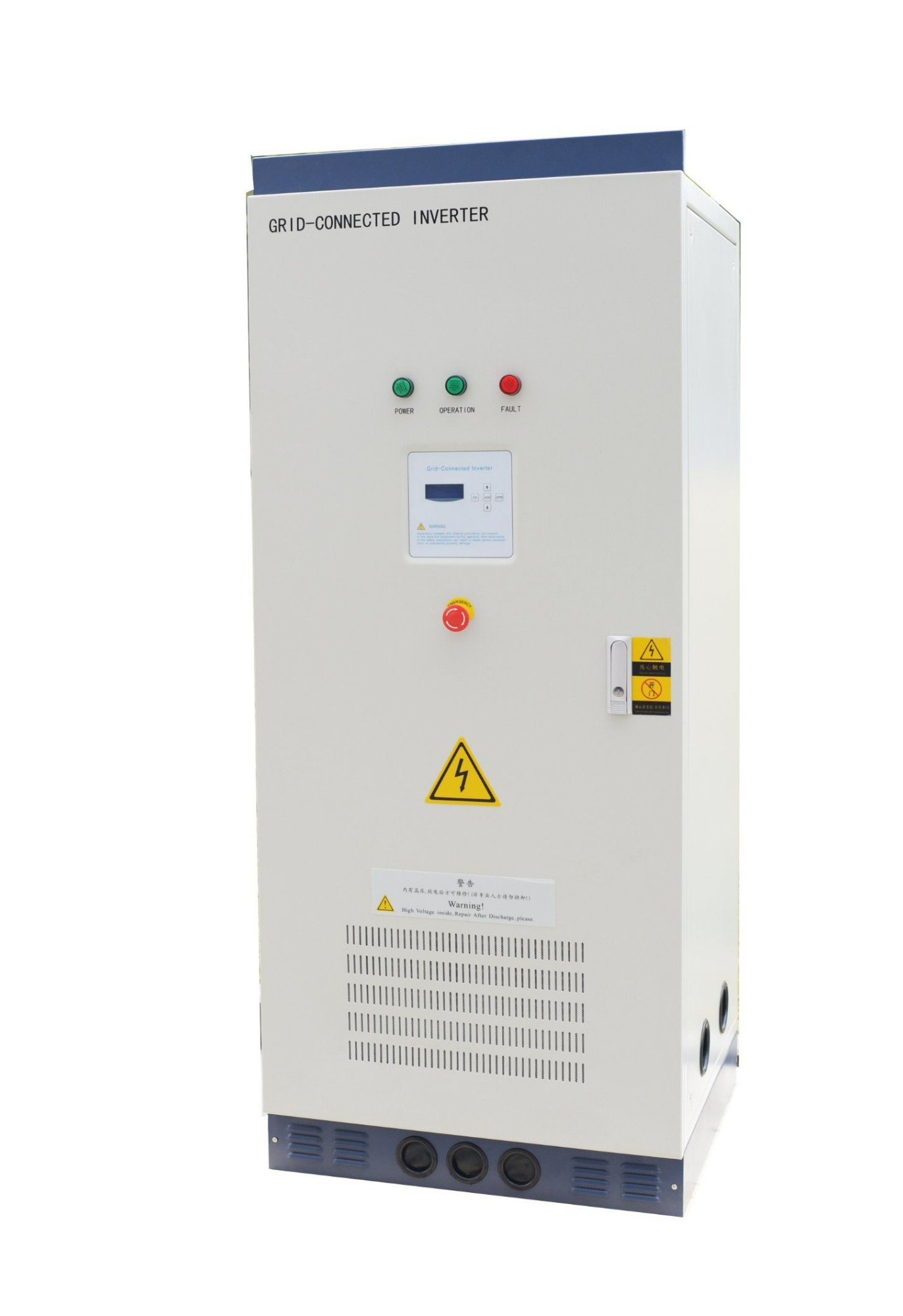

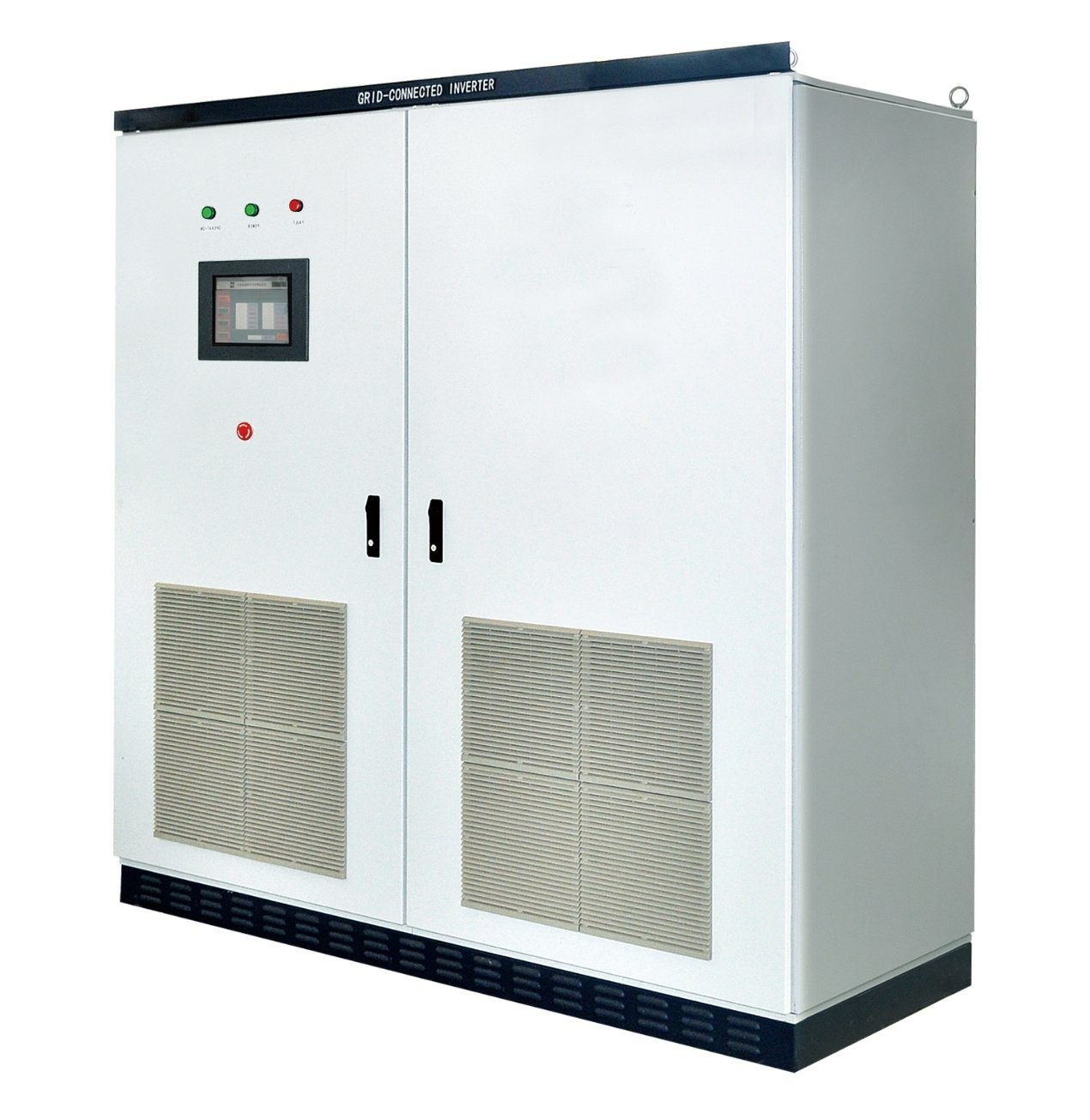

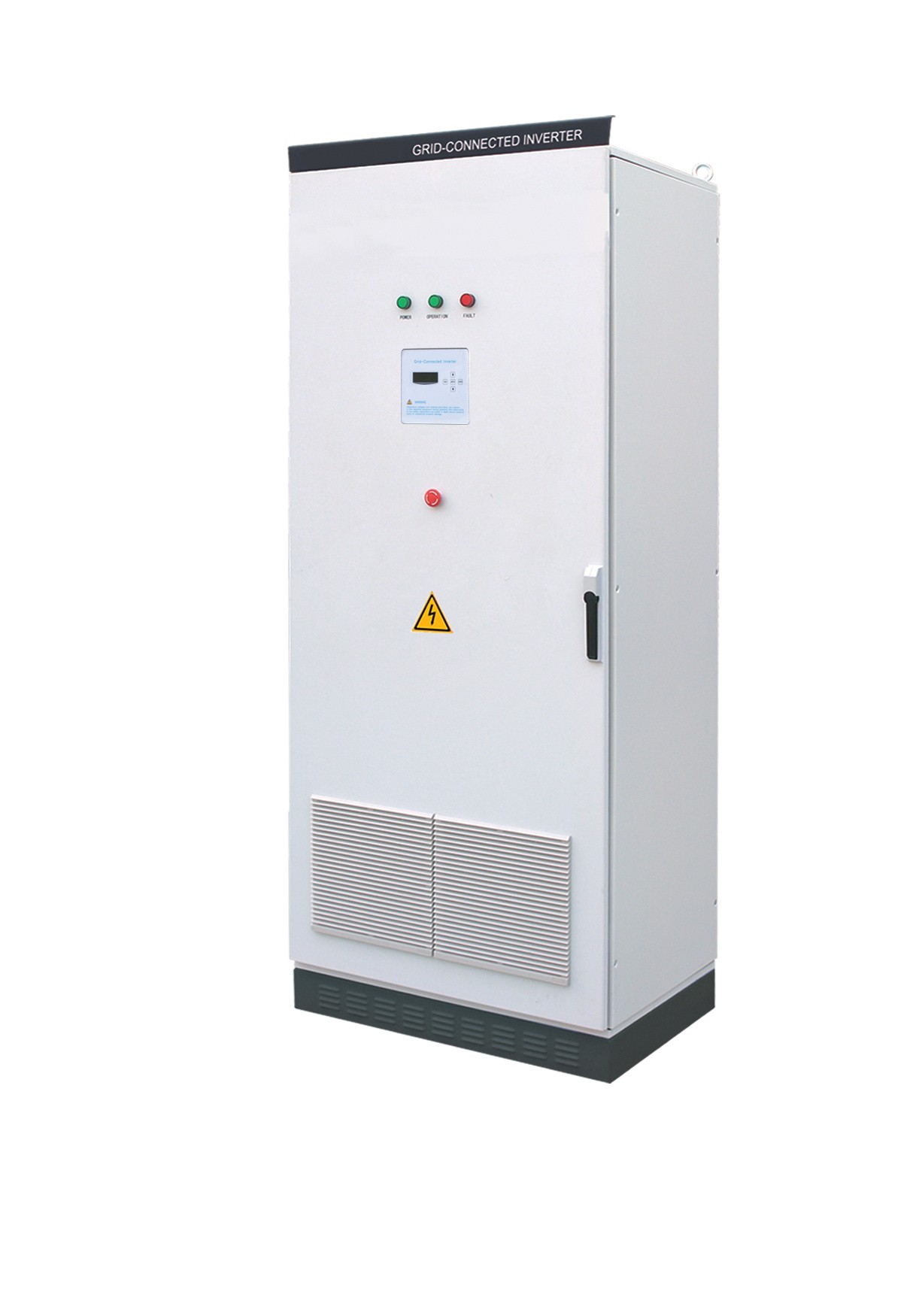

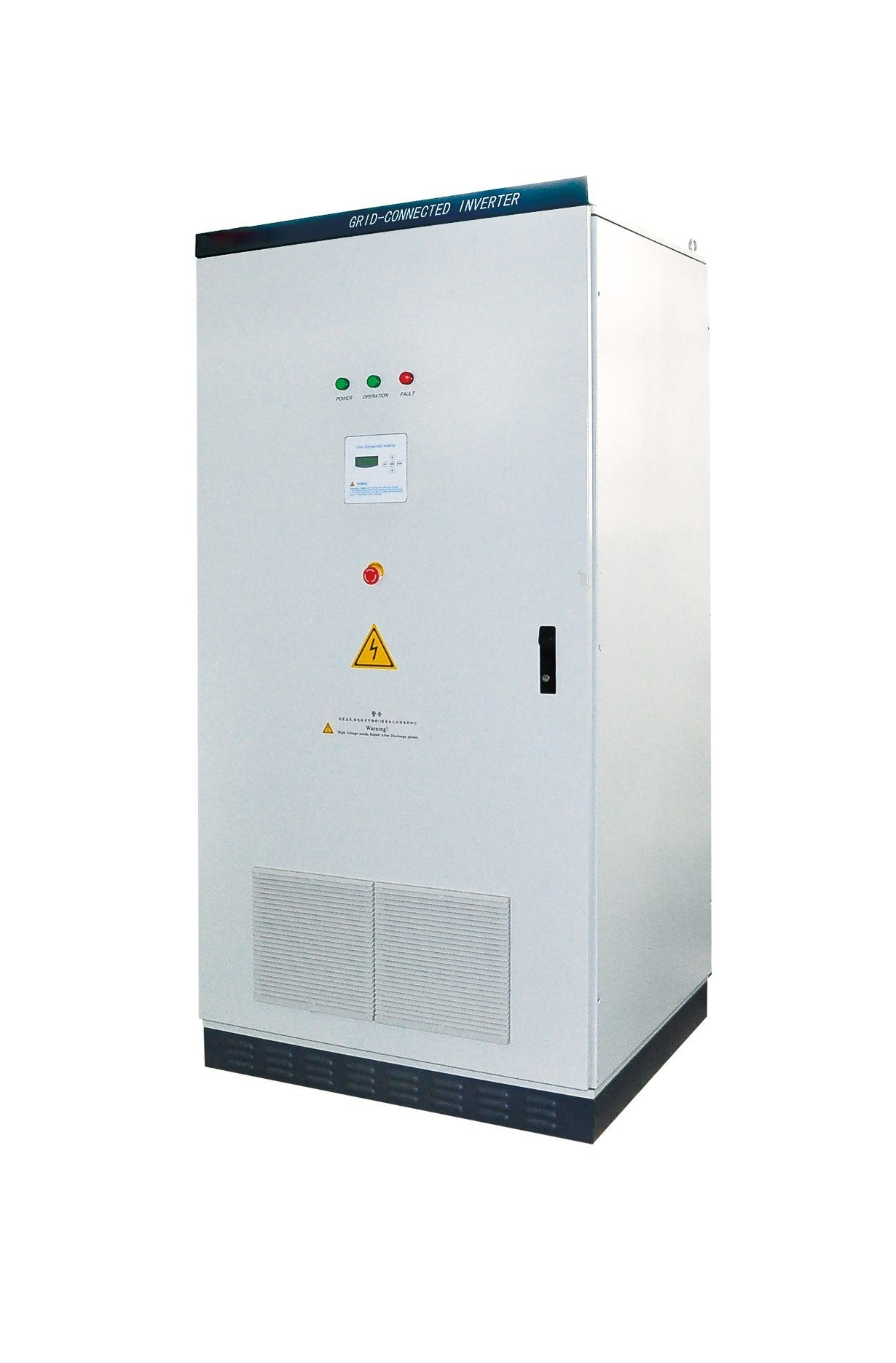

Description
1,Bi-directional inverter, maintain the balance of power system, to ensure the quality of load power supply
2,It can be long term running in110% rated output power .
3,On/off grid running function: The PCS can work in on /off grid state, and the two states can be switched automatically.
4,With the parallel function, easy to expension.
5,Suit for many kinds of battery, with the floating, constant current, constant voltage, constant power and so on many kinds of charging and discharging mode.
6,The range of the DC input voltage is wide and the efficiency is high(96%)
7,With the R, L, C load 100% unbalanced three phase, it can supply the power for the nonlinear impact and motor load
8,With many kinds of communication port, including the internet, RS 485, CAN and so on.
9,High efficiency: can be 97.2% with the transformer.
10,Accept the scheduling: Can be scheduled by the grid.
11,With kinds of charging and discharging methord
12,Expansibility
13,With the active power and reactive power adjustable function
| Type | BNX-5KD | BNX-5KS | BNX-10KS | BNX-20KS | BNX-50KS | BNX-100KS | BNX-250KS | BNX-300KS | ||||||
| AC side parameter | ||||||||||||||
| Rated capacity | 5KW | 5KW | 10kW | 20kW | 50 kW | 100 kW | 250kW | 300KW | ||||||
| Overload | 5.5KW | 5.5KW | 11kW | 22 kW | 55 kW | 110 kW | 275kW | 330KW | ||||||
| On-grid charging mode | ||||||||||||||
| Rated grid voltage | 220Vac/380 Vac | |||||||||||||
| Grid voltage range | 310~450Vac | |||||||||||||
| Grid frequency | 50Hz/60Hz | |||||||||||||
| Total harmonic distortion(THD) | <3% | |||||||||||||
| Power factor | ≥0.99 | |||||||||||||
| Separated on-grid mode | ||||||||||||||
| Rated output voltage | 380 Vac | |||||||||||||
| Output voltage accuracy | <3% | |||||||||||||
| Output frequency | 50Hz/60Hz | |||||||||||||
| Output over-voltage | >450 Vac | |||||||||||||
| Output under-voltage | <310 Vac | |||||||||||||
| DC voltage range | ||||||||||||||
| Max DC power | 5.5kW | 5.5kW | 11kW | 22 kW | 55 kW | 110 kW | 275kW | 330KW | ||||||
| DC voltage range | 48-400Vdc | 196-400Vdc | 480Vdc-900Vdc | |||||||||||
| DC current ripple | <5% | |||||||||||||
| System | ||||||||||||||
| Max efficiency | 96.6% | |||||||||||||
| Temperature | -25~+60°C | |||||||||||||
| Humidity | 0~95%,non condensing | |||||||||||||
| Noise | <50dB | |||||||||||||
| Protection | Polarity inverse,short circuit,island efficiency.overheat,overload.ground fault protection | |||||||||||||
| Cooling method | Forced cooling | |||||||||||||
| Protect degree | IP20 | |||||||||||||
| Indication | Touching screen | |||||||||||||
| Communication | RS485(MODBUS protocol) | |||||||||||||
| W×D×H(mm) | 580*510*1350 | 540*500*860 | 580*515*1250 | 650*610*1560 | 800*600*2060 | 1000*800*2060 | 2000*800*2060 | 2000*800*2060 | ||||||
| Weight (kg) | 180 | 100 | 150 | 300 | 700 | 900 | 1300 | 1400 | ||||||
