30kw 50kw 100kw 200kw 10000rpm Brushless High Speed Permanent Magnet Generator Motor

high speed generator motor  , turbine generator motor  , industrial compressors motor  , oil and gas compressors motor  , HVAC compressors motor  , laser and fuel cell cooling systems Rail transit  , papermaking motor  , sewage treatment motor  , pharmaceuticals motor  , evaporation and crystallization motor  , waste heat power generation  , new energy vehicles motor  , turbine steam turbines generator  , gas turbines generation  , ORC generator system
Inquiry Send Email

Description

The motor speed, voltage, power can be customized according to the requirements, but its better to be no more than 15, 000 speed. The motor can be made as wind cooling or water cooling, AC or DC. The front cover of the motor could have flange front edge, the size and the output shaft can also be customized.
No. Parameter Units Data
1 Rated output power KW 30
2 Rated speed RPM 10000
3 Rated output voltage VAC 400
4 Rated current A 45
5 Efficiency at rated speed   >94.3%
6 Winding type   Y
7 Insulation   H class
8 Rated torque Nm 30
9 Start torque Nm <0.6
10 Temperature rise °C 90
11 Max.working temperature °C 130
12 Generator diameter mm See the drawing
13 Shaft diameter mm See the drawing
14 Housing material   Casting Iron
15 Shaft material   Steel
16 Bearing           SKF
17 Weight Kg 50

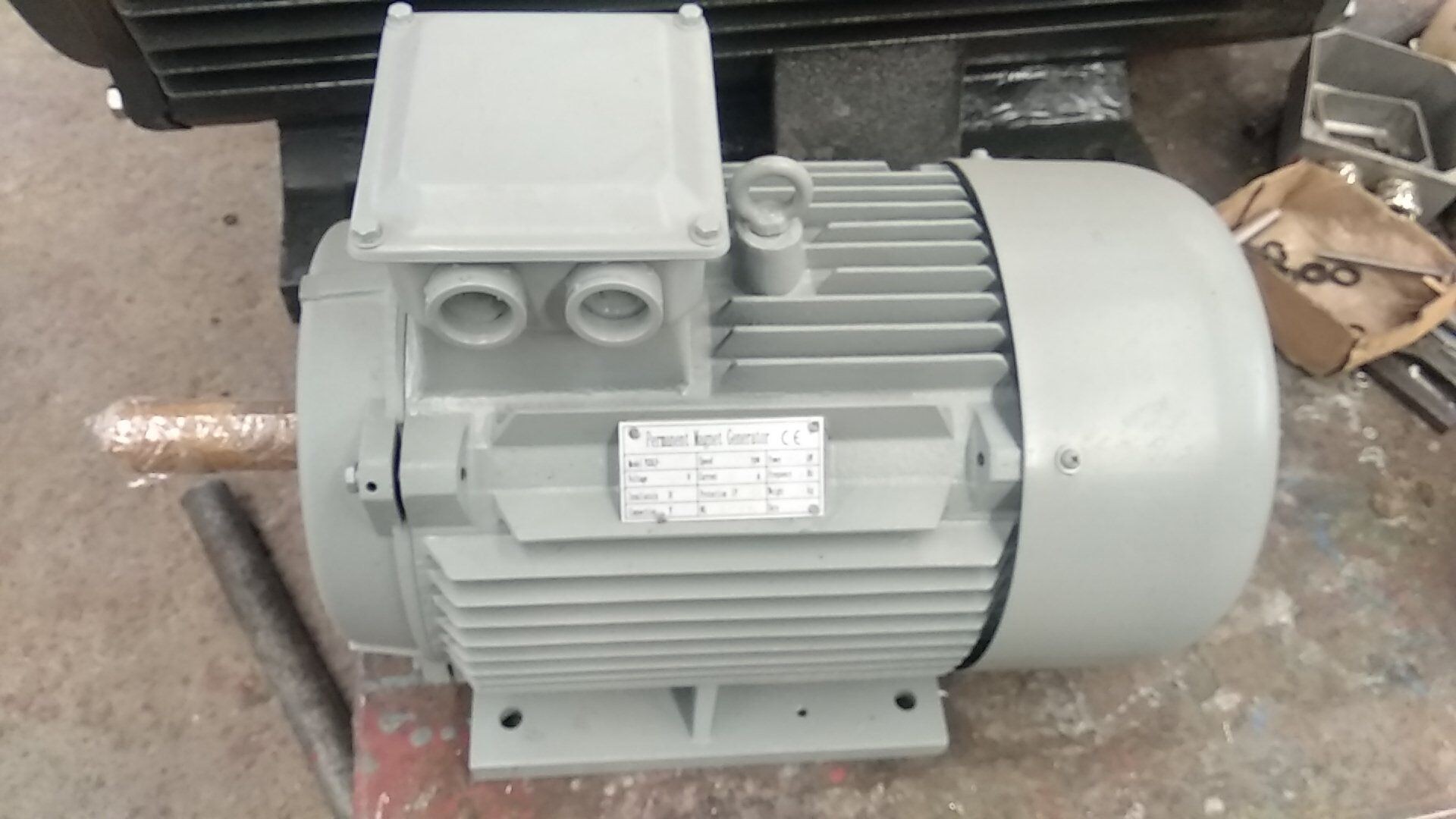

30kw 50kw 100kw 200kw 10000rpm Brushless High Speed <a href=https://www.xindagreenenergy.com/products-3-46-p.html target='_blank'>Permanent Magnet Generator</a> Motor

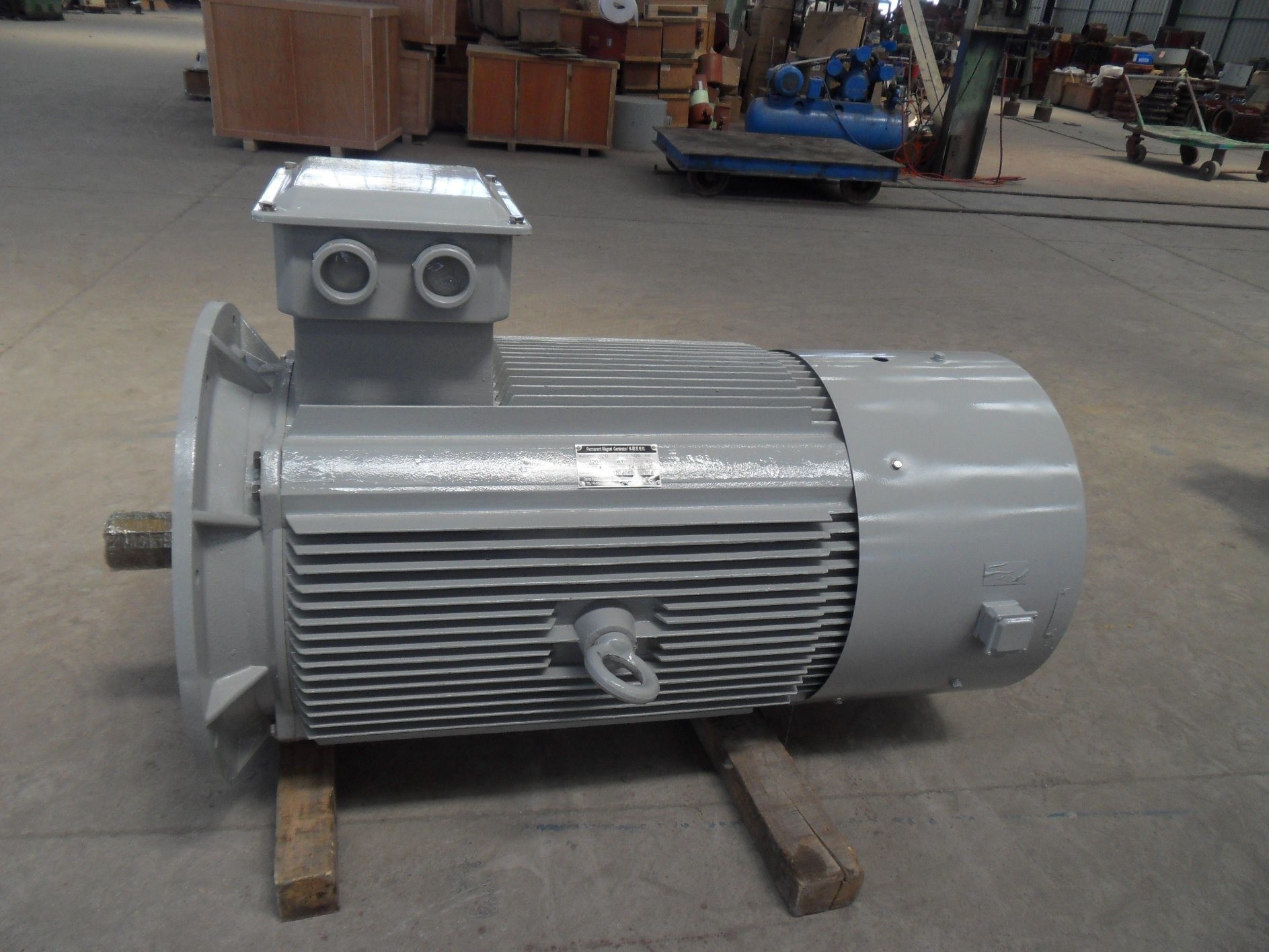

30kw 50kw 100kw 200kw 10000rpm Brushless High Speed Permanent Magnet Generator Motor

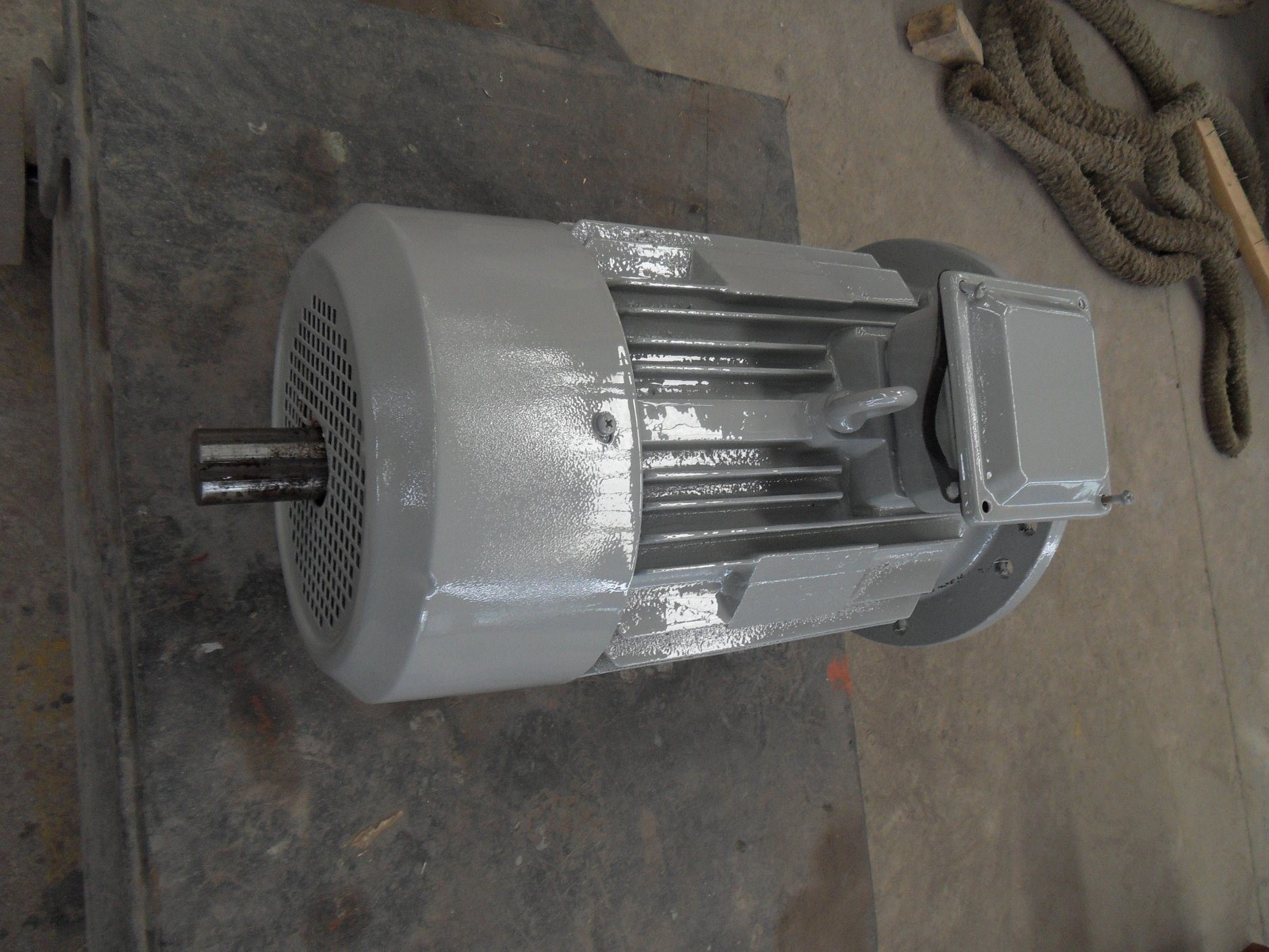

30kw 50kw 100kw 200kw 10000rpm Brushless High Speed Permanent Magnet Generator Motor
