Description

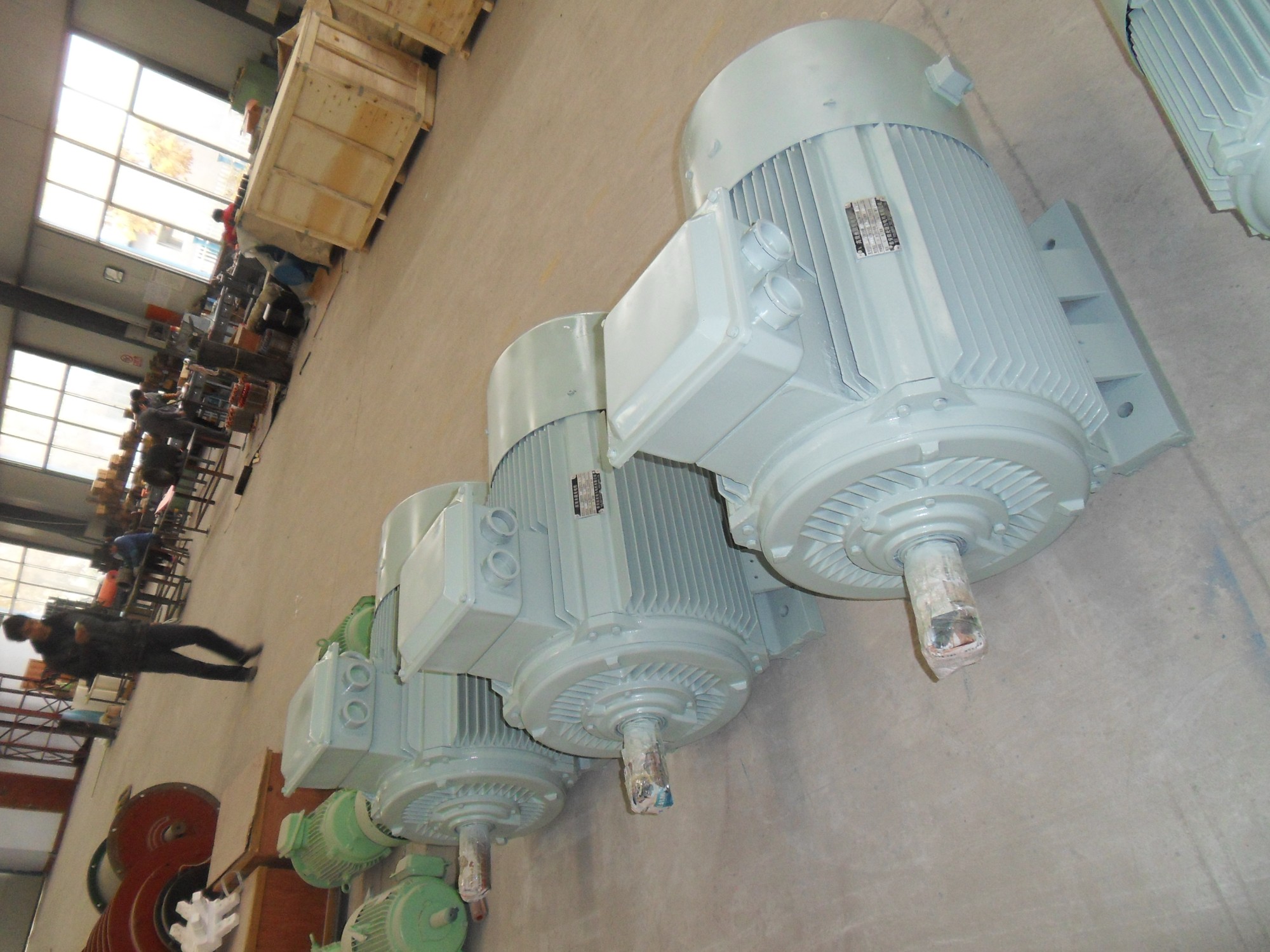

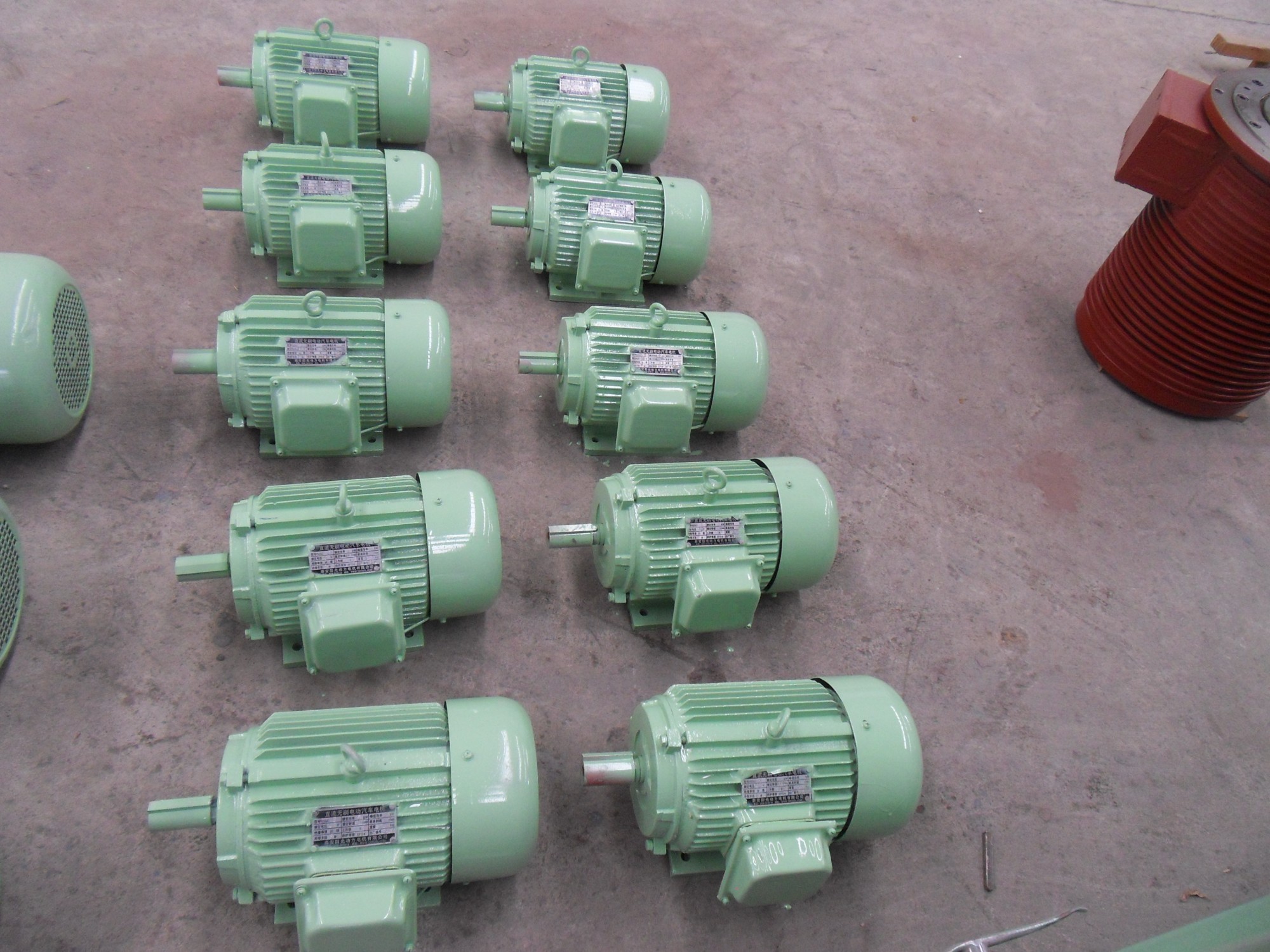

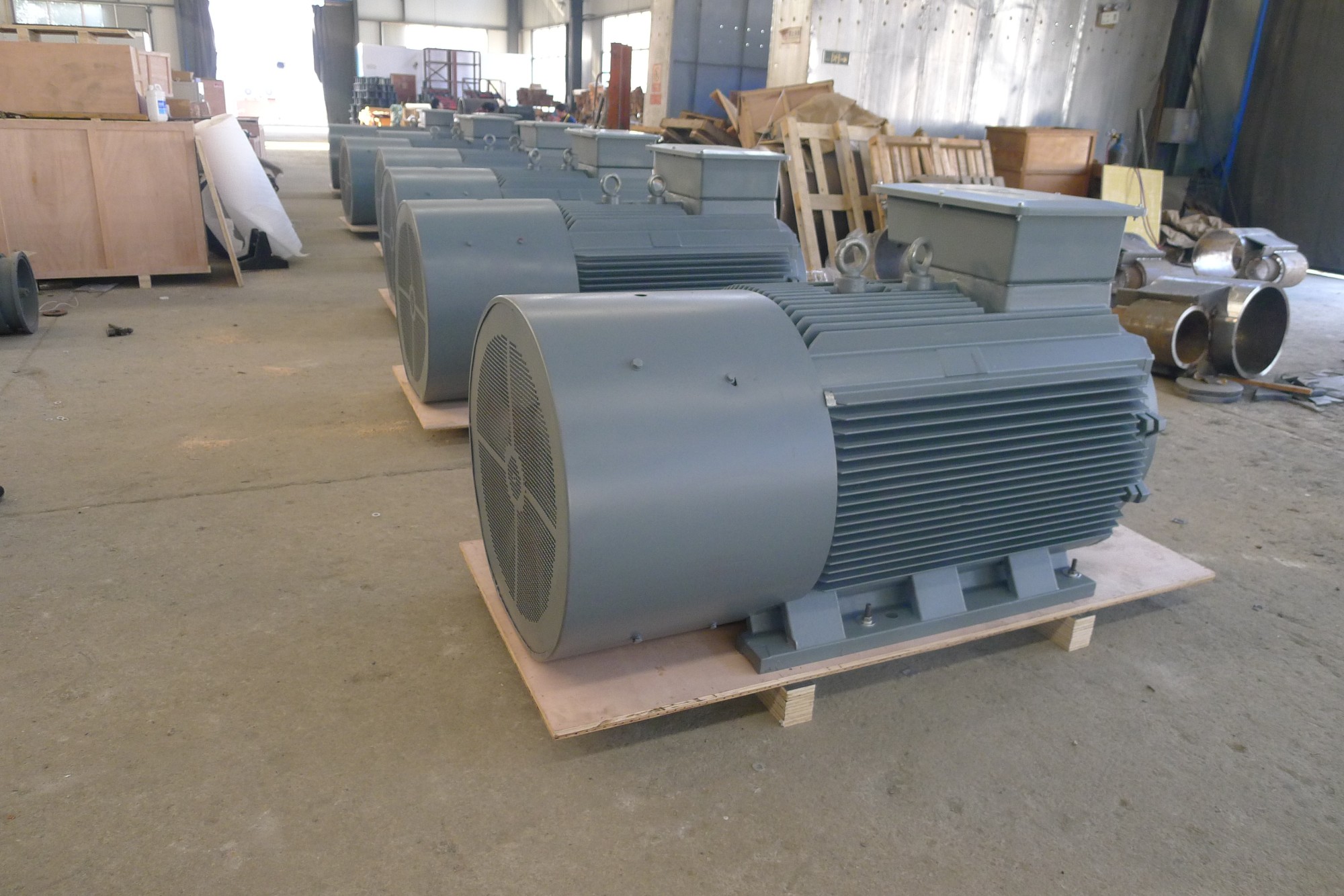

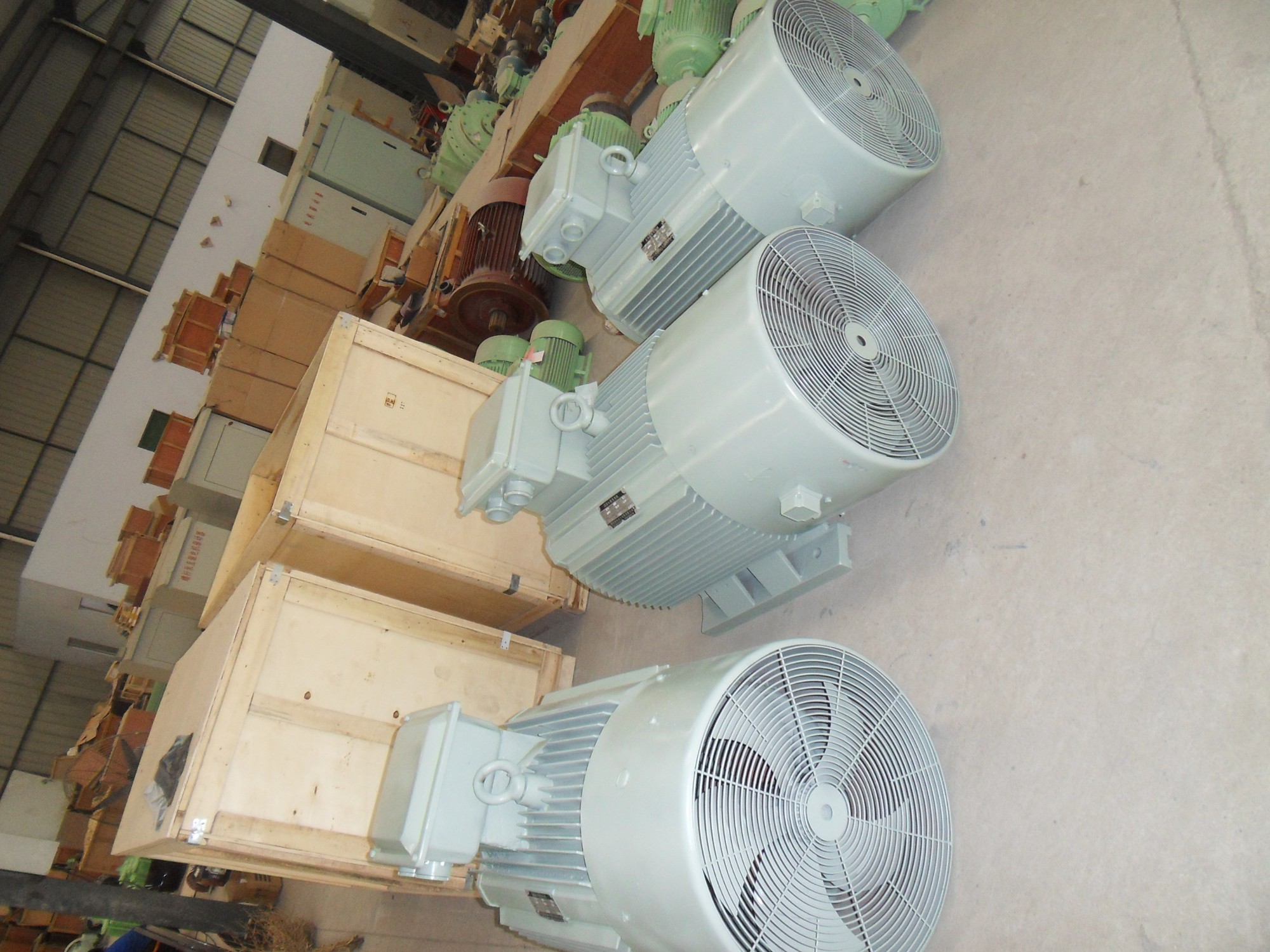

Diesel generator, gas generator, also can use for wind turbine and hydro turbine system, 1500rpm 1800rpm all available
| Power | Voltage | 50Hz Speed | Current | Power factor | Efficiency | Rated torque | Peak torque | Model | Length | Weight |
| 5.5 kw | 380V | 1500RPM | 9.1A | 0.98 | 93.5% | 35.0Nm | 65Nm | Y132-4M | 475 | 65kg |
| 7.5 kw | 380V | 1500RPM | 12.4A | 0.98 | 93.6% | 47.8Nm | 100Nm | Y132-4L | 515 | 76kg |
| 11kw | 380V | 1500RPM | 18.1A | 0.98 | 93.6% | 70.0Nm | 150Nm | Y132-4L | 515 | 83kg |
| 4.5 kw | 380V | 1000RPM | 9.1A | 0.98 | 93.5% | 35.0Nm | 65Nm | Y132-4M | 475 | 65kg |
| 5.5 kw | 380V | 1000RPM | 9.0A | 0.98 | 93.6% | 47.8Nm | 100Nm | Y132-4L | 515 | 76kg |
| 7.5kw | 380V | 1000RPM | 12.2A | 0.98 | 93.6% | 70.0Nm | 150Nm | Y132-4L | 515 | 83kg |
