Description

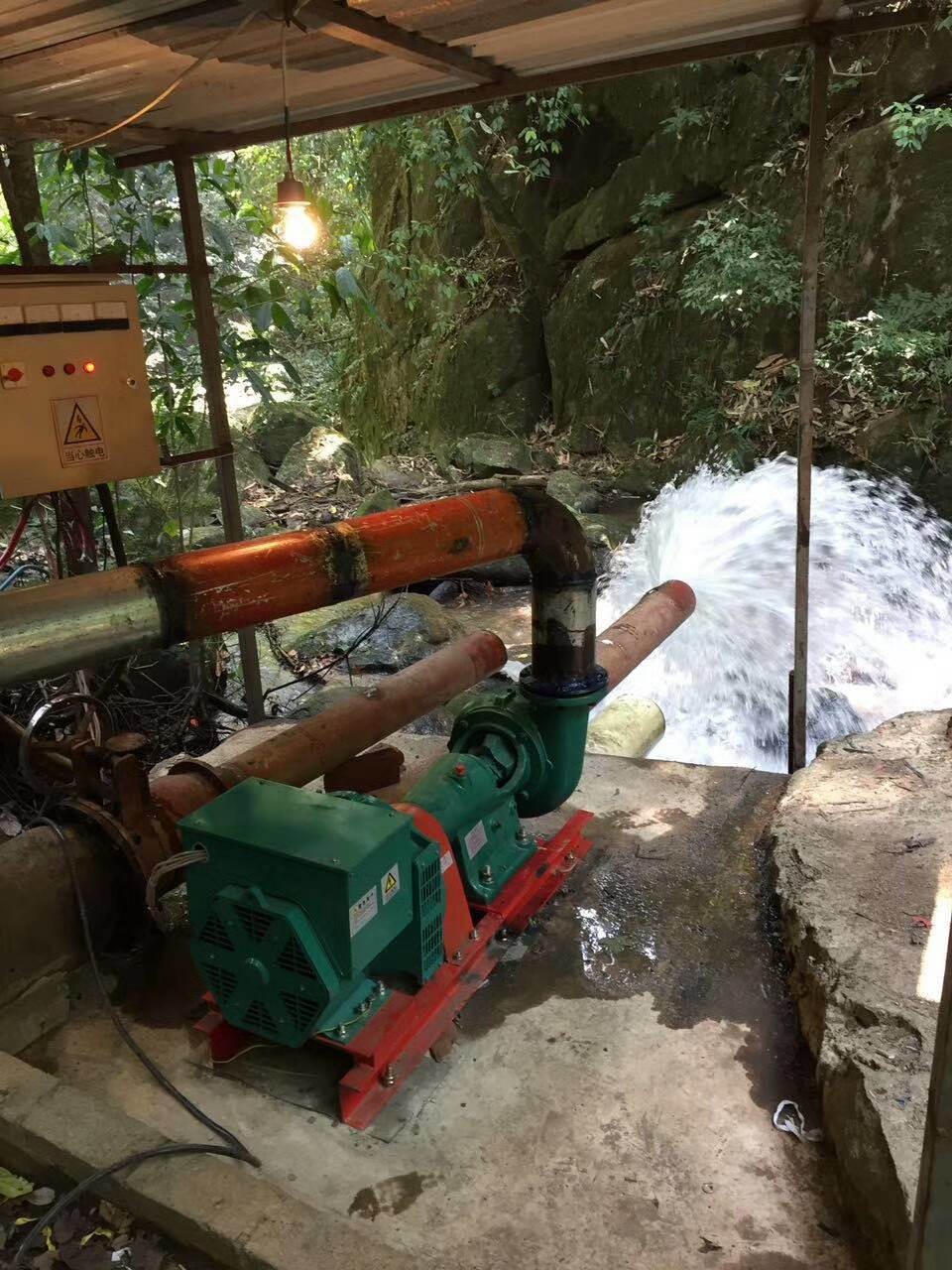

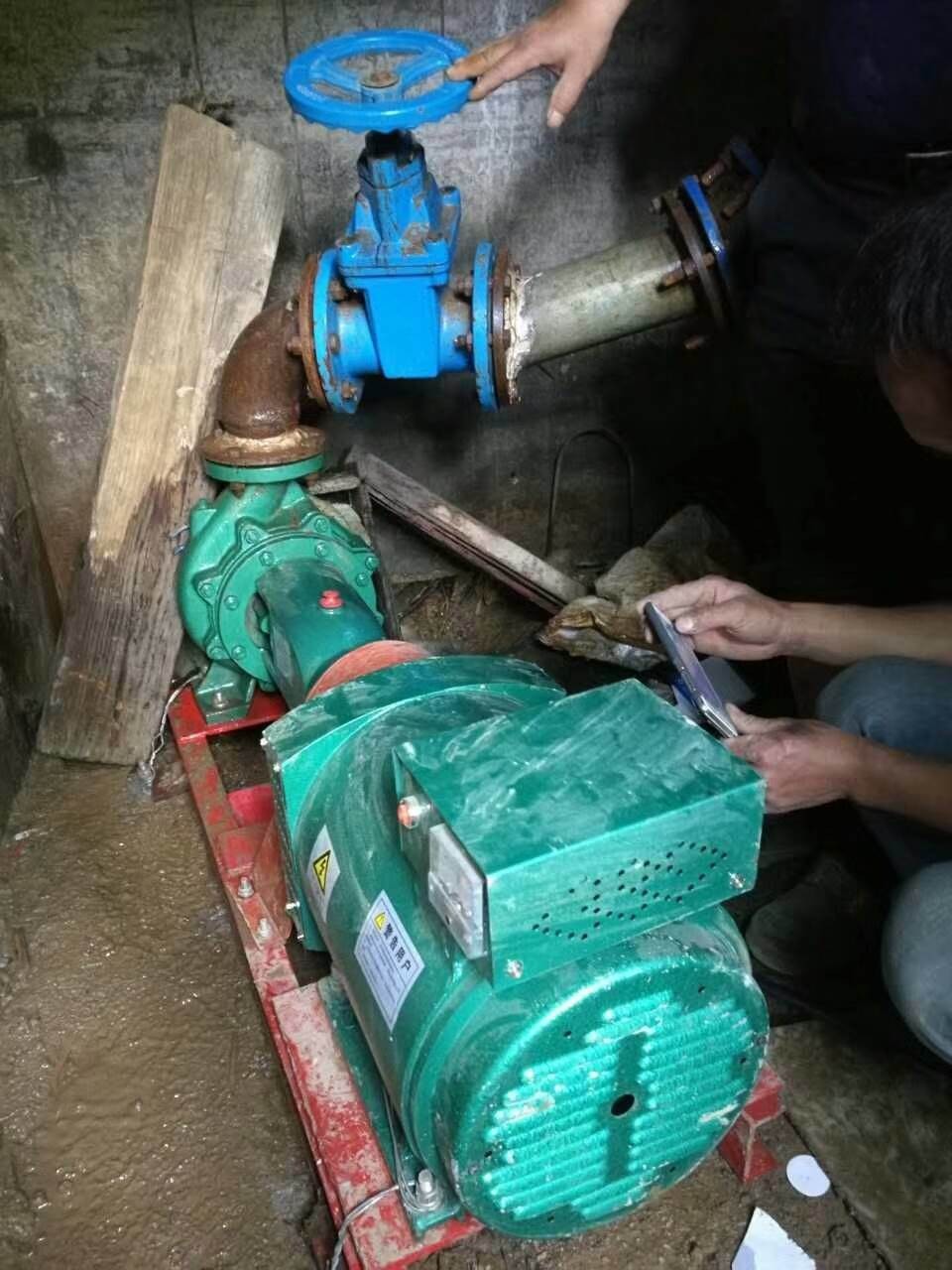

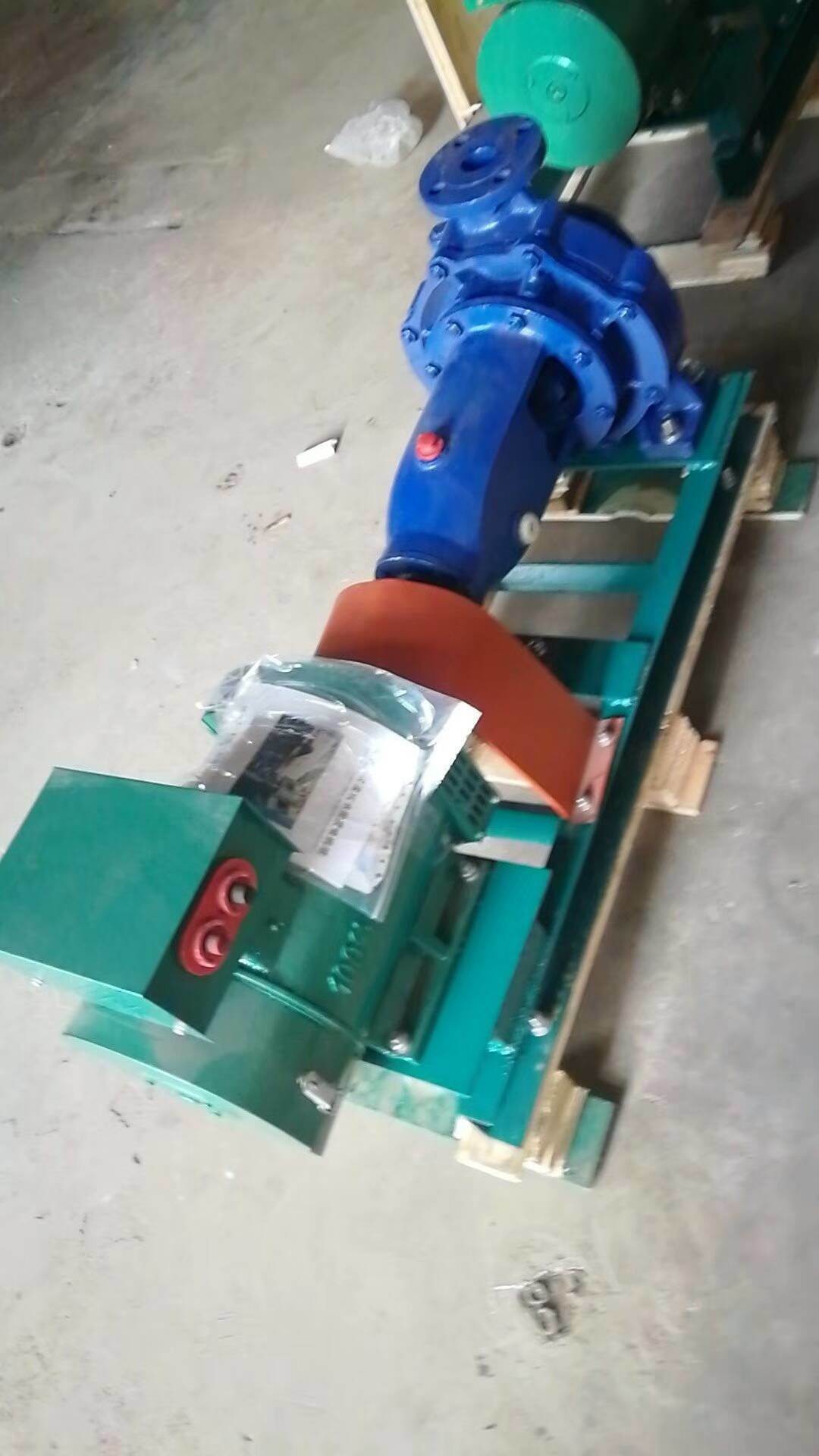

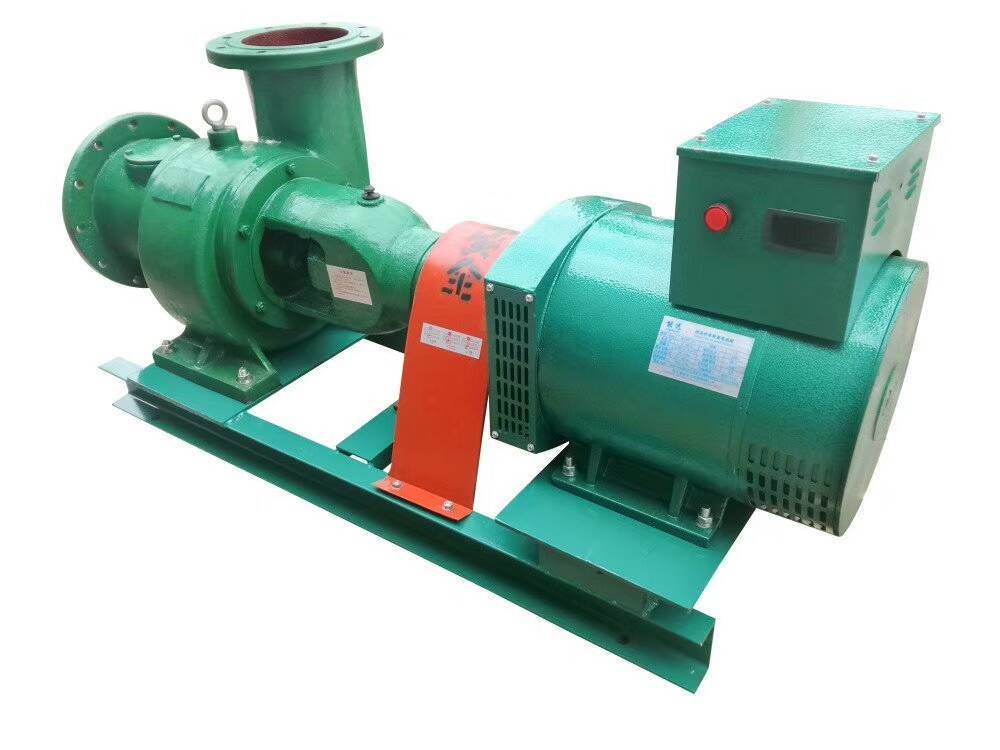

Water Pipe in pipe out hydro turbine
Advantage:
1.No need built draft tube and so on,just water pipe in and water directly pipe out,very esay for installation.
2. Turbine and generator separated, easy maintenance, replacement of wearing parts;
3. Turbine with 2 bearings, generator with 2 bearings, the structure is more reliable;
4. Turbine has an independent oil lubrication system, longer working life.
5. Turbine axial force balance device that can automatically balance the axial force, bearing long life.
6. Generator with automatic voltage regulator board, you can automatically adjust the output voltage to the rated voltage.
Advantage:
1.No need built draft tube and so on,just water pipe in and water directly pipe out,very esay for installation.
2. Turbine and generator separated, easy maintenance, replacement of wearing parts;
3. Turbine with 2 bearings, generator with 2 bearings, the structure is more reliable;
4. Turbine has an independent oil lubrication system, longer working life.
5. Turbine axial force balance device that can automatically balance the axial force, bearing long life.
6. Generator with automatic voltage regulator board, you can automatically adjust the output voltage to the rated voltage.
| Full flow water pipe diameter | Water head(m) | |||||
| 3m | 5m | 10m | 20m | 30m | 40m | |
| 65mm | 1.5kw | 2kw | 3kw | |||
| 80mm | 1.5kw | 2kw | 3kw | 5kw | ||
| 100mm | 2kw | 3kw | 5kw/6.5kw | 8kw/10kw | 12kw/15kw | |
| 150mm | 3kw | 5kw | 10kw | 15kw | 20kw | |
| 200mm | 3kw | 5kw | 10kw | 20kw | 30kw | 40kw |
| 250mm | 3kw | 5kw/8kw | 15kw | 30kw | 40kw/45kw | |
| 300mm | ||||||

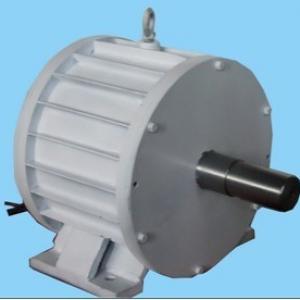

.124.1.jpg "50Hz Low Speed Hydro Permanent Magnet Generator (1kw -1000kw)")
