Description

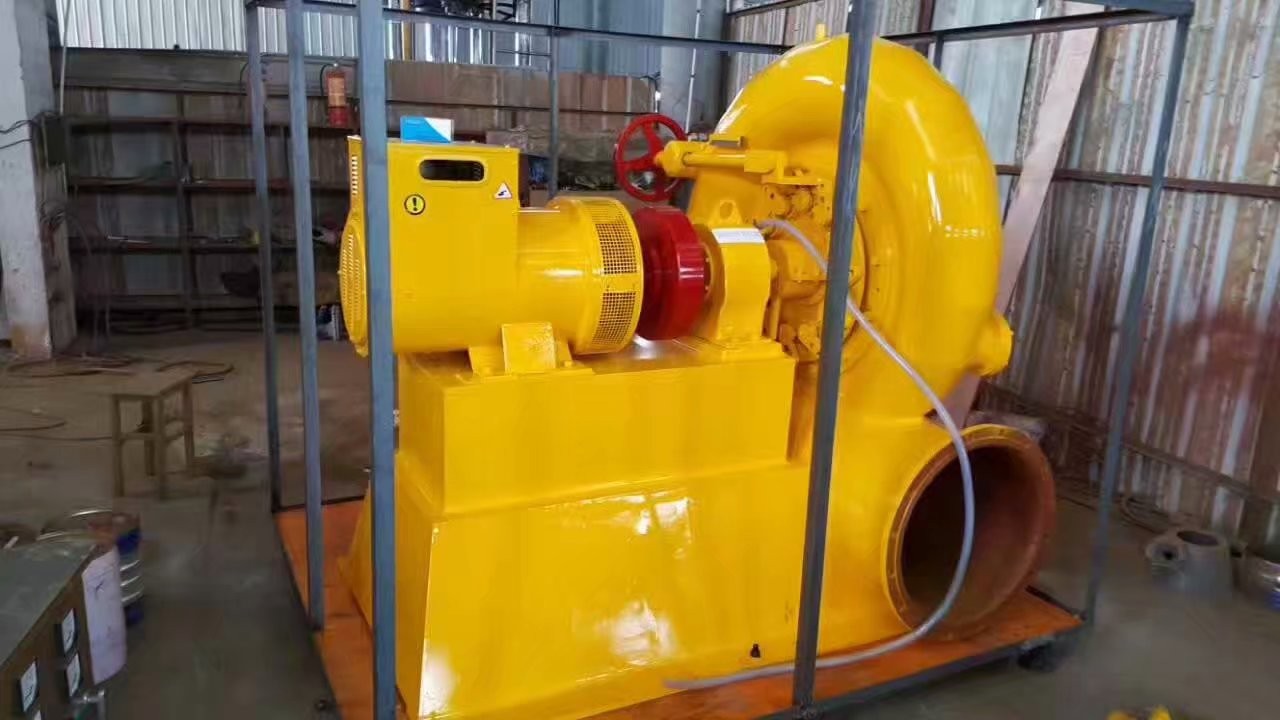

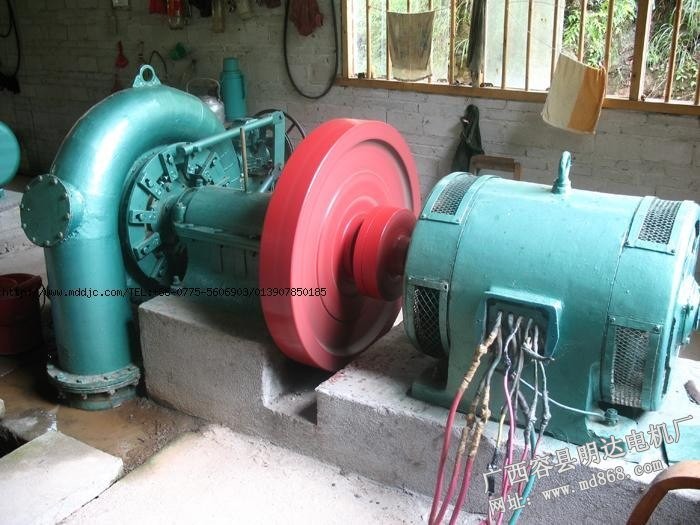

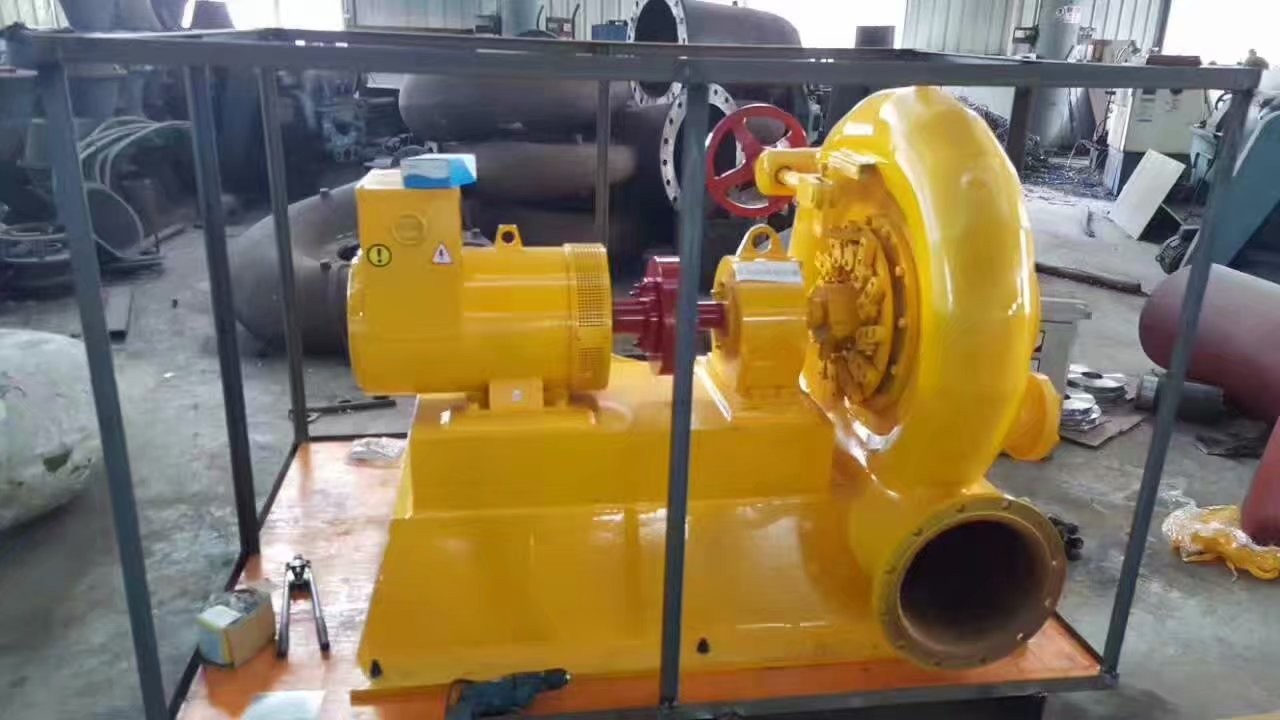

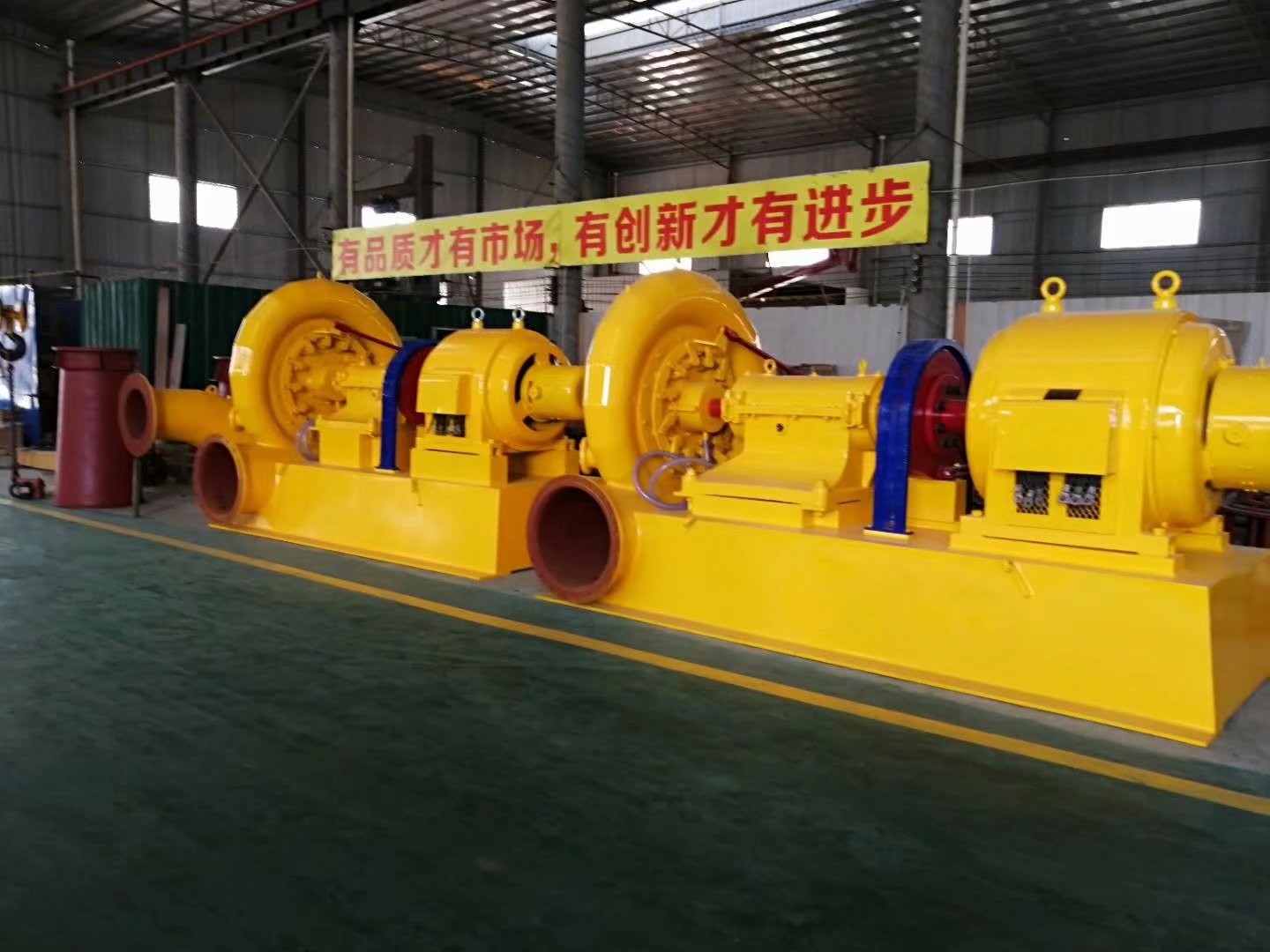

The Francis turbine has the widest range of applications among the various types of turbines available. Francis turbines generally are the most efficient solution for heads ranging from 10 to 300 meters. The runner design can be adapted to get the highest level of efficiency in its whole range of application.
| Turbine) |
|
|
|
|||||
|
|
|
|
|
|
|
|||
| Type | Head(m) | Discharge(m/s) | Speed(r/min) | Power(kw) | Efficency(%) | generator | governor | Valve |
| HL100-WJ-60 | 66.20 | 0.76 | 750.0 | 435 | 88.0 | SFW400-8 | BWT-150 | D941X-1.0,φ500 |
| 76.10 | 0.82 | 1000.0 | 540 | 88.6 | SFW500-6 | D941X-1.6,φ500 | ||
| 88.60 | 0.88 | 685 | 89.5 | SFW630-6 | BWT-300 | |||
| 104.60 | 0.96 | 874 | 89.0 | SFW800-6 | ||||
| 121.70 | 1.03 | 1085 | 88.0 | SFW1000-6 | Z945T-2.5,φ500 | |||
| HL100-WJ-71 | 70.80 | 1.10 | 750.0 | 686 | 89.5 | SFW630-8 | BWT-300 | D941X-1.6,φ600 |
| 83.60 | 1.20 | 874 | 89.0 | SFW800-8 | ||||
| 97.70 | 1.30 | 1084 | 87.3 | SFW1000-8 | ||||
| 111.40 | 1.38 | 1000.0 | 1345 | 89.0 | SFW1250-6 | BWT-600 | ||
| 130.50 | 1.50 | 1715 | 89.5 | SFW1600-6 | Z945T-2.5,φ600 | |||
| 151.50 | 1.61 | 2133 | 89.6 | SFW2000-6 | ||||
| HL100-WJ-84 | 77.40 | 1.61 | 600.0 | 1090 | 89.0 | SFW1000-10 | BWT-600 | D941X-1.6,φ800 |
| 88.90 | 1.73 | 750.0 | 1346 | 89.2 | SFW1250-8 | |||
| 104.30 | 1.87 | 1716 | 89.5 | SFW1600-8 | ||||
| 121.10 | 2.02 | 2130 | 89.8 | SFW2000-8 |
|
|||
| 141.80 | 2.19 | 1000.0 | 2675 | 88.0 | SFW2500-6 | BWT-1000 | Z945T-2.5,φ800 | |
| 164.30 | 2.35 | 3389 | 89.4 | SFW3200-6 |
|
|||
| HL100-LJ-100 | 82.90 | 2.37 | 600.0 | 1719 | 89.3 | SF1600-10 | BWT-600 | D941X-16,φ800 |
| 95.70 | 2.54 | 2134 | 89.4 | SF2000-10 | BWT-1000 | |||
| 111.70 | 2.75 | 2674 | 88.8 | SF2500-10 | ||||
| 130.10 | 2.97 | 750.0 | 3384 | 89.4 | SF3200-8 |
|
||
| 150.70 | 3.19 | 4219 | SF4000-8 | Z945T-2.5,φ800 | ||||
| 174.70 | 3.44 | 5231 | 88.8 | SF5000-8 | BWT-1800 |
|
||
| HL100-LJ-120 | 88.40 | 3.52 | 500.0 | 2723 | 89.5 | SF2500-12 | BWT-1000 | D941X-1.6,φ800 |
| 102.20 | 3.79 | 3384 | 89.2 | SF3200-12 | BWT-1800 | |||
| 118.30 | 4.07 | 600.0 | 4215 | SF4000-10 | Z945T-2.5,φ800 | |||
| 136.30 | 4.37 | 5230 | 89.5 | SF5000-10 | ||||
| 159.60 | 4.73 | 6567 | 88.8 | SF6300-10 | ||||
| 186.40 | 5.11 | 750.0 | 8348 | 89.3 | SF8000-8 | BWT-3000 | ||
| HL100-LJ-140 | 96.20 | 5.00 | 428.6 | 4221 | 89.5 | SF4000-14 | BWT-1800 | D941X-1.6,φ1000 |
| 111.20 | 5.37 | 500.0 | 5229 | 89.5 | SF5000-12 | |||
| 129.20 | 5.79 | 6573 | 89.5 | SF6300-12 | BWT-3000 | Z945T-2.5,φ1000 | ||
| 152.40 | 6.29 | 600.0 | 8352 | 88.8 | SF8000-10 | |||
| 175.90 | 6.76 | 10438 | 89.5 | SF10000-10 | Q947F-4,φ1000 | |||
| 204.60 | 7.23 | 13035 | 89.1 | SF12500-10 | BWT-5000 | |||
| HL100-LJ-160 | 108.30 | 6.93 | 428.6 | 6572 | 89.3 | SF6300-14 | BWT-3000 | Z945T-2.5,φ1200 |
| 127.00 | 7.50 | 8345 | SF8000-14 | |||||
| 147.30 | 8.08 | 500.0 | 10424 | SF10000-12 | BWT-5000 | |||
| 170.70 | 8.70 | 13033 | 89.5 | SF12500-12 | ||||
| 202.00 | 9.46 | 600.0 | 16684 | 89.0 | SF16000-10 | Q947F-4,φ1200 | ||
| 233.50 | 10.17 | 20852 | 89.5 | SF20000-10 | ||||
| HLSK1242a-WJ-60 | 70.50 | 0.88 | 750.0 | 539 | 89.0 | SFW500-8 | BWT-150 | D941X-1.6,φ600 |
| 81.70 | 0.94 | 1000.0 | 681 | 90.0 | SFW630-6 | BWT-300 | ||
| 95.40 | 1.02 | 865 | 90.6 | SFW800-6 | ||||
| 110.00 | 1.10 | 1066 | 90.2 | SFW1000-6 | ||||
