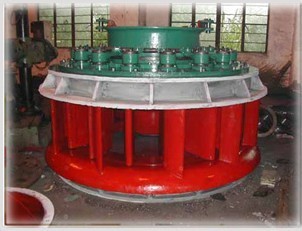

  • hydraulic turbine(kaplan turbine)
  • hydraulic turbine(kaplan turbine)
  • hydraulic turbine(kaplan turbine)
hydraulic turbine(kaplan turbine) hydraulic turbine(kaplan turbine) hydraulic turbine(kaplan turbine)

hydraulic turbine(kaplan turbine)

Inquiry Send Email

Description

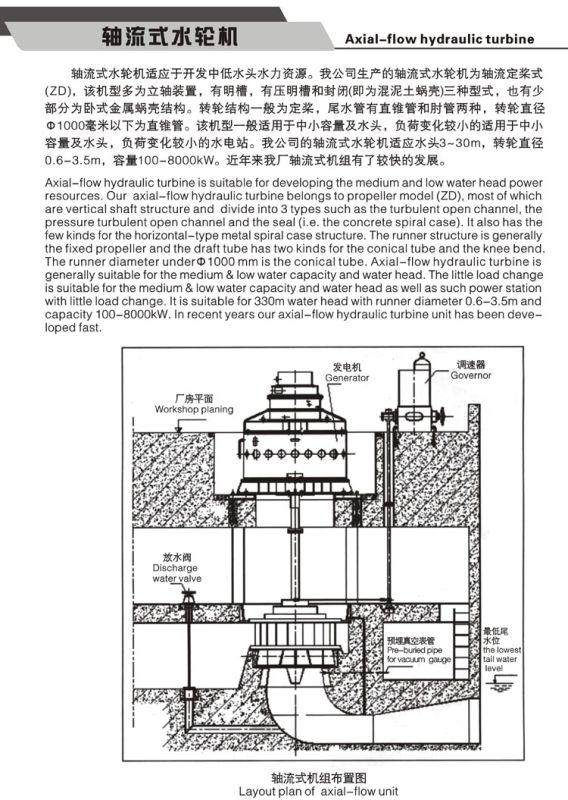

Kaplan turbine is widely used in a hydro power stations with the head of 2-30 meters. It is equipped with a vertical axle. There are three different types of this kind in which there is anopen trough or apressure trough or closed concrete worm-shelltrough. The turbine is made up of several propellers or manualy-ajusted blades. The water pipe at the end is vertical cone-shaped or elbow-shaped. The turbine with a diameter of 1000mm is vertical coneshaped. Therefore, it is fit for a small hydro power station with low head and load







Inquiry Us






Related Products

10kw 300rpm Low Speed Horizontl Wind Power Generator

10kw 300rpm Low Speed Horizontl Wind Power Generator

200kw 1000rpm High Efficiency Permanent Magnet Water Generator

200kw 1000rpm High Efficiency Permanent Magnet Water Generator

WPET300 series of Generator 3 in 1 control set

WPET300 series of Generator 3 in 1 control set

300kw Permanent Magnet Generator Alternator 20rpm 30rpm 50rpm 350rpm Free Energy Low Speed Low Rpm for Wind Turbine Water Hydro Turbine

300kw Permanent Magnet Generator Alternator 20rpm 30rpm 50rpm 350rpm Free Energy Low Speed Low Rpm for Wind Turbine Water Hydro Turbine

Wound-Rotor 3-Phase Asynchronous Motor Series Yrq

Wound-Rotor 3-Phase Asynchronous Motor Series Yrq

200kw 200rpm Low Speed Horizontal Permanent Magnet Generator

200kw 200rpm Low Speed Horizontal Permanent Magnet Generator

Product Categories

  • Permanent Magnet Generator
    • Vertical permanent magnet generator
    • Horizontal permanent magnet generator
    • Low speed Pancake Axial flux Corless generator
    • 50Hz/60Hz high efficiency generator
  • Hydro turbine system
    • Hydraulic turbine
    • Micro hydro turbine
    • Hydro turbine parts
  • AC Electric Motor
    • high voltage synchronous motors
    • High voltage asynchronos motors
    • Low voltage motors
    • Special motors
    • Electric vehicle motors
  • High speed magnet motor generator
  • Power Controller inverter
  • Transformer
    • Oil Immersed transformer
    • Dry type transformer
    • Pad mounted transformer
    • Special transformer
  • Eelectric vehicle motor and parts

Links

Made in ChinaBaidu.com

内页左侧广告1

LatestPost

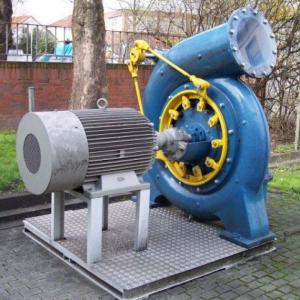

  • Classification of Hydro Turbines
    Classification of Hydro Turbines
    2022-11-29

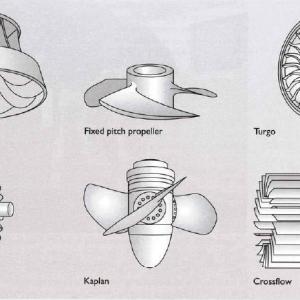

  • Types of Hydropower Turbines
