Description
We also offer various kind of other small hydro turbine generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator
| Name | Power (KW) | Water head (M) | Flow(m³/S) | Rotating speed (R/M) | Voltage(V) | Frequency (Hz) | Transmission |

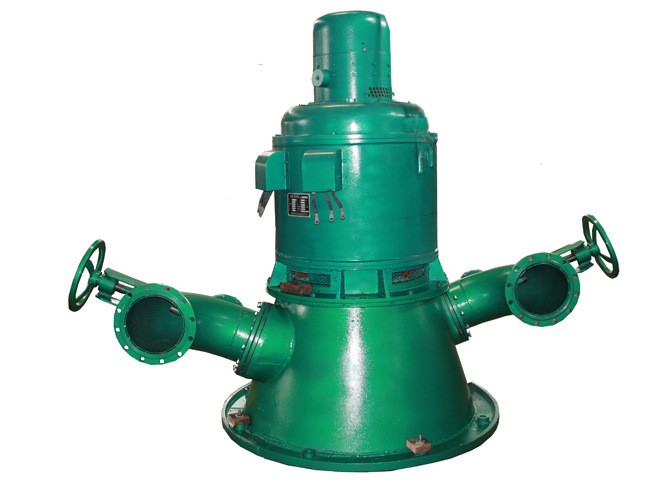

| Volute axial flow water turbine generator | 0.3 | 1.5-4 | 0.045-0.017 | 1000 | 220 | 50 | Direct |
| 0.6 | 2-4 | 0.068-0.034 | 1000 | 220 | 50 | Direct | |
| 1.0 | 2.5-6 | 0.085-0.035 | 1000 | 220 | 50 | Direct | |
| 1.5 | 2.7-8 | 0.114-0.0382 | 1000 | 220 | 50 | Direct | |
| 2.0 | 3-10 | 0.128-0.0385 | 1000/1500 | 220 | 50 | Direct | |
| 3.0 | 3-12 | 0.185-0.0464 | 1000/1500 | 220 | 50 | Direct | |
| 5.0 | 3.5-15 | 0.251-0.0586 | 1000/1500 | 220/380 | 50 | Direct | |
| 8.0 | 4-16 | 0.352-0.088 | 1000/1500 | 220/380 | 50 | Direct | |
| 10 | 5-18 | 0.34-0.094 | 1000/1500 | 380 | 50 | Direct | |
| 12 | 5-18 | 0.395_0.10 | 1000/1500 | 380 | 50 | Direct | |
| 15 | 5-18 | 0.47_0.132 | 1000/1500 | 380 | 50 | Direct |
