Description
Motor speed can customize from 20rpm to 10000rpm
| Main specifications | |
| Rated power (kW) | 35kW |
| Rated speed (rpm) | 300rpm |
| Rated torque (Nm): | 1114Nm |
| Rated voltage (V): | 400VAC |
| Rated current (A): | 144A |
| Pairs of poles | 12 |
| Phase | 3-phase |
| Insulation Class: | H |
| Protection Class | IP54 |
| Efficiency(>%) | 95% |
| Power factor | 1 |
| Cooling | Forced air cooling |
| Mechanical specifications | |
| Installation | Horizontal |
| Frame size | Y250 |
| Weight (Kg) | 420kg |
| Materials | |
| Shaft material | Steel |
| Bearings | Steel |
| Housing material | Casting Iron |
| Winding material | Copper |
| Winding temperature level | 180ºC |
| Magnet | NdFeB |
| Magnet temperature level | 150ºC |
| Core | High quality cold rolled silicon steel sheet |
Low speed and high torque,leaving out reduction box,driving the load directly, simplified structure, improving the system corresponding speed.
High-efficient and saving energy, saving 30% ~ 60% power than the existing drive mode.
Good torque performance, low-speed high-torque, low speed small vibration, start current and operating current is small, great over-load capacity.
The motor uses embedded magnet steel, could afford large pull force, well anti-vibration ability, convenient maintenance.
Multiple running model, it can work continuously, at intervals, variable speed, reverse running, targeted positioning, fast braking, soft starter, soft stop and many other modes.
Multiple poles, usually 12-64 poles for users requirements, which make the motor run smoothly.
The motor speed can be designed for special requirements, with low speed, high torque and low input power.
Multiple protect function,Multiple display function,Multiple communicate function.

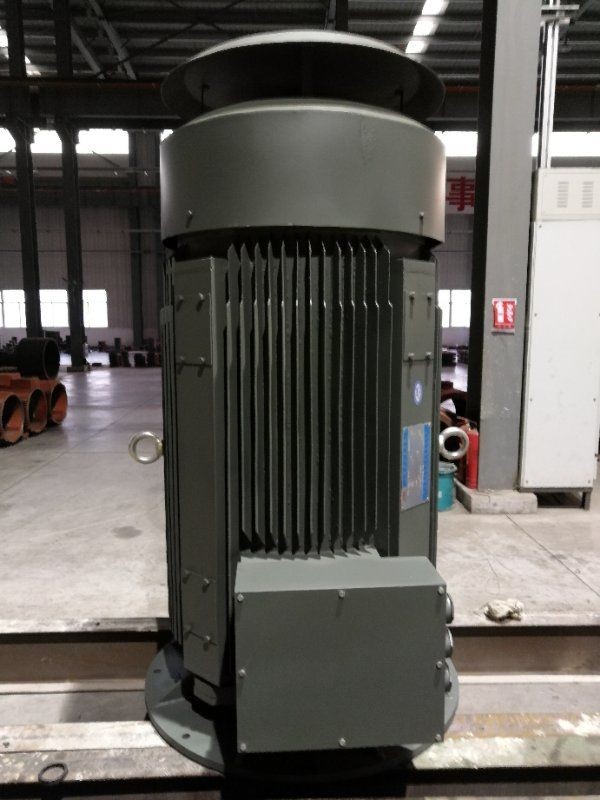

Multiple sort of styles for your choices,as horizontal, vertical, double-shaft, spline shaft.
The driver can be mounted inside a box. The box can provide the driver. It can adapt to different environments. The box contains circuit breaker, instruments, indicators, buttons, terminals, etc.
Motors with lower speed, higher torque, other voltage class can be customized according to users requrements.
