Description

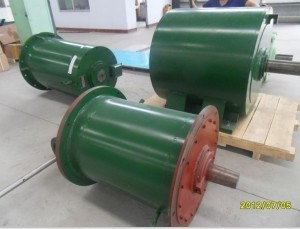

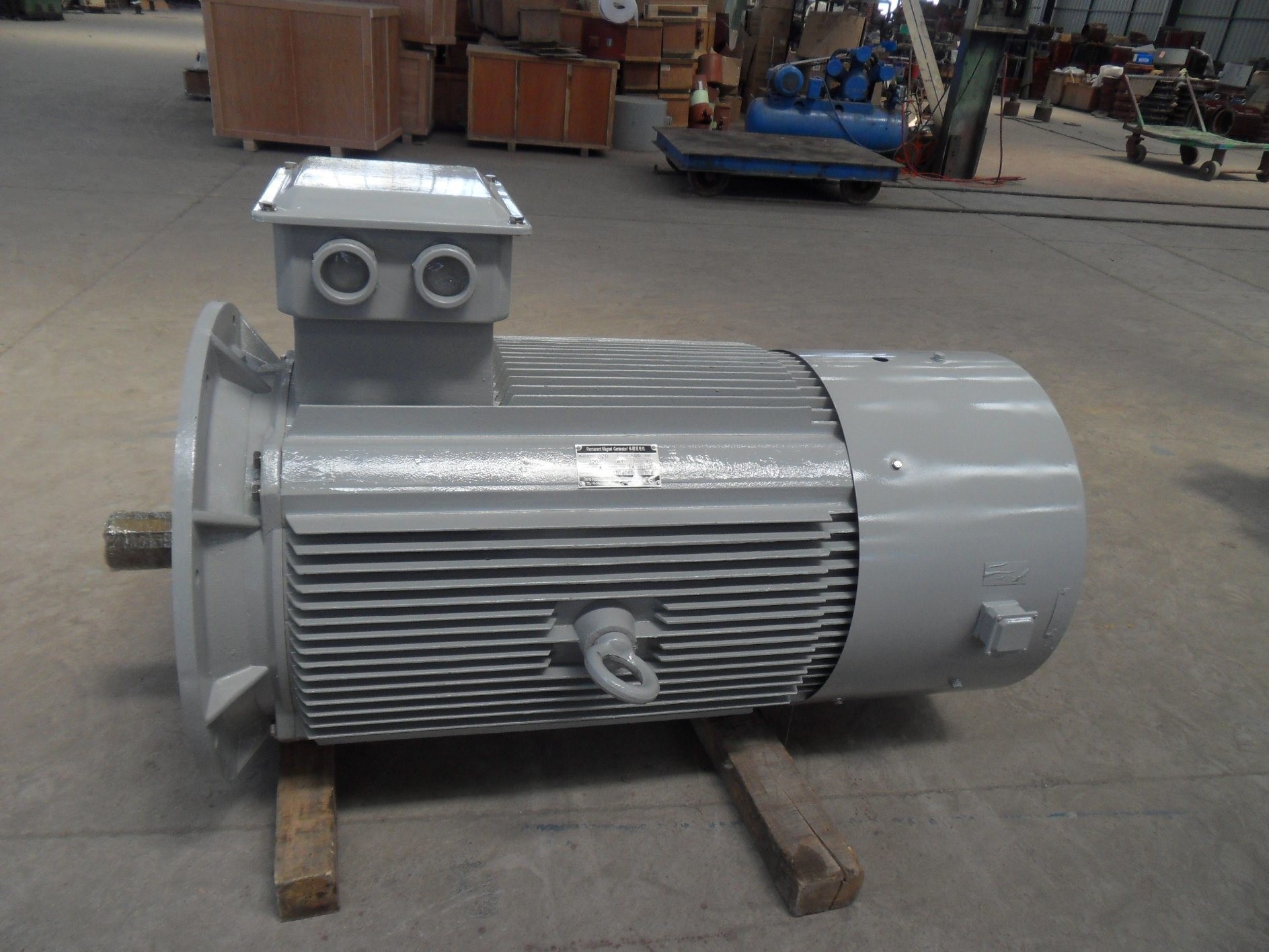

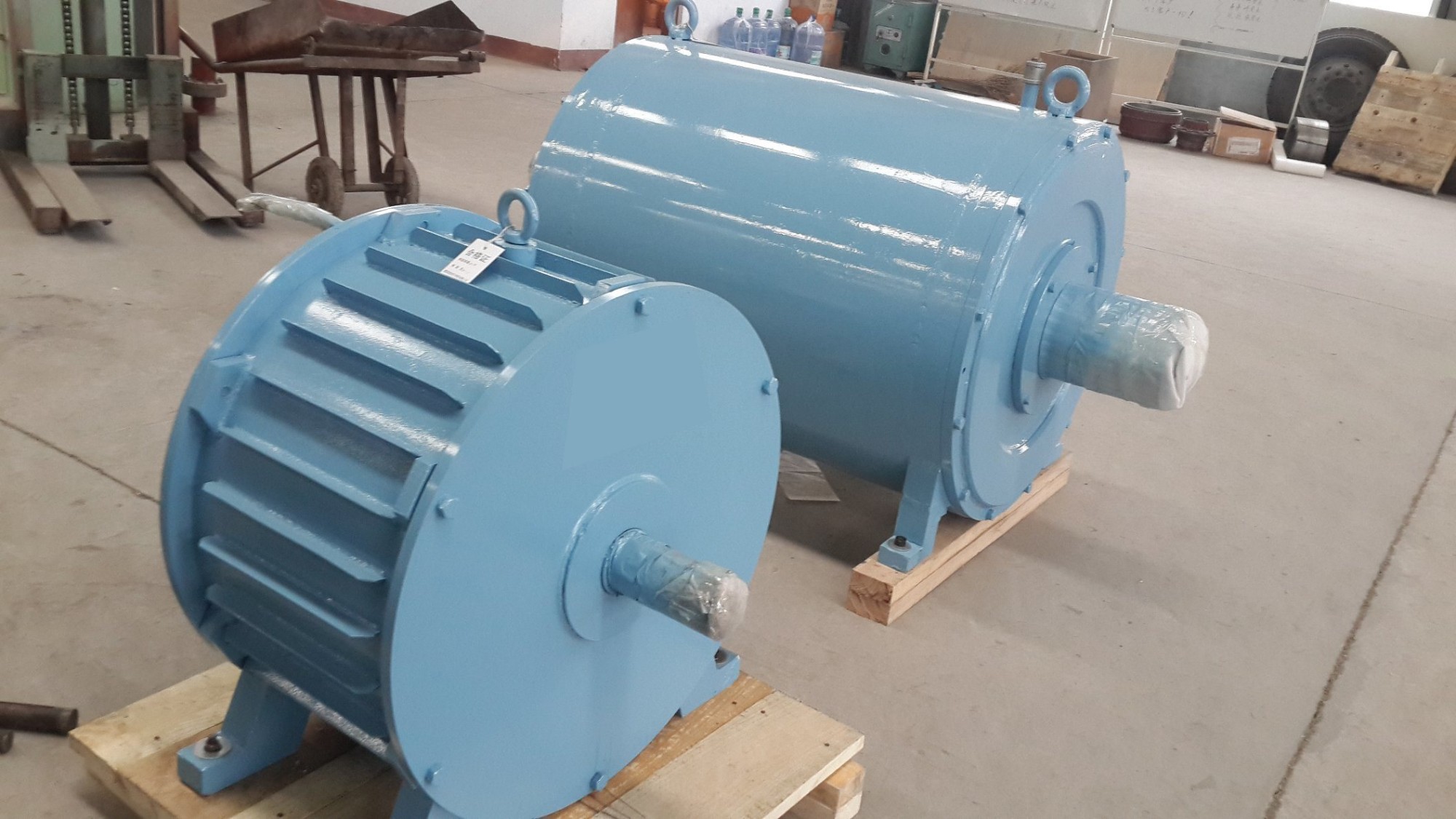

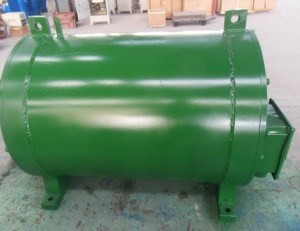

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 30rpm-6000rpm, output voltage and speed can customize according your request
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Power(KW) | AC voltage(V) | speed(RPM) | Rated torque(NM) | Start torque(NM) | current(A) | efficiency | weight |
| 500 | 400 | 60 | 79583.3 | 1591.7 | 776.0 | 93.80% | 9600 |
| 240 | 400 | 30 | 76400.0 | 1528.0 | 372.5 | 93.80% | 9600 |
