Description

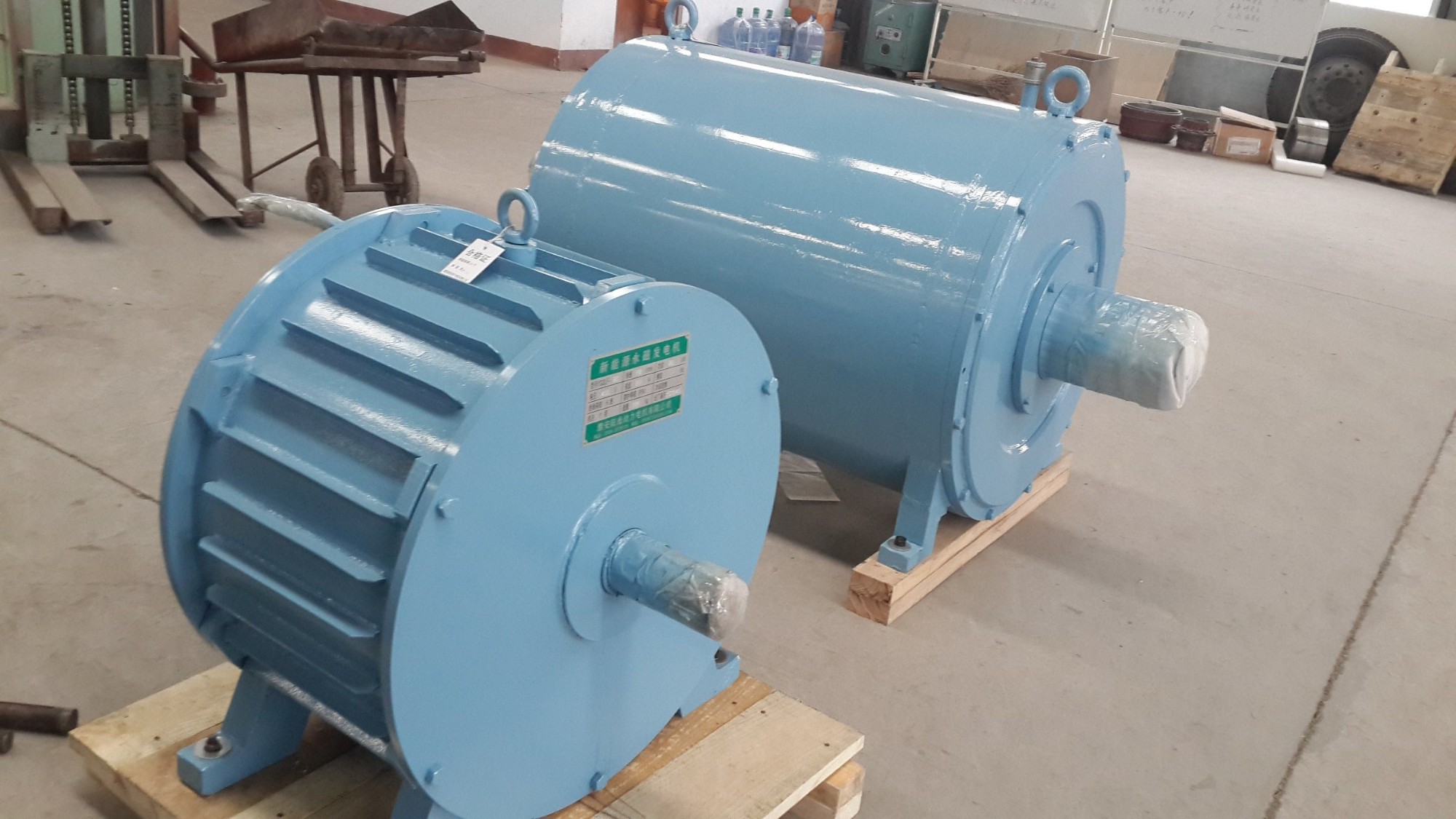

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim

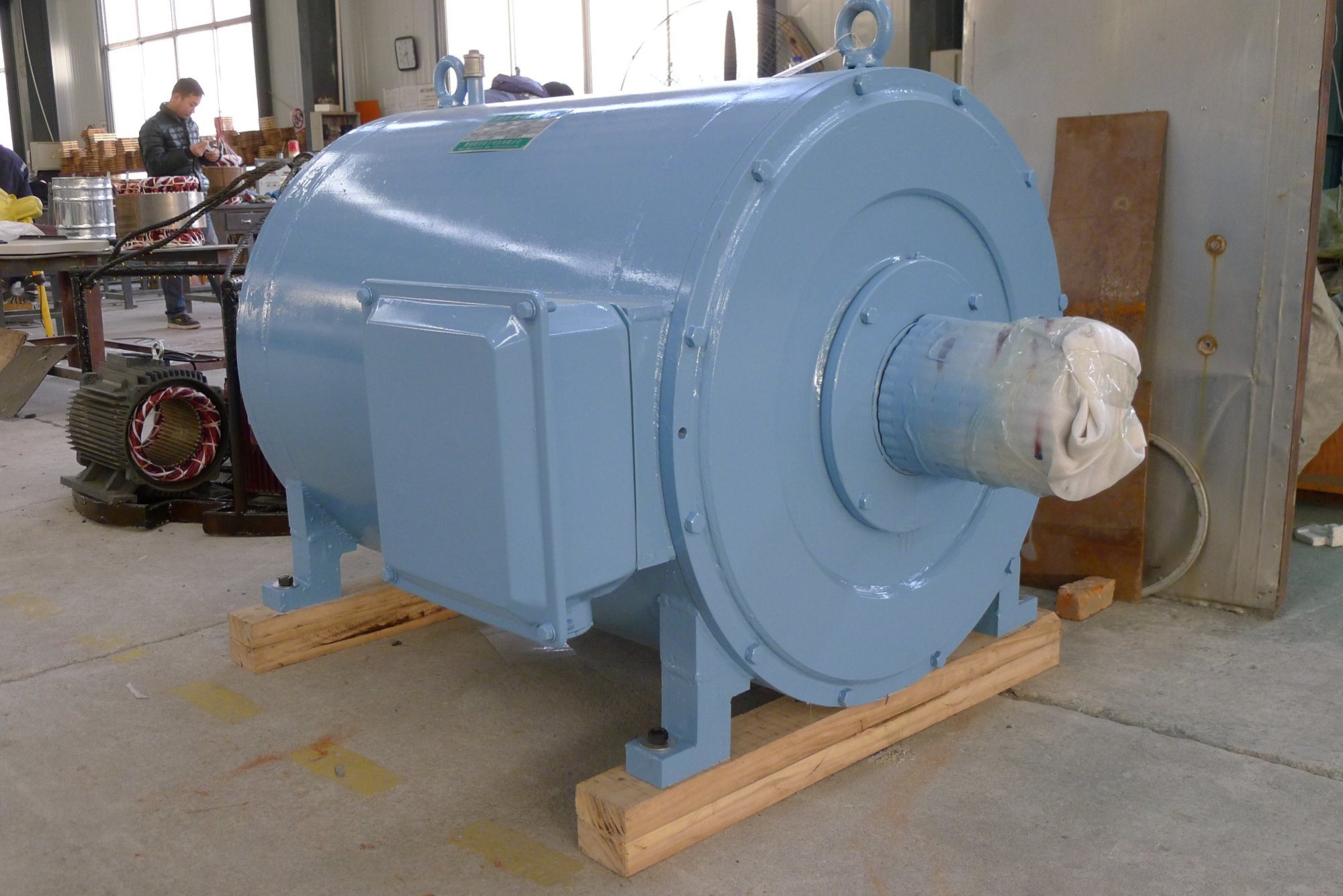

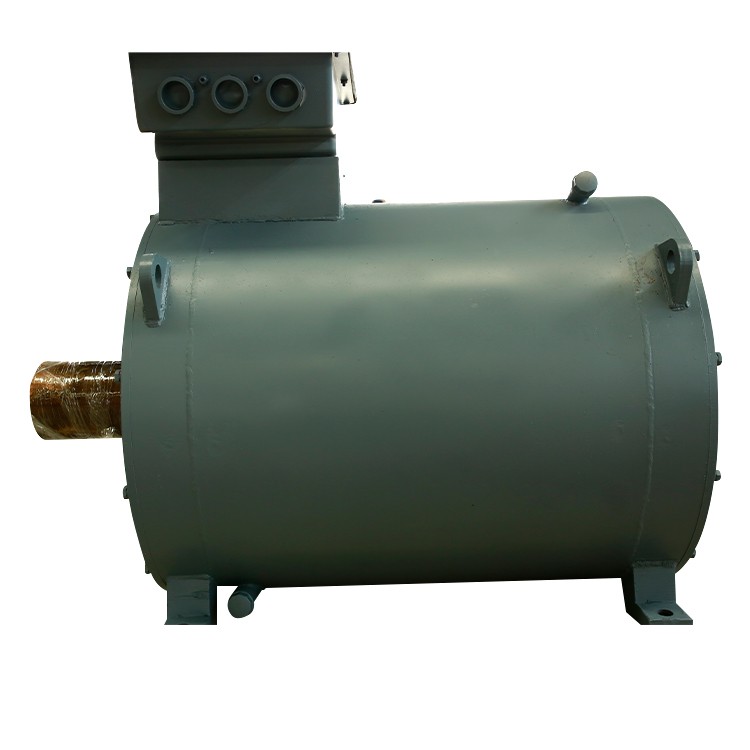

6000kw1000rpm1140V PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 6000
2 Rated speed RPM 1000
3 Rated output voltage VAC 1140
4 Rated current A 3040
5 Rated frequency HZ 50
6 Poles
6
7 Efficiency at rated speed % 96.5
8 Winding type Y
9 Insulation resistance MΩ >100
10 Insulation class H
11 Rated torque Nm 58380
12 Start torque Nm <1100
13 Temperature rise °C 90
14 Max.working temperature °C 130
15 Generator diameter mm See the drawing
16 Shaft diameter mm See the drawing
17 Housing material Steel
18 Shaft material Steel
19 Bearing SKF
20 Weight Kg 8600
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
6000kw1000rpm1140V PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 6000
2 Rated speed RPM 1000
3 Rated output voltage VAC 1140
4 Rated current A 3040
5 Rated frequency HZ 50
6 Poles
6
7 Efficiency at rated speed % 96.5
8 Winding type Y
9 Insulation resistance MΩ >100
10 Insulation class H
11 Rated torque Nm 58380
12 Start torque Nm <1100
13 Temperature rise °C 90
14 Max.working temperature °C 130
15 Generator diameter mm See the drawing
16 Shaft diameter mm See the drawing
17 Housing material Steel
18 Shaft material Steel
19 Bearing SKF
20 Weight Kg 8600
