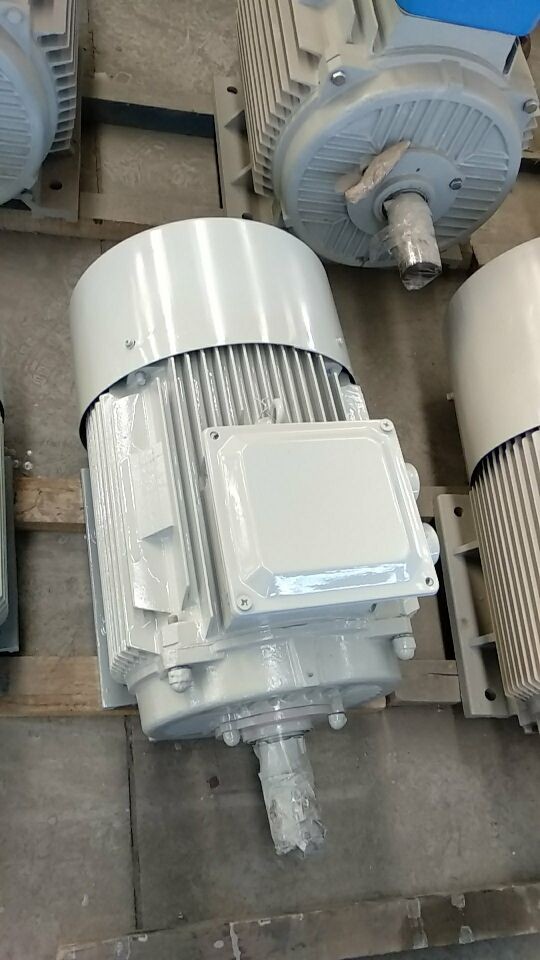

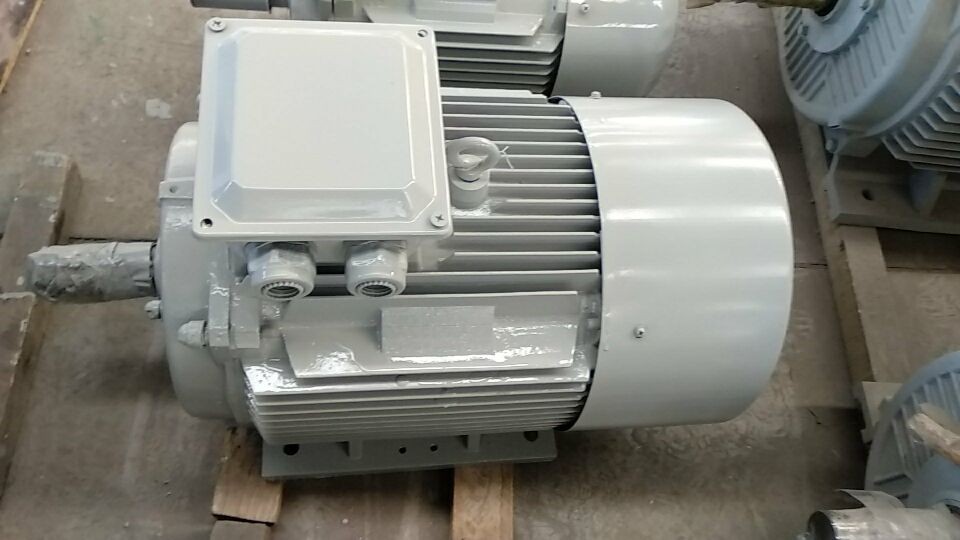

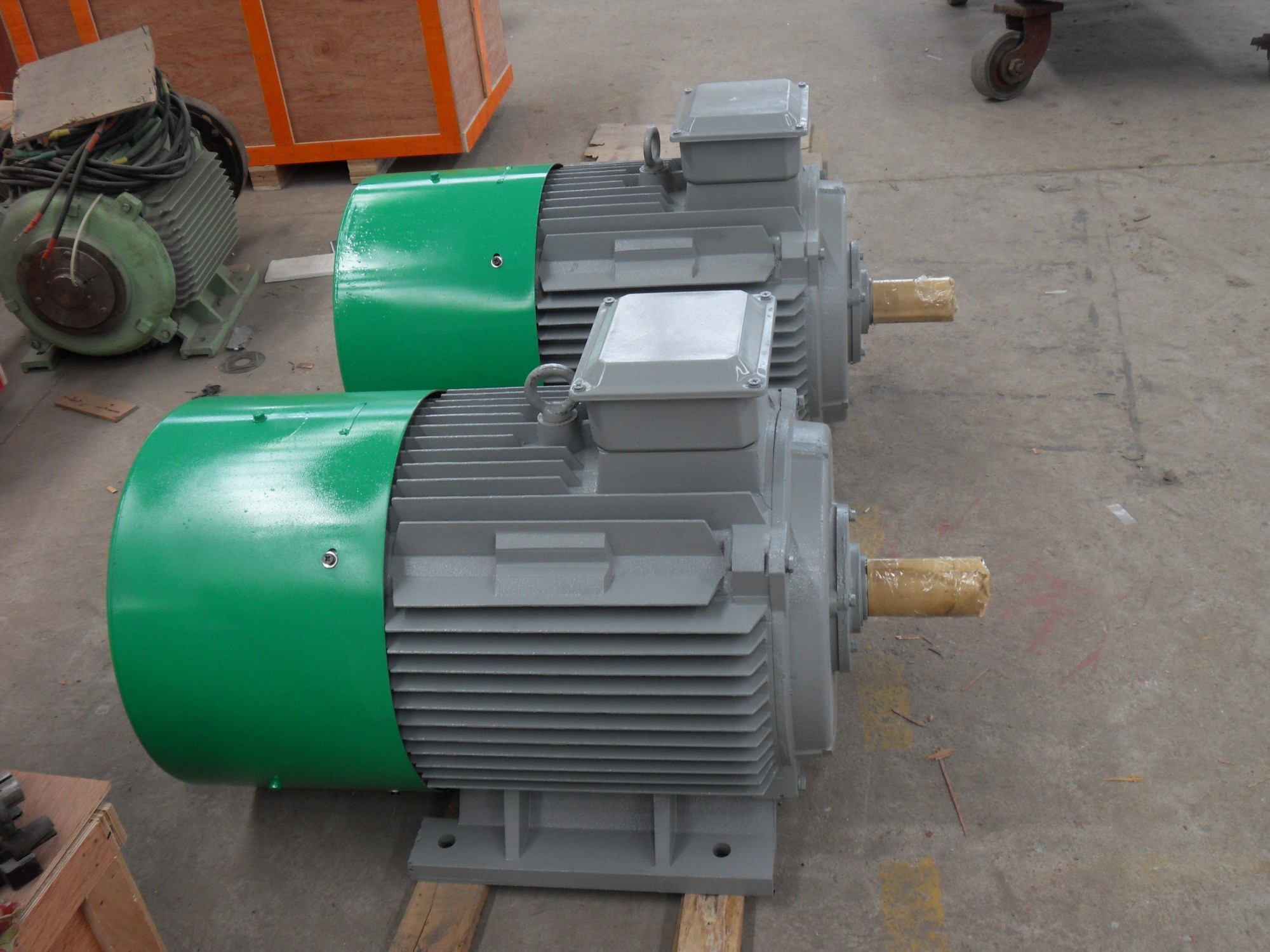

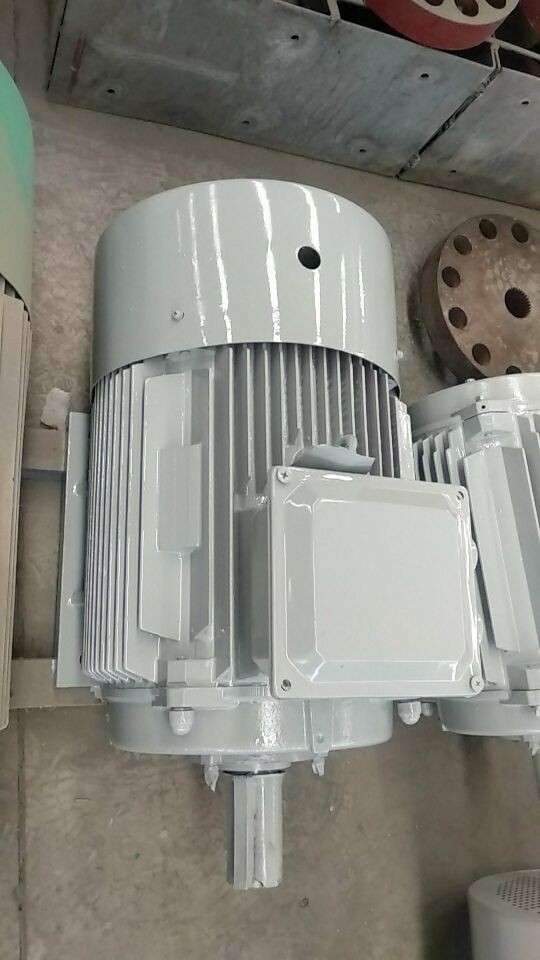

1500rpm Permanent Magnet Generator 50kw 50Hz

Inquiry Send Email

Description

Diesel generator, gas generator, also can use for wind turbine and hydro turbine system, 1500rpm 1800rpm all available
Power Voltage 50Hz Speed Current Power factor Efficiency Rated torque Peak torque Model Length Weight
13 kw 380V 1500RPM 21.2A 0.98 93.5% 82.8Nm 200Nm Y160-4M 605 103kg
15 kw 380V 1500RPM 24.5A 0.98 93.5% 95.5Nm 200Nm Y160-4M 605 110kg
18.5 kw 380V 1500RPM 30.2A 0.98 93.6% 117.8Nm 240Nm Y160-4L 650 117kg
20kw 380V 1500RPM 32.6A 0.98 93.6% 127.3Nm 270Nm Y160-4L 655 121kg
22kw 380V 1500RPM 35.8A 0.98 93.6% 140Nm 280Nm Y160-4L 660 125kg


60kw-80kw <a href=https://www.xindagreenenergy.com/products-3-46-p.html target='_blank'>Permanent Magnet Generator</a> Alternator (1500rpm, 1800rpm)60kw-80kw Permanent Magnet Generator Alternator (1500rpm, 1800rpm)60kw-80kw Permanent Magnet Generator Alternator (1500rpm, 1800rpm)
