Description

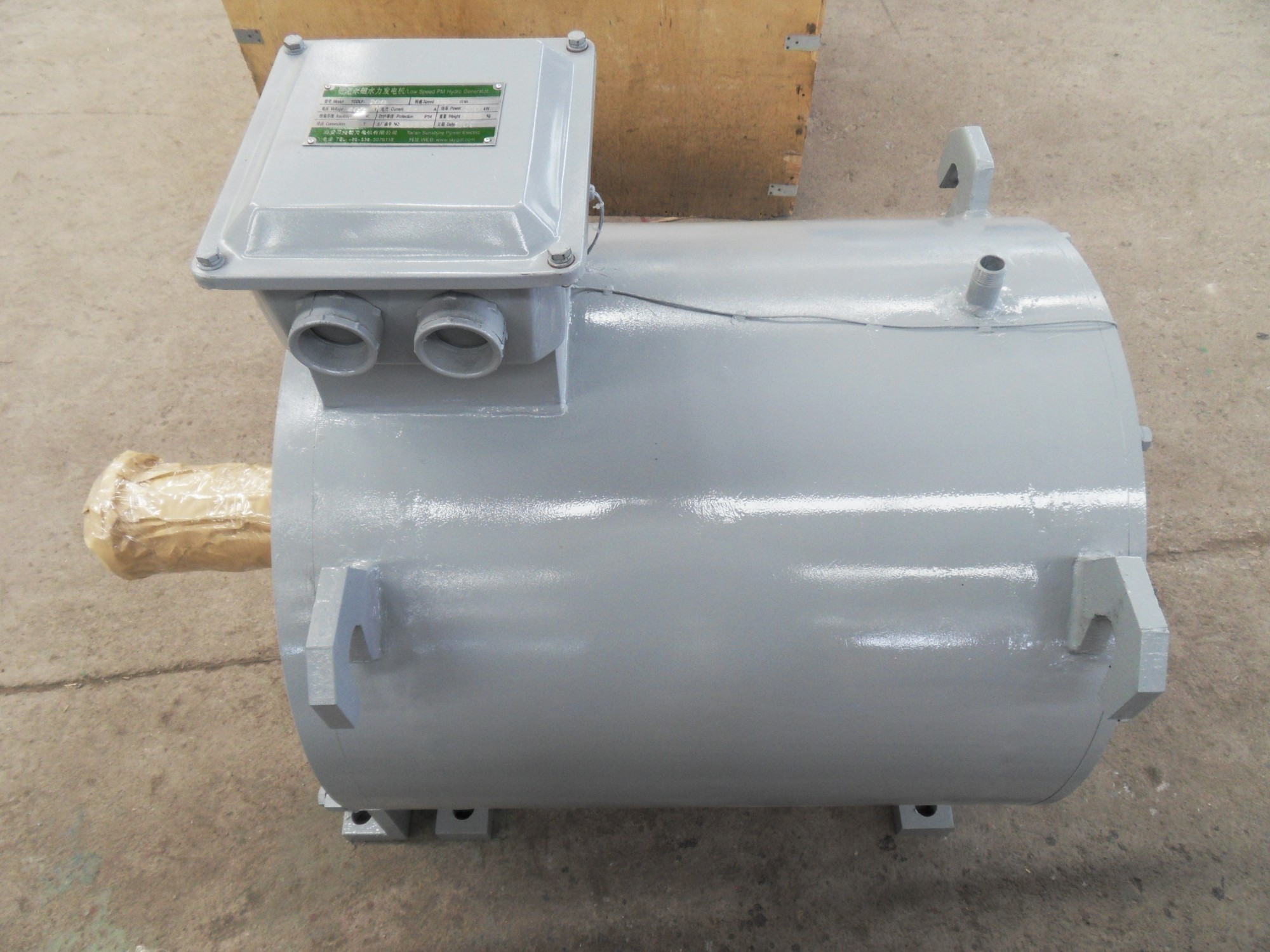

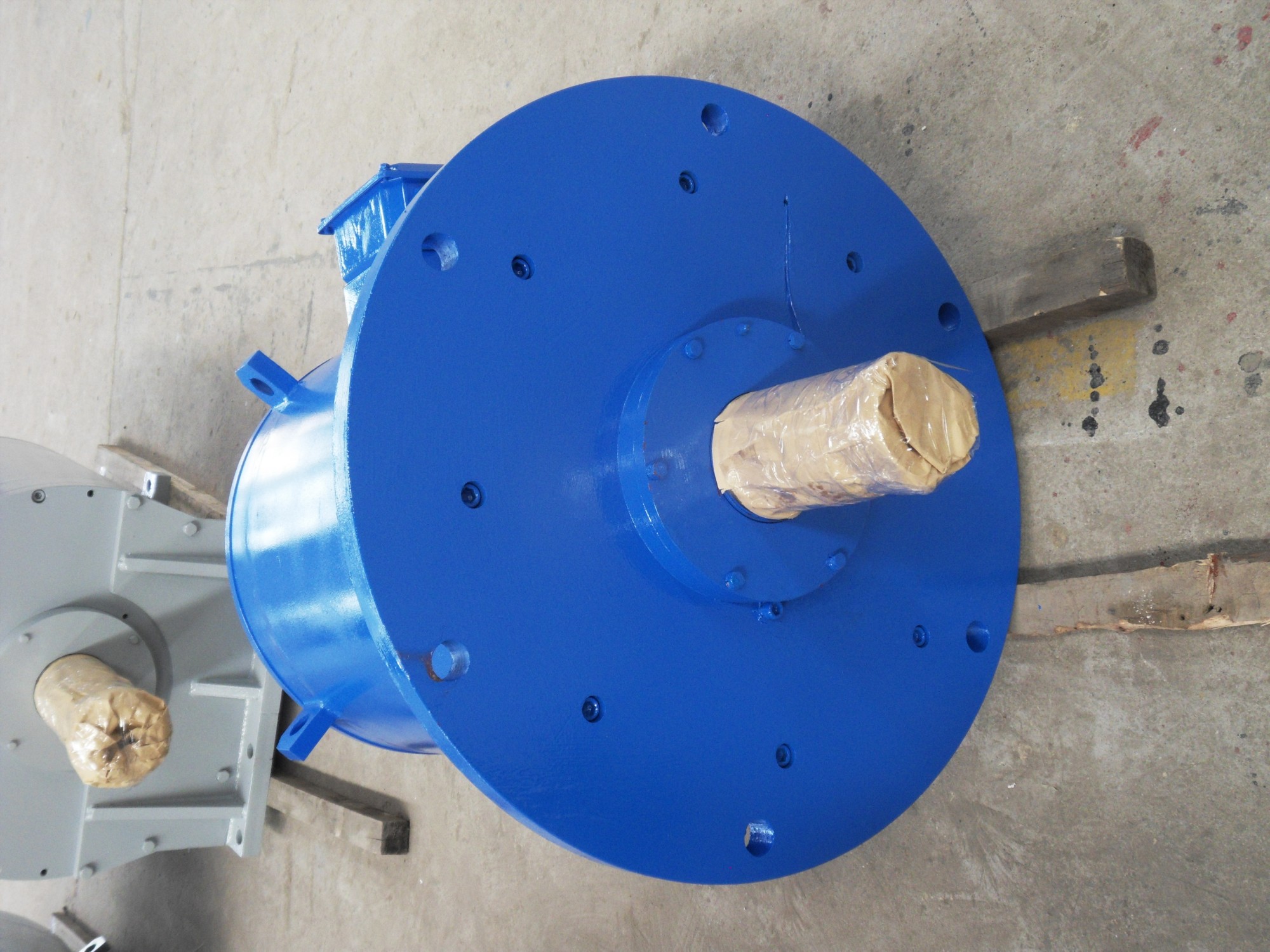

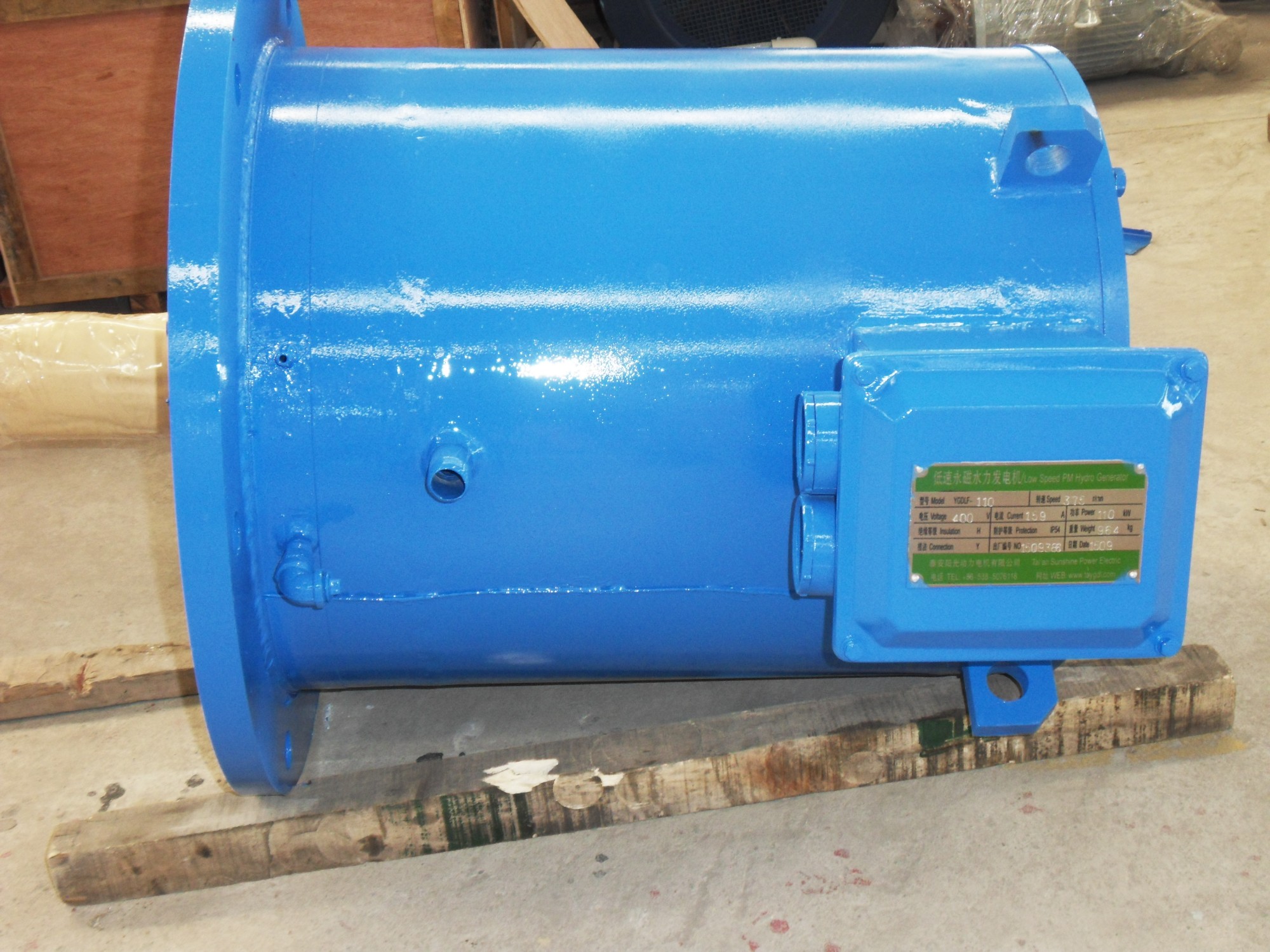

1.5mw 350rpm Large Permanent Magnet Generator,low speed,direct dirve,not need gearbox,permanent magnet generator high efficiency
We can customize generator speed from 30rpm-6000rpm.power from 1kw to 3mw
We can customize generator speed from 30rpm-6000rpm.power from 1kw to 3mw
| Power(KW) | AC voltage(V) | speed(RPM) | Rated torque(NM) | Start torque(NM) | current(A) | efficiency | weight |
| 350 | 400 | 60 | 55708.3 | 1114.2 | 543.2 | 93.80% | 7000 |
| 200 | 400 | 30 | 63666.7 | 1273.3 | 310.4 | 93.80% | 7000 |
| 500 | 400 | 100 | 47750.0 | 955.0 | 776.0 | 93.80% | 7000 |
| 600 | 400 | 150 | 38200.0 | 764.0 | 931.2 | 93.80% | 7000 |
| 700 | 400 | 200 | 33425.0 | 668.5 | 1086.4 | 93.80% | 7000 |
| 850 | 400 | 250 | 32470.0 | 649.4 | 1319.3 | 93.80% | 7000 |
| 1000 | 400 | 300 | 31833.3 | 636.7 | 1552.1 | 93.80% | 7000 |
| 1200 | 400 | 350 | 32742.9 | 654.9 | 1862.5 | 93.80% | 7000 |
| 1500 | 400 | 400 | 35812.5 | 716.3 | 2328.1 | 93.80% | 7000 |
| 1800 | 400 | 450 | 38200.0 | 764.0 | 2793.7 | 93.80% | 7000 |
