15kw Incline Jet Mini Water Turbine Generator

Hydro Generator  , Hydroelectric Generator  , Water Wheel Generator  , Water Turbine Generator  , Hydro Power Generator  , Water Generator  , Micro Hydro Turbine  , Water Powerd Electric Generatror  , Generating Eleectricity From Water  , Pelton Wheel Generator  , Mini Pico Hydro Turbine  , River Turbine Generator  , Home Hydro Power Generator  , Small River Turbine Generator  , Water Driven Generator  , River Hydroelectric Generation
Inquiry Send Email

Description

We also offer various kind of other small hydro turbine generator

Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet hydro turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
low speed Permanent Magnet Generator
INCLINE JET TURBINE

Power
(kW)
Water head
(m)
Flow Rate
(m3/s)
Speed
(r/min)
Diameter
(mm)
10KW 30-40 0.0482-0.05 1000 200mm
15KW 40 0.05 1000 200mm
20KW 40-50 0.089 1000 250mm
30KW 45 0.101 1000 250mm
40KW 55 0.12 1000 250-300mm
50KW 60 0.127 1000 300

KAPLAN TURBINE

Power
(kW)
Water head
(m)
Flow Rate
(m3/s)
Speed
(r/min)
10KW 3 0.514 750 40mm
15KW 4 0.69 1000 40mm
20KW 2.5 1.19 1000 60mm
30KW 3.3 1.2 1000 60mm
40KW 3.8 1.63 1000 60mm
50KW 3.2 2.65 1000 80mm

FRANCIS TURBINE

Power
(kW)
Water head
(m)
Flow Rate
(m3/s)
Speed
(r/min)
10KW 6 0.31 1000-1500 300mm
15KW 6-7 0.26 1000-1500 300mm
20KW 7 0.38 1000 400mm-500mm
30KW 7 0.65 1000 400-500mm
40KW 6.5 0.82 1000 500-600mm
50KW 7.5 1.11 1000 600-700mm

TUBULAR TURBINE

Power
(kW)
Water head
(m)
Flow Rate
(m3/s)
Speed
(r/min) 		 Diameter
10KW 6 0.31 1000-1500 300mm
15KW 6-7 0.26 1000-1500 300mm
20KW 7 0.38 1000 400mm-500mm
30KW 7 0.65 1000 400-500mm
40KW 6.5 0.82 1000 500-600mm
50KW 7.5 1.11 1000 600-700mm

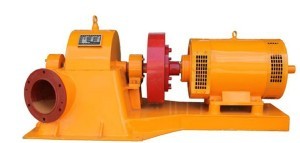

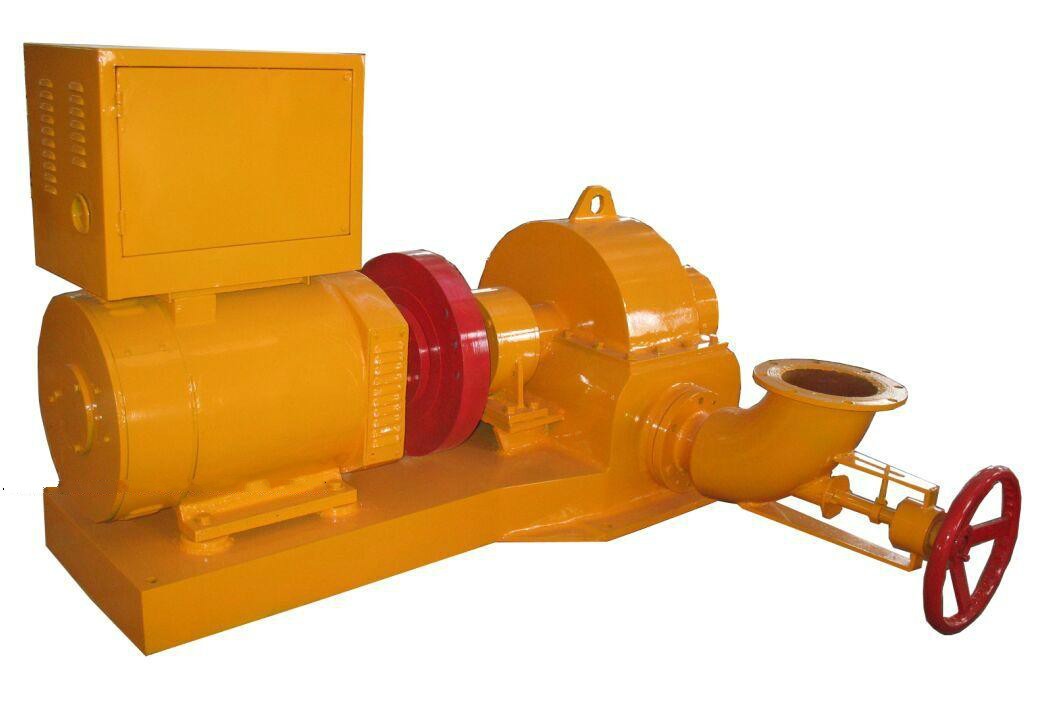

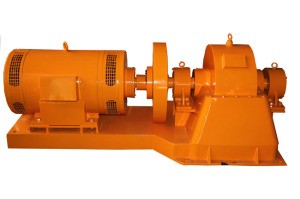

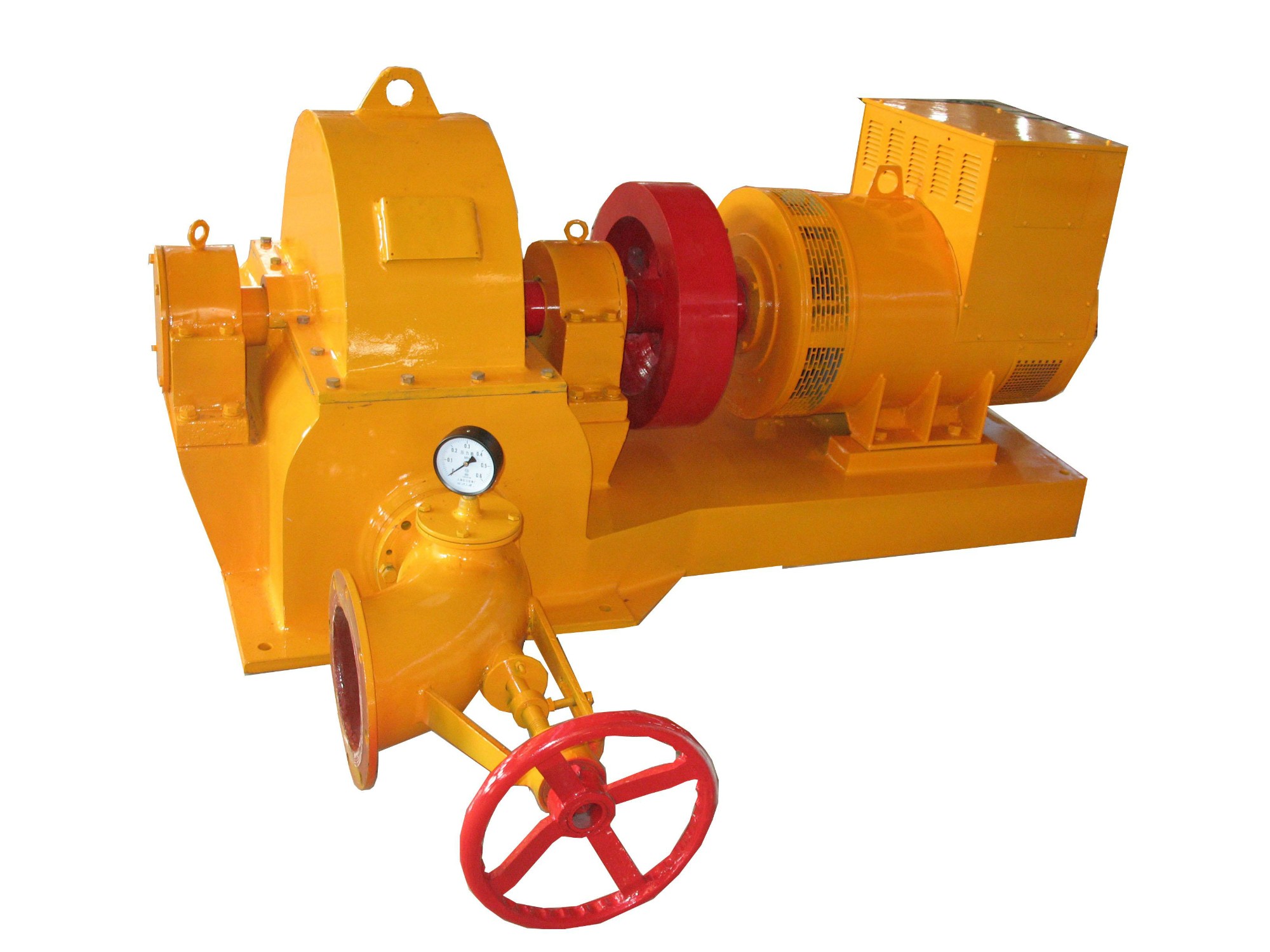

15kw Incline Jet Mini Water Turbine Generator
Power
(kW) 		Water head
(m) 		Flow Rate
(m 3 /s) 		Speed
(r/min) 		Diameter
(mm)
10KW 30-40 0.0482-0.05 1000 200mm
15KW 40 0.05 1000 200mm
20KW 40-50 0.089 1000 250mm
30KW 45 0.101 1000 250mm
40KW 55 0.12 1000 250-300mm
50KW 60 0.127 1000 300mm
