Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim

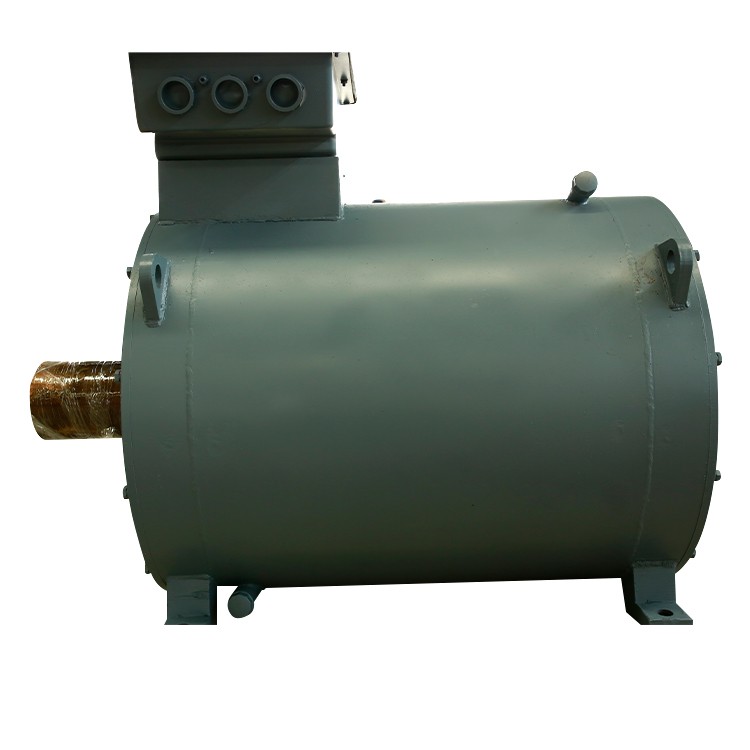

6000kw1000rpm1140V PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 6000
2 Rated speed RPM 1000
3 Rated output voltage VAC 1140
4 Rated current A 3040
5 Rated frequency HZ 50
6 Poles
6
7 Efficiency at rated speed % 96.5
8 Winding type Y
9 Insulation resistance MΩ >100
10 Insulation class H
11 Rated torque Nm 58380
12 Start torque Nm <1100
13 Temperature rise °C 90
14 Max.working temperature °C 130
15 Generator diameter mm See the drawing
16 Shaft diameter mm See the drawing
17 Housing material Steel
18 Shaft material Steel
19 Bearing SKF
20 Weight Kg 8600
