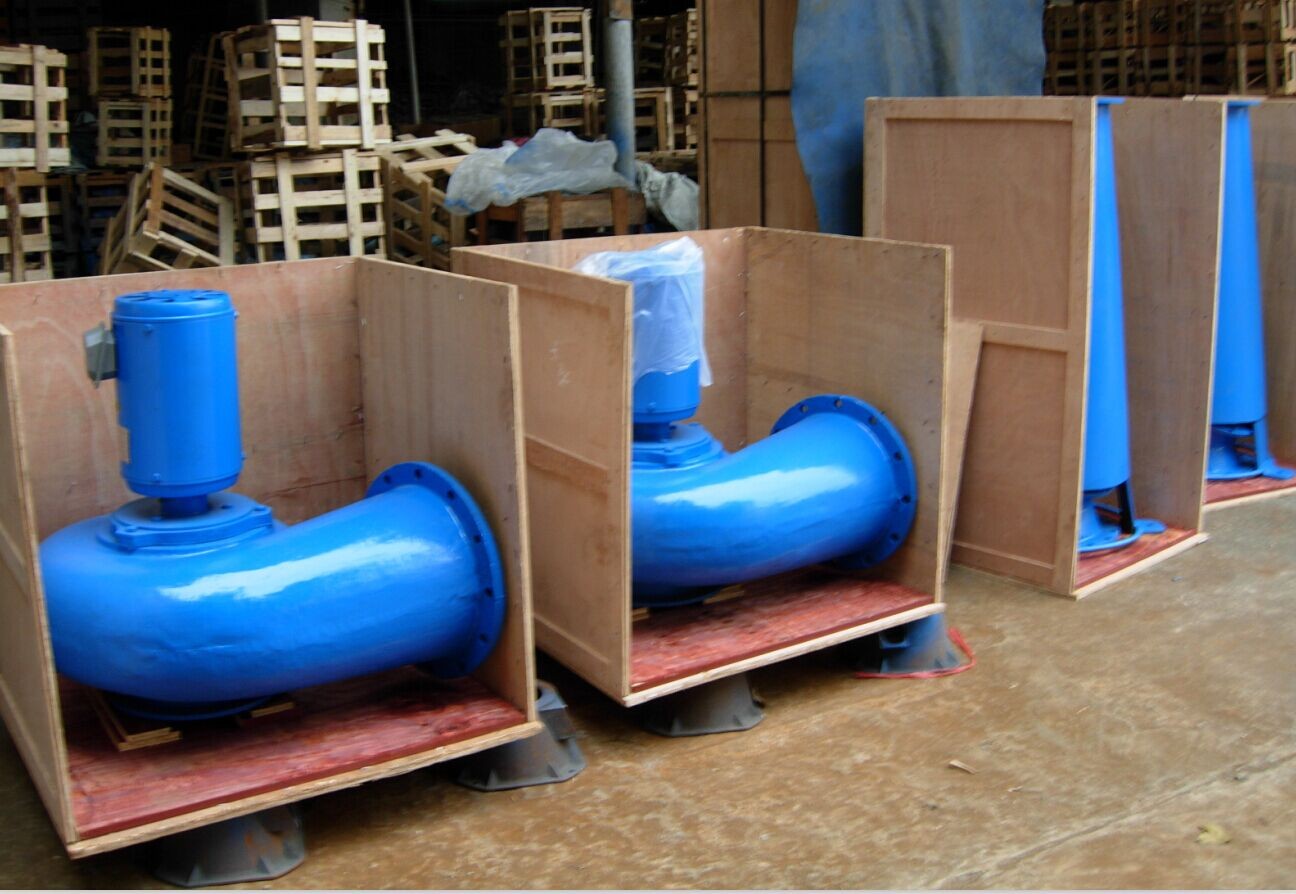

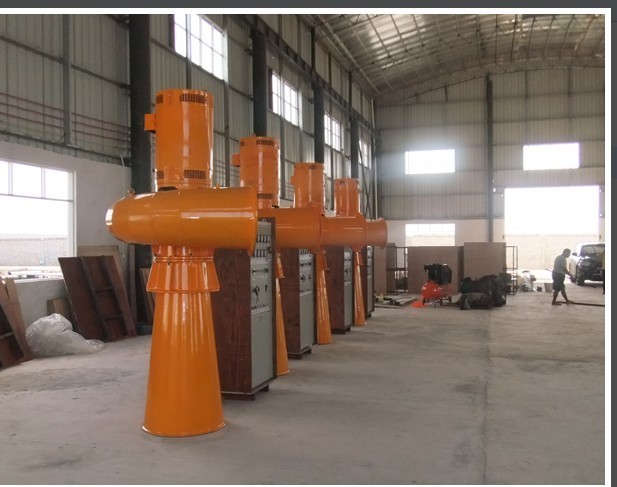

3000W Volute Axial Flow Water Turbine Generator

hydro turbine  , micro hydroelectric turbine  , water power  , water turbine generator  , mini hydro turbine  , francis turbine  , low water head turbine  , kaplan turbine  , china water turbine  , china hydro turbine  , made in china hydro power generator  , rural electricity  , hydroelectric  , tubular turbine  , Hydro Electric Power Plants  , turbine generation  , Tubular Turbine Generator  , Pleton Turbine  , hydro turbine parts  , reaction turbine  , steam turbine generator
Inquiry Send Email

Description

We also offer various kind of other small hydro turbine generator

Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator
Inclined-jet water turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Permanent Magnet Generator


2. Main specifications and technical parameters
2.1 Model type: Volute axial type
2.2 Power: 300 watts 100 kilowatts
2.3 Voltage: 110V, 220V, 380V
2.4 Frequency: 50Hz 60Hz
2.5 Water head: 1.0 meter 10 meter
2.6 Flow: 0.017m³ /s— 1.66m³ /s
2.7 Rotating speed: Four poles 1, 500 rpm; Six poles 1, 000 rpm; Eight poles 750 rpm
Name Power (KW) Water head (M) Flow(m³/S) Rotating speed (R/M) Voltage(V) Frequency (Hz) Transmission
Volute axial flow water turbine generator 0.3 1.5-4 0.045-0.017 1000 220 50 Direct
0.6 2-4 0.068-0.034 1000 220 50 Direct
1.0 2.5-6 0.085-0.035 1000 220 50 Direct
1.5 2.7-8 0.114-0.0382 1000 220 50 Direct
2.0 3-10 0.128-0.0385 1000/1500 220 50 Direct
3.0 3-12 0.185-0.0464 1000/1500 220 50 Direct
5.0 3.5-15 0.251-0.0586 1000/1500 220/380 50 Direct
8.0 4-16 0.352-0.088 1000/1500 220/380 50 Direct
10 5-18 0.34-0.094 1000/1500 380 50 Direct
12 5-18 0.395_0.10 1000/1500 380 50 Direct
15 5-18 0.47_0.132 1000/1500 380 50 Direct
