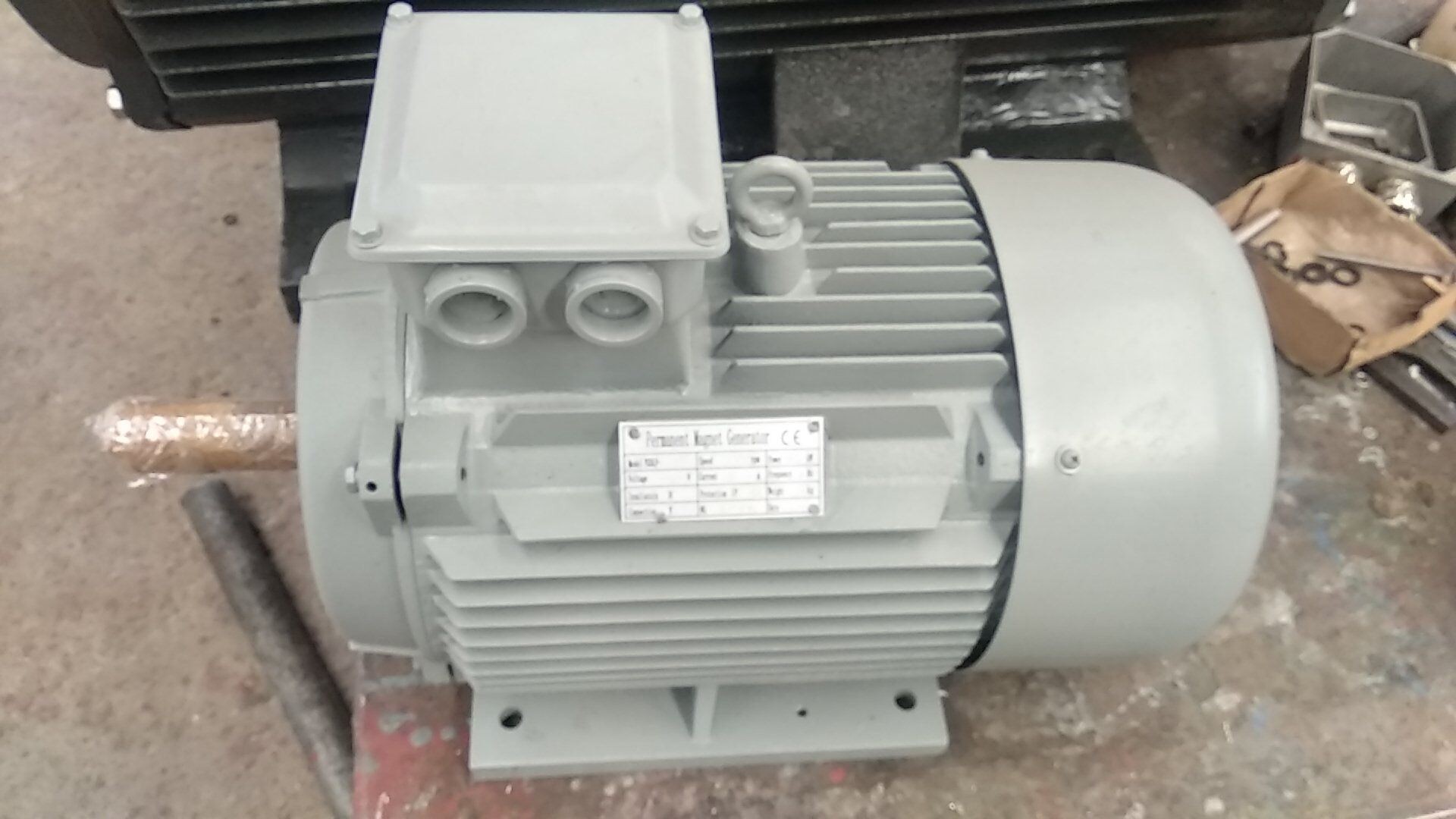

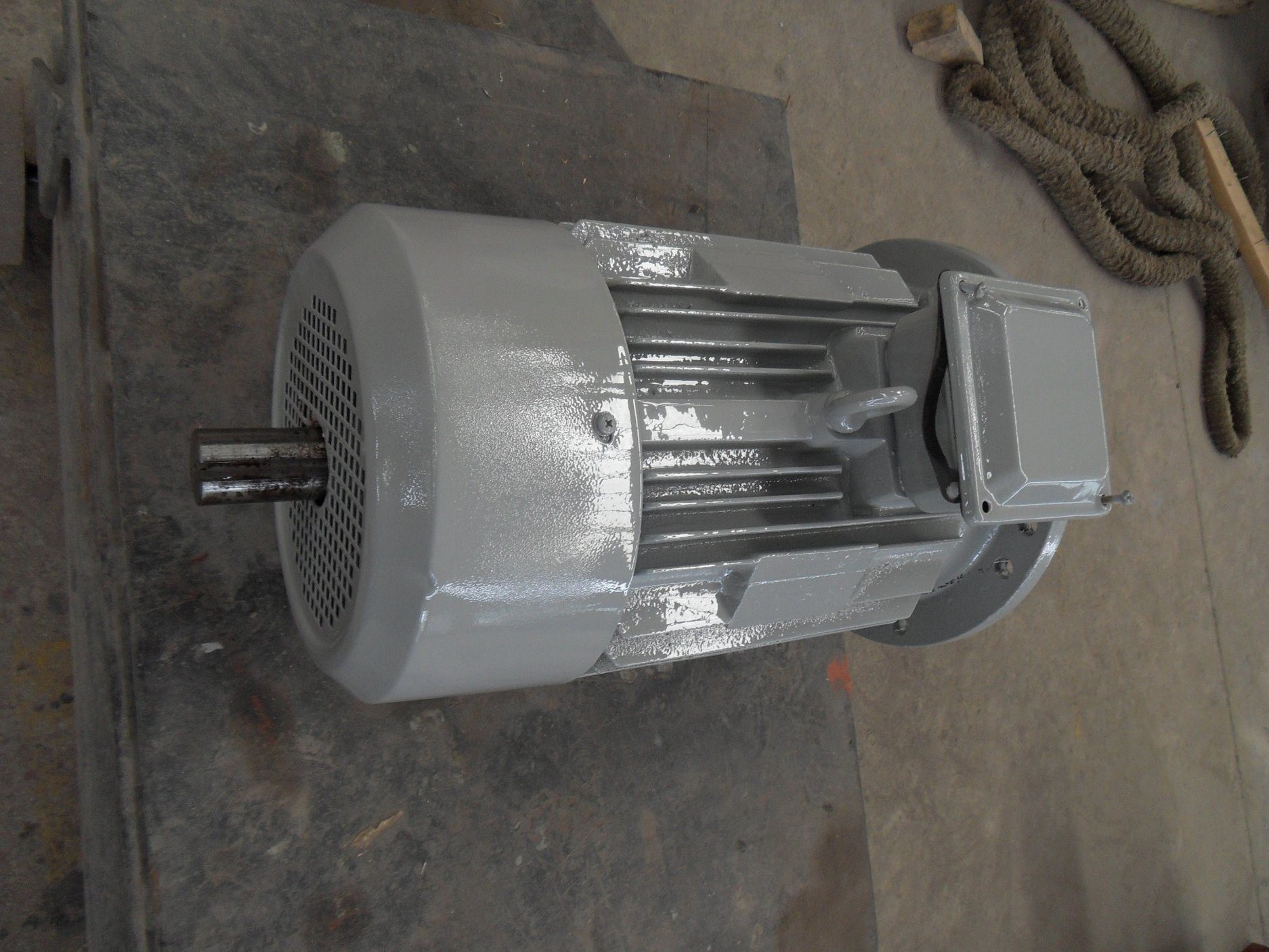

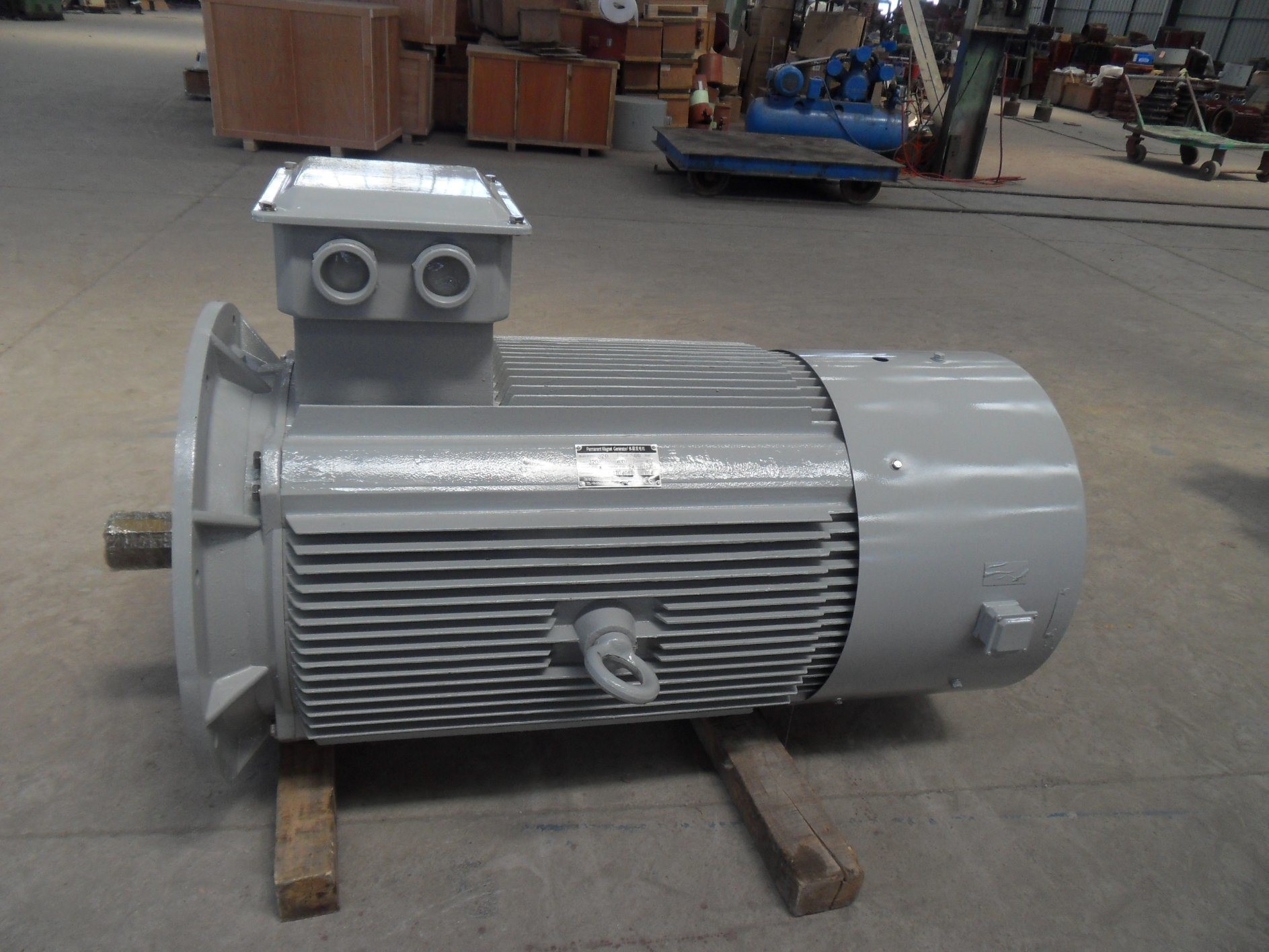

100kw 10000rpm High Speed Permanent Magnet Motor

high speed generator motor  , turbine generator motor  , industrial compressors motor  , oil and gas compressors motor  , HVAC compressors motor  , laser and fuel cell cooling systems Rail transit  , papermaking motor  , sewage treatment motor  , pharmaceuticals motor  , evaporation and crystallization motor  , waste heat power generation  , new energy vehicles motor  , turbine steam turbines generator  , gas turbines generation  , ORC generator system
Inquiry Send Email

Description

The motor speed, voltage, power can be customized according to the requirements, but its better to be no more than 15, 000 speed. The motor can be made as wind cooling or water cooling, AC or DC. The front cover of the motor could have flange front edge, the size and the output shaft can also be customized.
power voltage speed Rated torque Peak torque Peak power current Current peak Efficiency weight Chassis size
100kw 380V 10000 93.6Nm 150Nm 150KW 161A 200A 95.7% 110kg Y160-160
120kw 380V 10000 112.3Nm 170Nm 160KW 193A 300A 95.7% 120kg Y160-190
200 kw 380V 18000 106Nm 160Nm 260KW 322A 420A 95.8% 120kg Y160-190
260 kw 380V 18000 138Nm 200Nm 360KW 420A 620A 95.9% 150kg Y160-260
100kw 10000rpm High Speed Permanent Magnet Motor
