Description

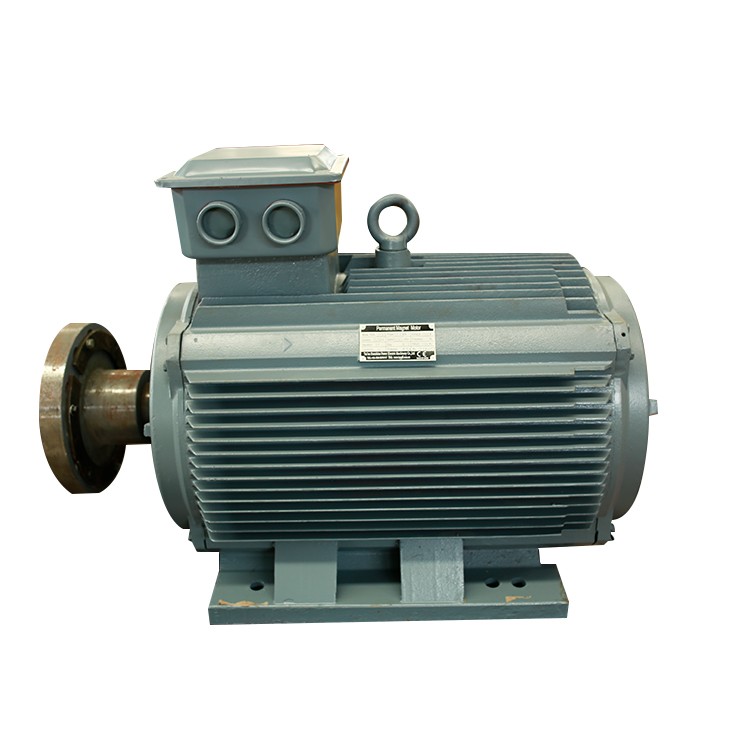

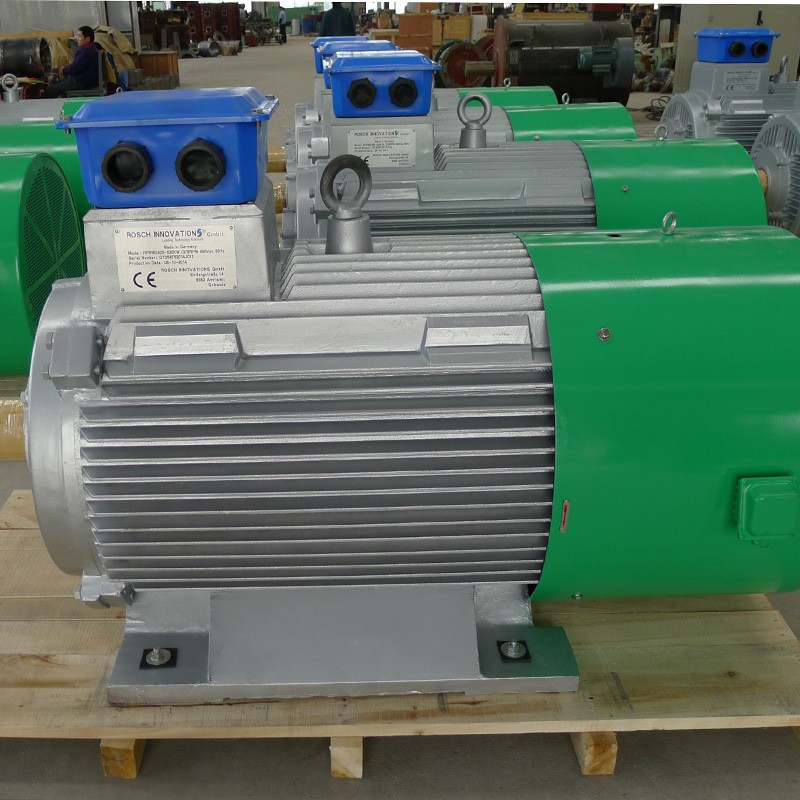

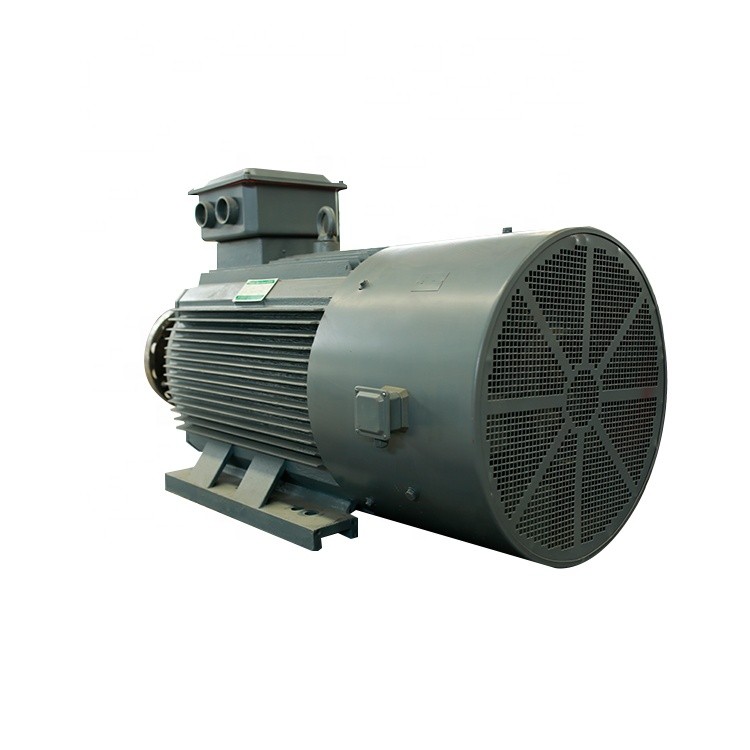

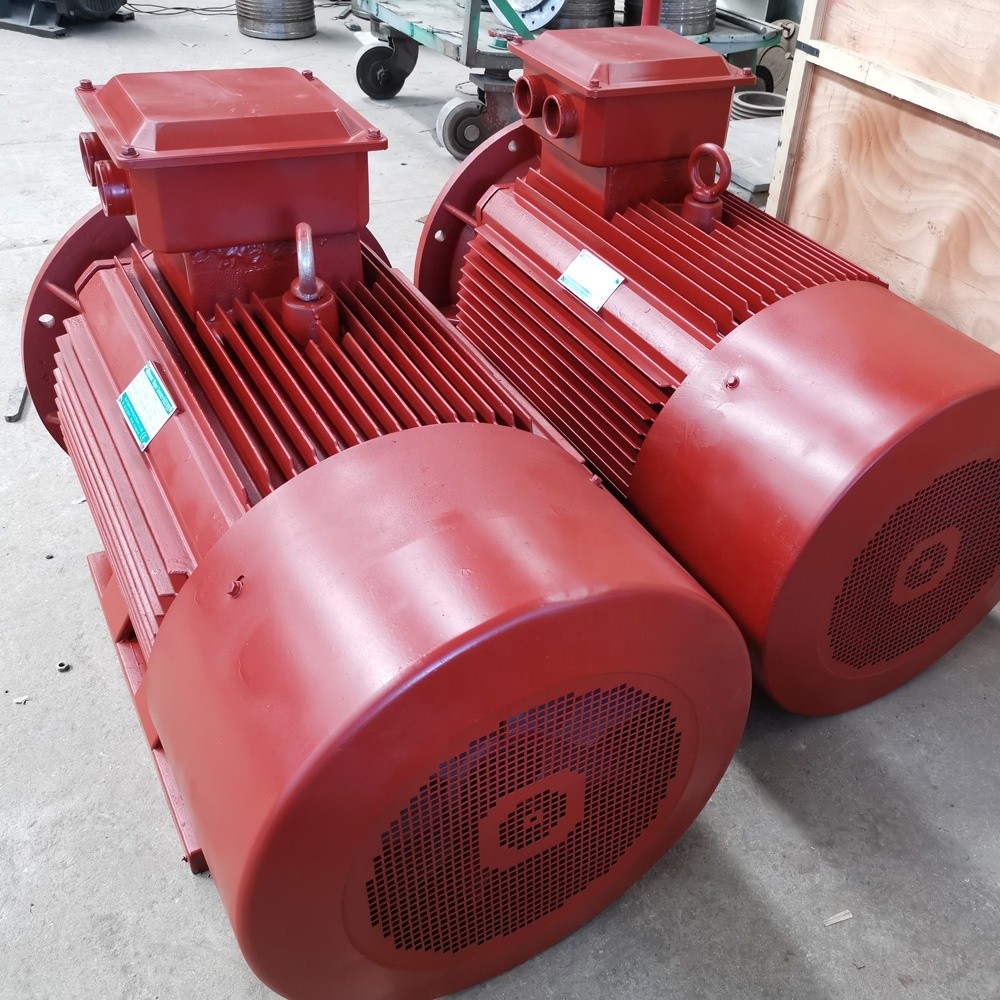

Permanent Magnet Generator, We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 20rpm-6000rpm
Please contact us for more detail informations.
Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Model | Rated power W | Rated voltage V | Rated current A | Rated rotated speed rpm | Startup torque N*M | Efficiency |
| FF-300W/400r/DC28V | 300 | DC28 | 10.7 | 400 | 0.35 | 75% |
| FF-500W/360r/DC56V | 500 | DC56 | 8.93 | 360 | 0.55 | 78% |
| FF-600W/360R/DC56V | 600 | DC56 | 10.7 | 360 | 0.65 | 78% |
| FF-1KW/360r/DC56V | 1K | DC56 | 17.9 | 360 | 1.2 | 80% |
| FF-2KW/300r/DC115V | 2K | DC115 | 17.4 | 300 | 2.0 | 85% |
| FF-3KW/290r/DC115V | 3K | DC115 | 26.1 | 290 | 2.5 | 85% |
| FF-5KW/220r/DC230V | 5K | DC230 | 21.7 | 220 | 4.0 | 88% |
| FF-10KW/200r/DC230V | 10K | DC 230 | 43.5 | 200 | 6.5 | 90% |
| FF-20KW/140r/AC400V | 20K | AC400 | 28.87 | 140 | 20 | 90% |
| FF-50KW/150r/DC690V | 50K | DC690 | 41.8 | 150 | 40 | 90% |
| FF-100KW/140r/AC690V | 100K | AC690 | 83.68 | 140 | 85 | 90% |
