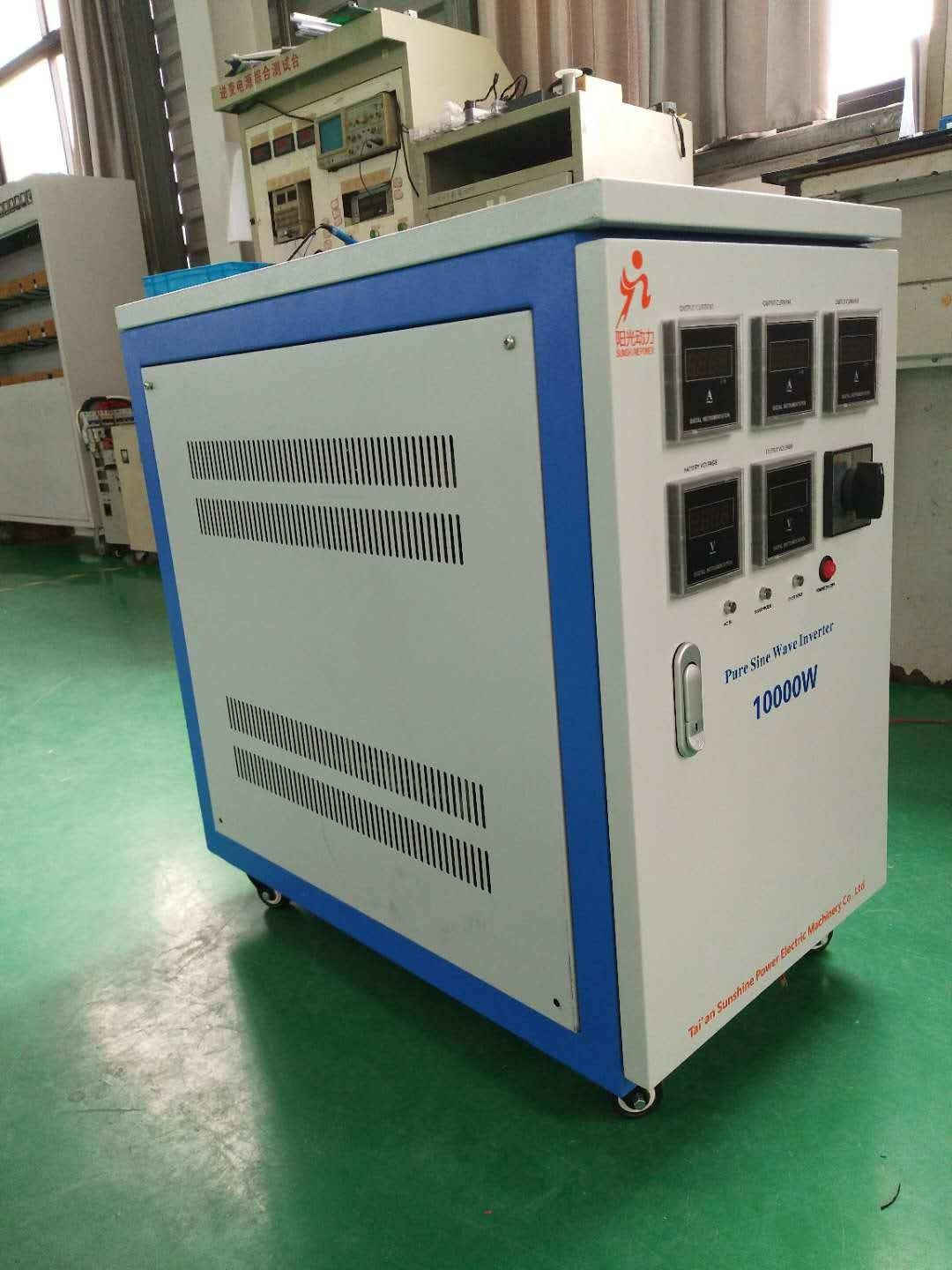

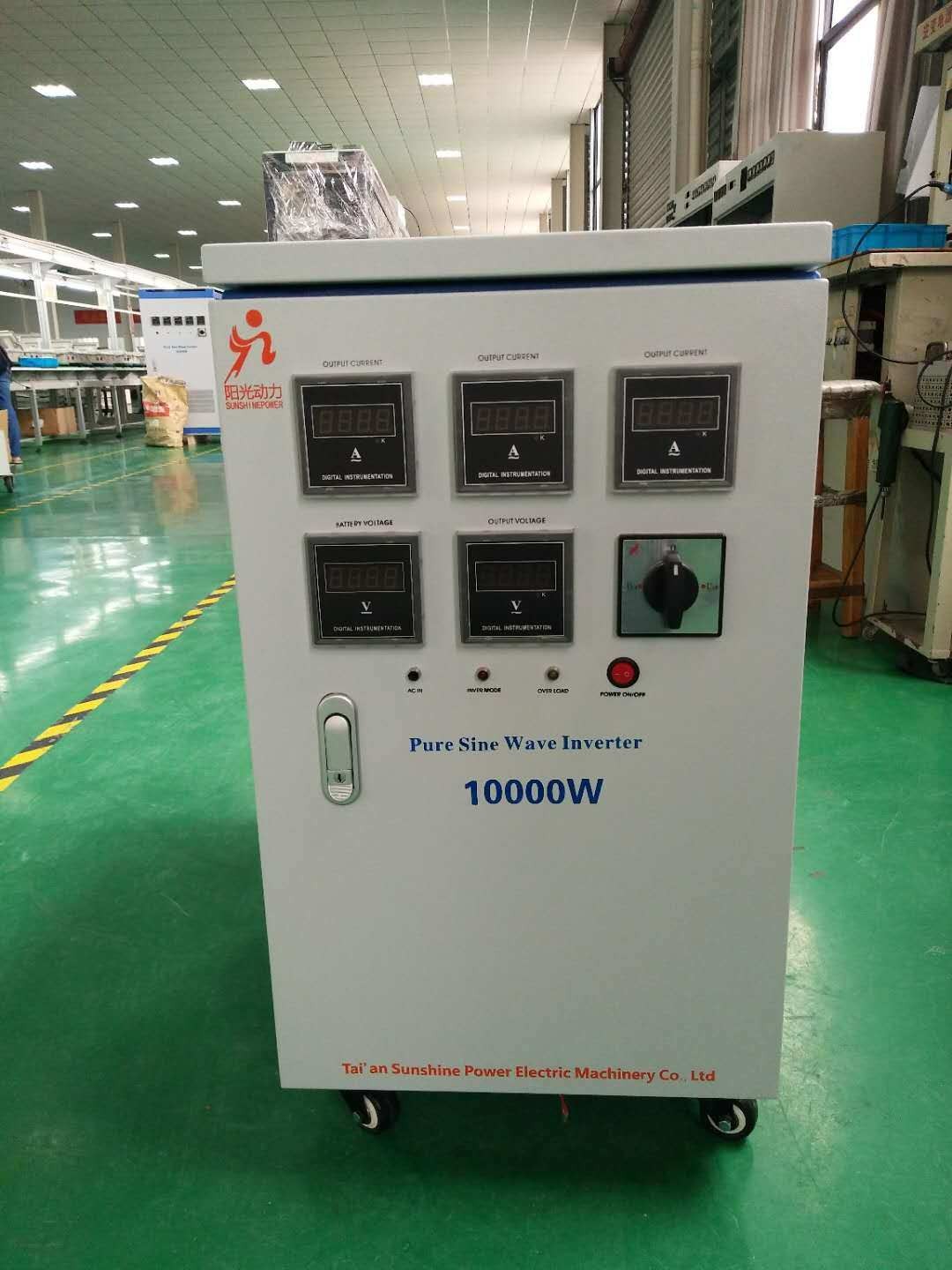

Description
AC60 series power supply is the one that change the electric supply into the required voltage and frequency through power converting circuit.Its main characteristic is to supply pure and stable sine wave power output,low harmonic distortion,high-stability frequency and regulation.It can impersonate many of the world of frequency voltage and output characteristics,and cover the whole industry needs,entirely consistent with the design engineer in research and production and testing of the product testing and life, and a simulated tests to a low, import equipment and the production of electricity
1. High reliability
The main components are imported components, original Mitsubishi IGBT inverter module, drive protection for the original Mitsubishi movement, a perfect drive protection circuit to ensure reliable IGBT work.
2. Dynamic response speed (patented technology)
The use of double closed-loop feedback circuit, the inner current loop to ensure that the nonlinear load waveform distortion; outer ring voltage ring to ensure sudden increase in load pressure drop <1%, the reaction rate is less than 2mS, the control circuit for analog circuits, anti-interference ability, , Some manufacturers use the digital control sampling required by the A / D conversion, calculation, D / A conversion, control process is long, slow response, poor anti-jamming capability and easy to crash.
3. Three-phase power supply can adapt to any unbalanced load
Three-phase power supply can be three-phase system, but also single-phase sub-tune. Three-phase power supply main circuit and control circuit in accordance with the three sets of independent single-phase power supply design. The main circuit is composed of a rectifier, a DC filter, an inverter, an AC filter and a transformer. Three sets of single-phase inverter circuit output mutual difference 120 angle, independent of each other in the transformer primary side, connected to the transformer secondary star, the output of the required three-phase AC. Voltage and waveform control For single-phase output, three independent single-phase controllers are used so that any phase of a three-phase power supply can be used as a single-phase power supply independently and can accommodate any unbalanced load, resulting in a significant increase The power of the load adaptability. Really do a load imbalance.
4. Man-machine interface is good, table source one, high accuracy
Voltage, frequency, current, power / power factor four window measurement display, accuracy of 0.5, the source table integration.
5. Great load capacity
Power components of reasonable application, can withstand 3 times the rated current, and will not cause pressure drop.
6. Excellent stability
Frequency stability ≤ 0.01%, load stability ≤ 1%, the output frequency of oscillation generated by the quartz oscillator, it is very stable and accurate.
1. High reliability
The main components are imported components, original Mitsubishi IGBT inverter module, drive protection for the original Mitsubishi movement, a perfect drive protection circuit to ensure reliable IGBT work.
2. Dynamic response speed (patented technology)
The use of double closed-loop feedback circuit, the inner current loop to ensure that the nonlinear load waveform distortion; outer ring voltage ring to ensure sudden increase in load pressure drop <1%, the reaction rate is less than 2mS, the control circuit for analog circuits, anti-interference ability, , Some manufacturers use the digital control sampling required by the A / D conversion, calculation, D / A conversion, control process is long, slow response, poor anti-jamming capability and easy to crash.
3. Three-phase power supply can adapt to any unbalanced load
Three-phase power supply can be three-phase system, but also single-phase sub-tune. Three-phase power supply main circuit and control circuit in accordance with the three sets of independent single-phase power supply design. The main circuit is composed of a rectifier, a DC filter, an inverter, an AC filter and a transformer. Three sets of single-phase inverter circuit output mutual difference 120 angle, independent of each other in the transformer primary side, connected to the transformer secondary star, the output of the required three-phase AC. Voltage and waveform control For single-phase output, three independent single-phase controllers are used so that any phase of a three-phase power supply can be used as a single-phase power supply independently and can accommodate any unbalanced load, resulting in a significant increase The power of the load adaptability. Really do a load imbalance.
4. Man-machine interface is good, table source one, high accuracy
Voltage, frequency, current, power / power factor four window measurement display, accuracy of 0.5, the source table integration.
5. Great load capacity
Power components of reasonable application, can withstand 3 times the rated current, and will not cause pressure drop.
6. Excellent stability
Frequency stability ≤ 0.01%, load stability ≤ 1%, the output frequency of oscillation generated by the quartz oscillator, it is very stable and accurate.
| Model | 11005 | 11010 | 11030 | 11050 | 11100 | 31150 | 31200 | 313000 | 31450 | 311000 | ||||
| Capacity(VA) | 500 | 1K | 3K | 5K | 10K | 15K | 20K | 30K | 45K | 100K | ||||
| Output limit currency | LOW(A) | 4.2 | 8.4 | 24 | 42 | 84 | 126 | 168 | 250 | 375 | 840 | |||
| HIGH(A) | 2.1 | 4.2 | 12 | 21 | 42 | 63 | 84 | 125 | 188 | 420 | ||||
| Circuit model | IGBT/SPWM pulse width adjustment mode | |||||||||||||
| Output frequency | 50Hz/60Hz 45-65Hz | |||||||||||||
| Load stability | ≤±1% | |||||||||||||
| frequency stability | fixed-frequency≤±0.01%,frequency modulation≤±0.1% | |||||||||||||
| Input voltage | 220V±10% | 380V±10% | ||||||||||||
| Phase | single phase | three phase four wire | ||||||||||||
| Wave distortion | ≤3% | |||||||||||||
| Output voltage | low-grade:0-150V continuous-tuning; high-grade:0 - 300 V continuous-tuning | |||||||||||||
| Reaction time | ≤2mS | |||||||||||||
|
DPI ( dots per inch ) |
frequency meter | 0.1Hz | ||||||||||||
| Voltage meter | 0.1V | |||||||||||||
| Current meter | 0. 1A | |||||||||||||
| Power meter | 0.1W | |||||||||||||
| Ammeter display | Frequency, voltage, current, power or PF 4 number display | |||||||||||||
| Protection function | over voltage, over current, over temperature, over load, short circuit, and automatic alarm | |||||||||||||
| Insulation reactance | 500Vdc 20MΩ | |||||||||||||
| Pressure endurance insulation | 1500Vac/5mA/1min | |||||||||||||
| Cooling model | Compulsive fan cooling | |||||||||||||
| Working temperature | -10ºC-45ºC | |||||||||||||
| Relative humidity | 0-90%(No condensing) | |||||||||||||
| Altitude | 1500meters | |||||||||||||
| Dimension (W×L×H)mm | 410*440*135 | 460*440*220 | 560*350*600 | 660*400*700 | 830*450*1100 | 1160*520*1370 | ||||||||
