Description
Water head: 36 m, flow rate: 100 l / sec
System include turbines, generators, draft tube, butterfly control valve, the
Control box
Three units require the installation of pressure pipe diameter: 300-350mm.

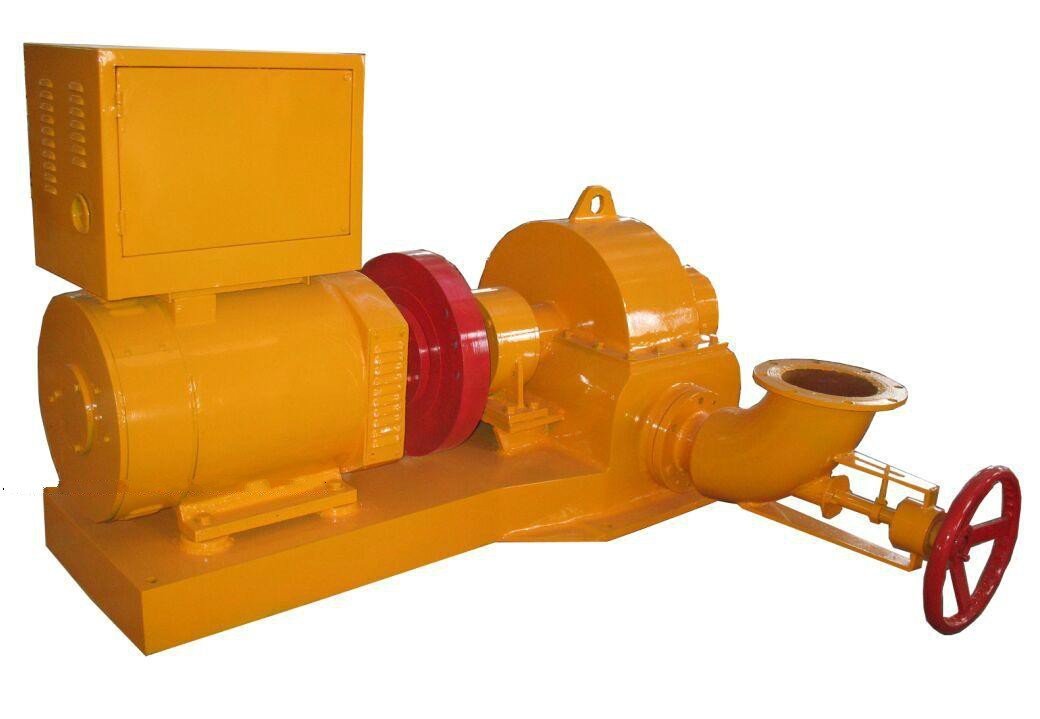

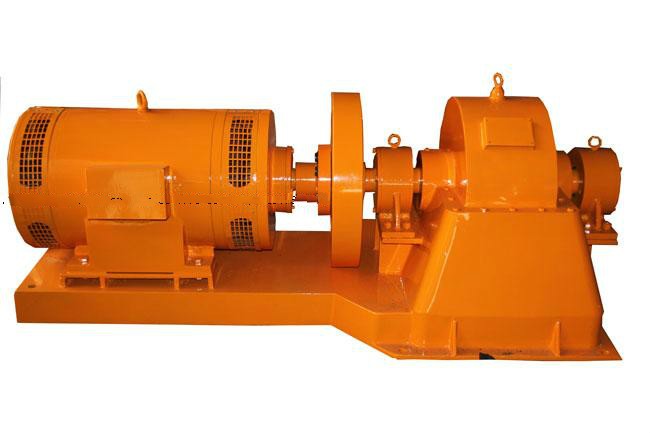

INCLINE JET TURBINE
System include turbines, generators, draft tube, butterfly control valve, the
Control box
Three units require the installation of pressure pipe diameter: 300-350mm.
| Turbine |
|
|
|
|
|
Genertaor |
|
|
|
||
| Model | Water head |
|
Rated speed r/min | Model | powe r KW | Rated voltg e V | Rated current A | Rate d spee d r/mi n | Inlet valve( mm) |
|
|
| flow / | power KW | ||||||||||
| XJ13-W-25/1*8 | 36 | 100 | 30 | 1000 | SF30-6/368 | 30 | 230 | 54 | 100 0 | 200 |
|
|
Power (kW) |
Water head (m) |
Flow Rate (m3/s) |
Speed (r/min) |
Diameter (mm) |
| 10KW | 30-40 | 0.0482-0.05 | 1000 | 200mm |
| 15KW | 40 | 0.05 | 1000 | 200mm |
| 20KW | 40-50 | 0.089 | 1000 | 250mm |
| 30KW | 45 | 0.101 | 1000 | 250mm |
| 40KW | 55 | 0.12 | 1000 | 250-300mm |
| 50KW | 60 | 0.127 | 1000 | 300 |
