Description
We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim

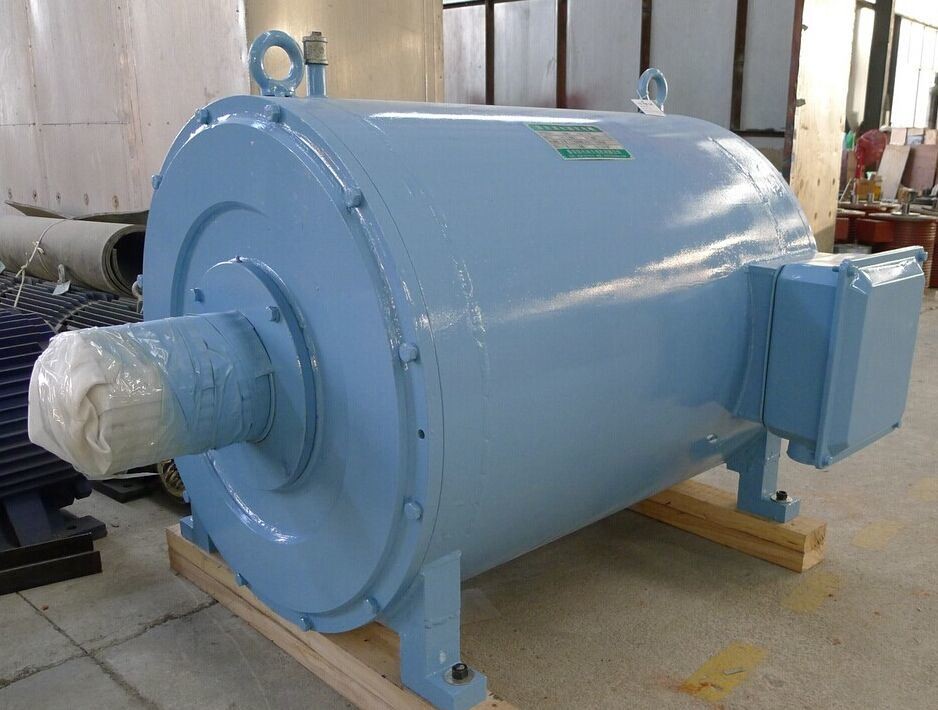

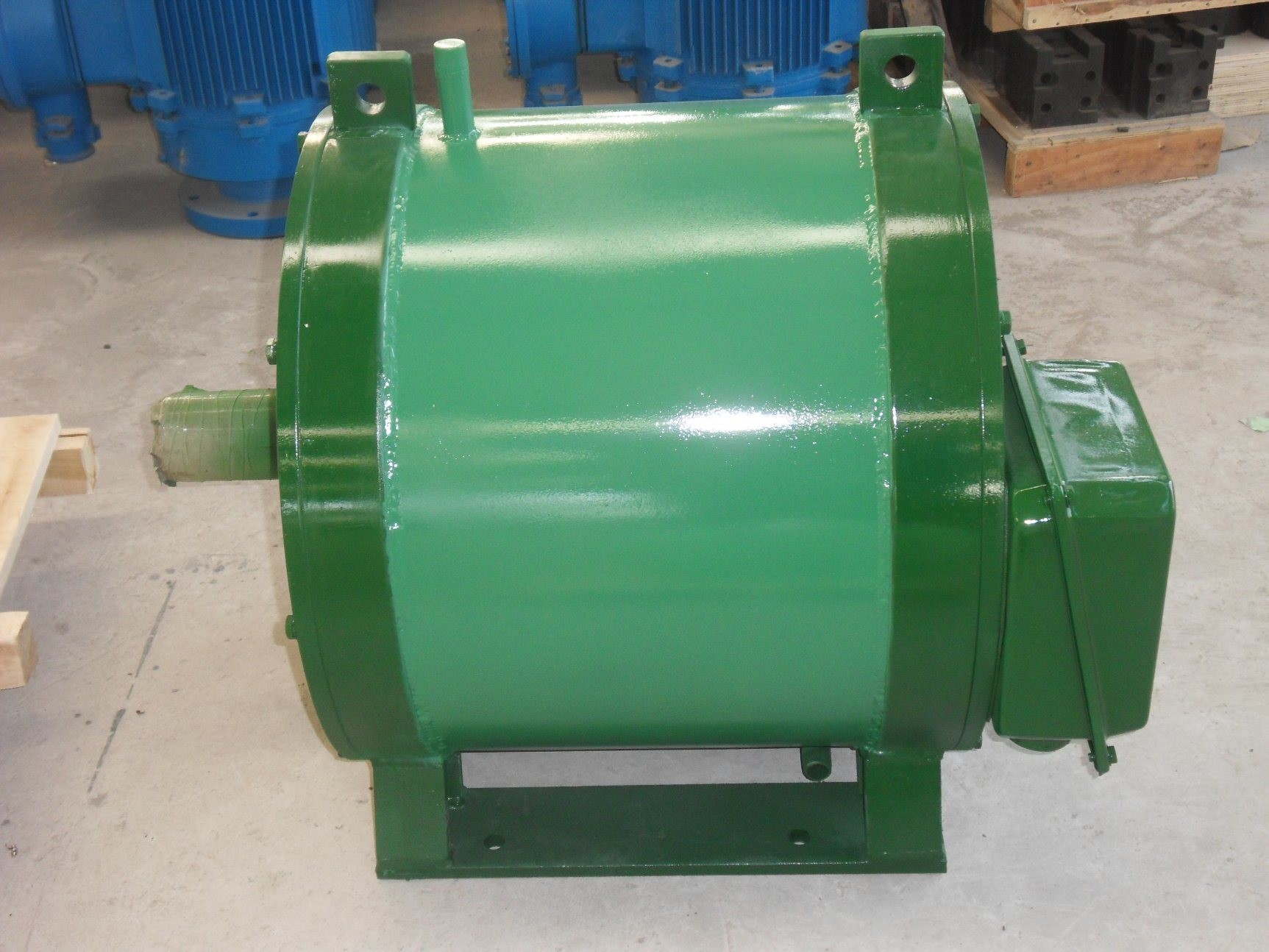

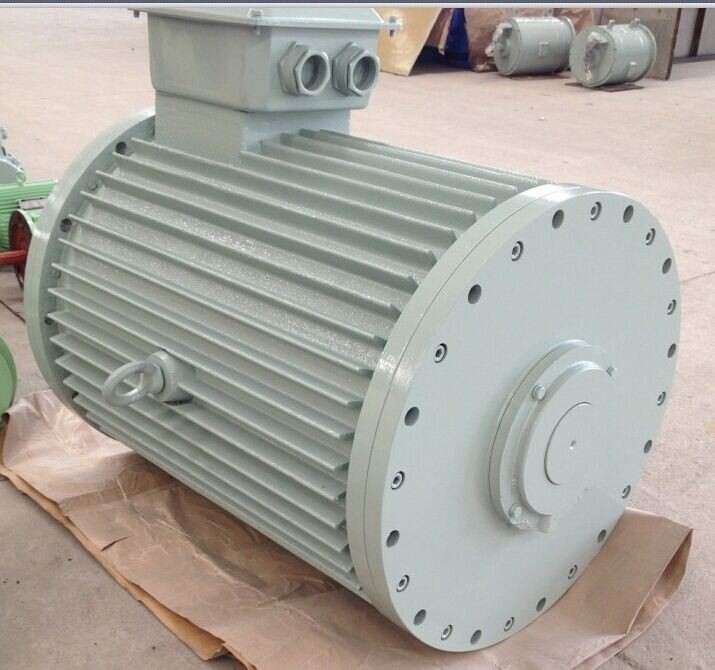

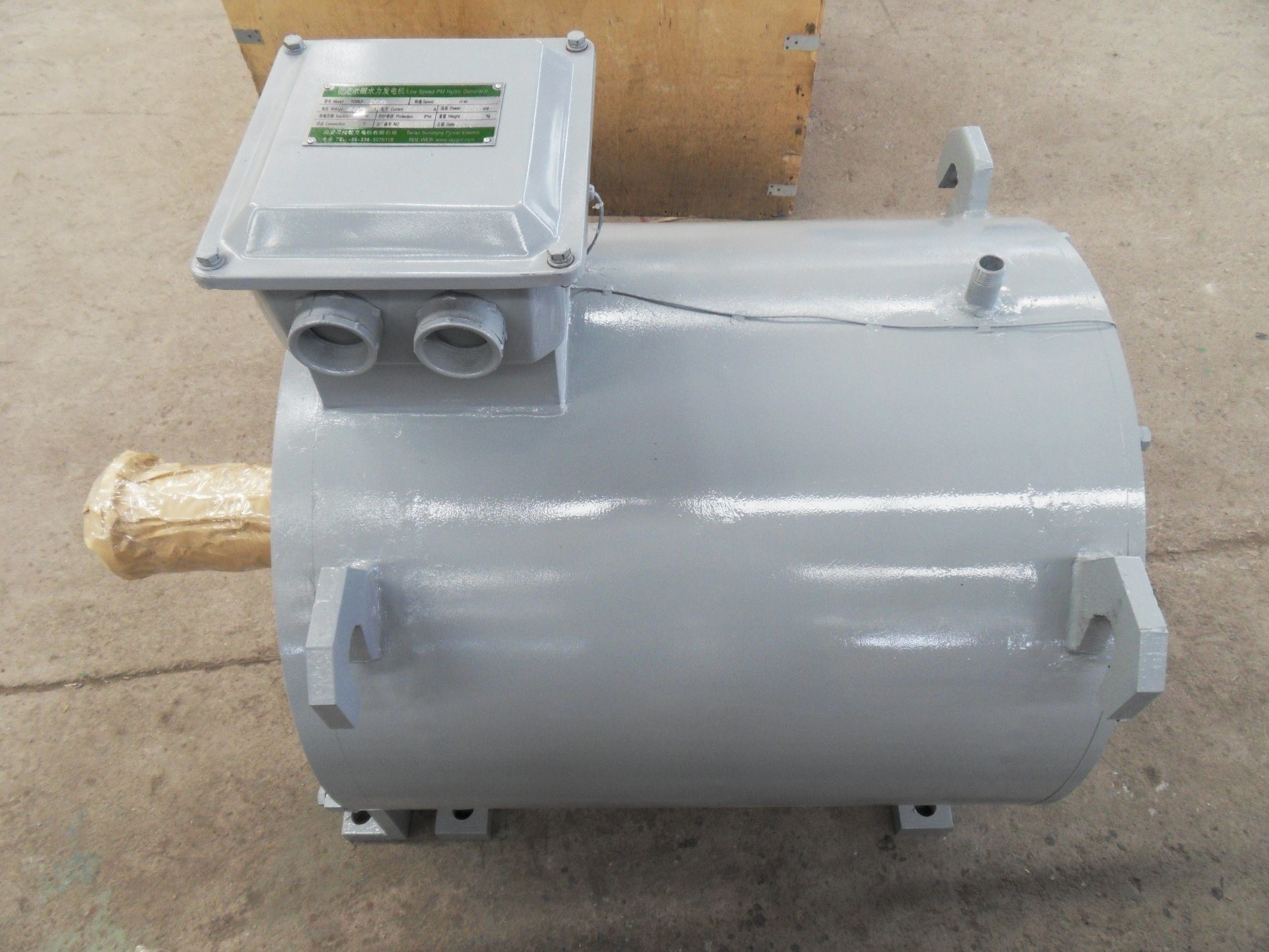

250kw60rpm400V PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 250
2 Rated speed RPM 60
3 Rated output voltage VAC 400
4 Rated current A 363
5 Efficiency at rated speed >92.3%
6 Winding type Y
7 Rated frequency Hz 12
8 Poles 24
9 Insulation H class
10 Rated torque Nm 43110
11 Start torque Nm <850
12 Temperature rise °C 90
13 Max.working temperature °C 130
14 Bearing SKF
15 Weight Kg 4200
Features of Permanent Magnet Generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetim
250kw60rpm400V PMG
Technical Parameters
No. Parameter Units Data
1 Rated output power KW 250
2 Rated speed RPM 60
3 Rated output voltage VAC 400
4 Rated current A 363
5 Efficiency at rated speed >92.3%
6 Winding type Y
7 Rated frequency Hz 12
8 Poles 24
9 Insulation H class
10 Rated torque Nm 43110
11 Start torque Nm <850
12 Temperature rise °C 90
13 Max.working temperature °C 130
14 Bearing SKF
15 Weight Kg 4200
